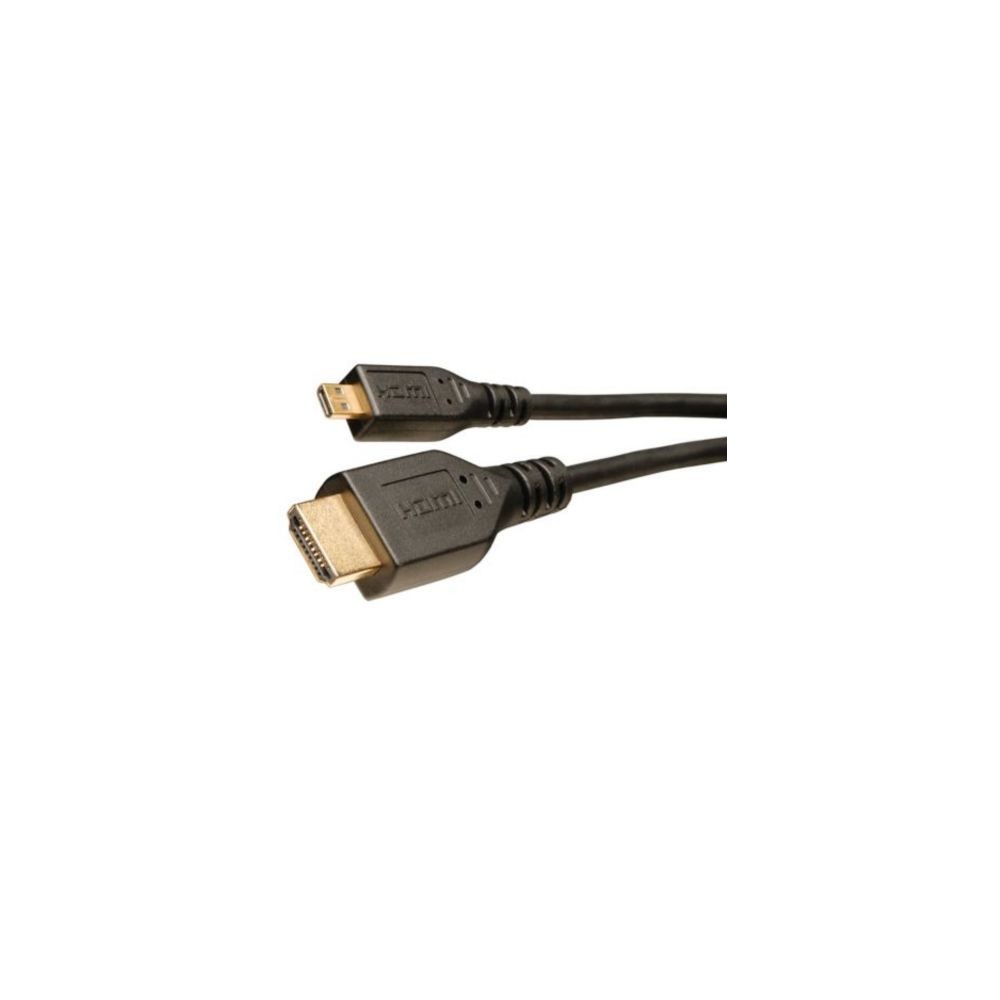

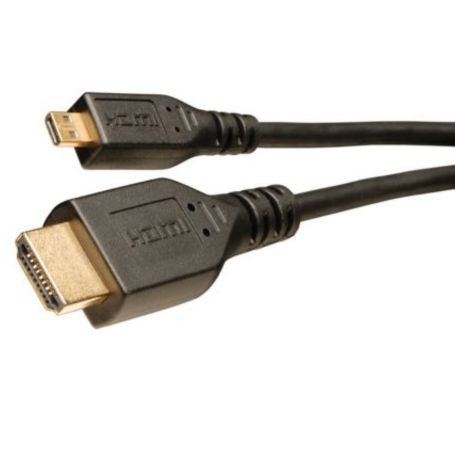

Eaton P570-006-MICRO Tripp Lite HDMI to Micro HDMI Cable with Ethernet 6 ft
The Eaton Tripp Lite P570-006-MICRO is a 6 ft passive HDMI-to-Micro HDMI cable designed to connect portable devices with Micro HDMI output ports to standard HDMI displays. It supports HDMI v1.4 Type D connections and provides bidirectional digital video and audio transmission.
The cable supports resolutions up to 1920 x 1200 (1080p), along with 3D video, Blu-ray content, Ethernet, and digital audio. EDID, CEC, ARC, and HDCP 1.4/2.2 support are also specified by the manufacturer.
Key Features
- 6 ft (1.83 m) HDMI to Micro HDMI cable
- Micro HDMI male to standard HDMI male connectors
- Passive, bidirectional HDMI signal transmission
- Supports up to 1920 x 1200 (1080p) video and 3D
- Supports Ethernet and digital audio over HDMI
Portable Device Connectivity
The Micro HDMI Type D connector is intended for compact devices where a full-size HDMI connector is not practical. Compatible source equipment can include smartphones, cameras, notebooks, and other portable devices with Micro HDMI output. The standard HDMI male connector connects to compatible TVs, monitors, projectors, and other HDMI displays.
Cable Construction
The P570-006-MICRO uses a black PVC jacket with a 4.5 mm outer diameter, 34 AWG conductors, and a 22.5 mm minimum bend radius. The cable has Mylar foil and braid shielding, molded connectors, and gold-plated connectors and contacts. The connectors are straight and do not use a latching or gripping mechanism.
Applications
- Micro HDMI-equipped cameras to HDMI monitors
- Portable notebooks to HDMI displays
- Micro HDMI devices to HDTVs
- Portable equipment to projectors with standard HDMI inputs
- Digital video and audio connections between compatible HDMI devices
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P570-006-MICRO |
| Product Type | HDMI to Micro HDMI Cable |
| Cable Type | Passive |
| Signal Direction | Bidirectional |
| Connector A | Micro HDMI Male |
| Connector B | HDMI Male |
| HDMI Type | HDMI v1.4 / Type D Micro HDMI |
| Maximum Video Resolution | 1920 x 1200 (1080p) |
| 3D Video | Yes |
| Color Depth | 48-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| HDR Support | No |
| HDCP | 1.4; 2.2 |
| Ethernet Support | Yes |
| Audio | Digital audio; ARC |
| EDID | Yes |
| CEC | Yes |
| Cable Length | 6 ft (1.83 m) |
| Cable Outer Diameter | 4.5 mm |
| Wire Gauge | 34 AWG |
| Minimum Bend Radius | 22.5 mm |
| Shielding | Mylar foil and braid |
| Jacket Material | PVC, VW-1 |
| Color | Black |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | 5°F to 140°F (-15°C to 60°C) |
| Operating Humidity | 0–90% RH, non-condensing |
| Storage Humidity | 0–90% RH, non-condensing |
| Compliance | RoHS, REACH |
| UPC | 037332165503 |
| Warranty | Lifetime limited warranty |
Package Contents
1 x Eaton Tripp Lite P570-006-MICRO 6 ft HDMI to Micro HDMI High-Speed Ethernet audio/video cable.
Frequently Asked Questions
What devices is the P570-006-MICRO designed for?
It is designed for devices with a Micro HDMI output, including compatible cameras, smartphones, notebooks, and other portable equipment.
What type of HDMI connector does it use?
One end has a Micro HDMI Type D male connector and the other has a standard HDMI male connector.
Does this cable support 1080p video?
Yes. Eaton specifies maximum video support of 1920 x 1200 (1080p), along with 3D video.
Does it carry audio?
Yes. The cable supports digital audio and ARC when supported by the connected HDMI equipment.
Does it support HDMI Ethernet?
Yes. Ethernet support is specified for the cable.
Is the P570-006-MICRO an active adapter cable?
No. It is a passive, bidirectional cable and does not contain active signal-conversion electronics.
