Detailed Specifications
Eaton P582-010-HD-V2A Tripp Lite DisplayPort 1.2 to HDMI Active Adapter Cable (M/M), 4K 60 Hz, Gripping
Overview

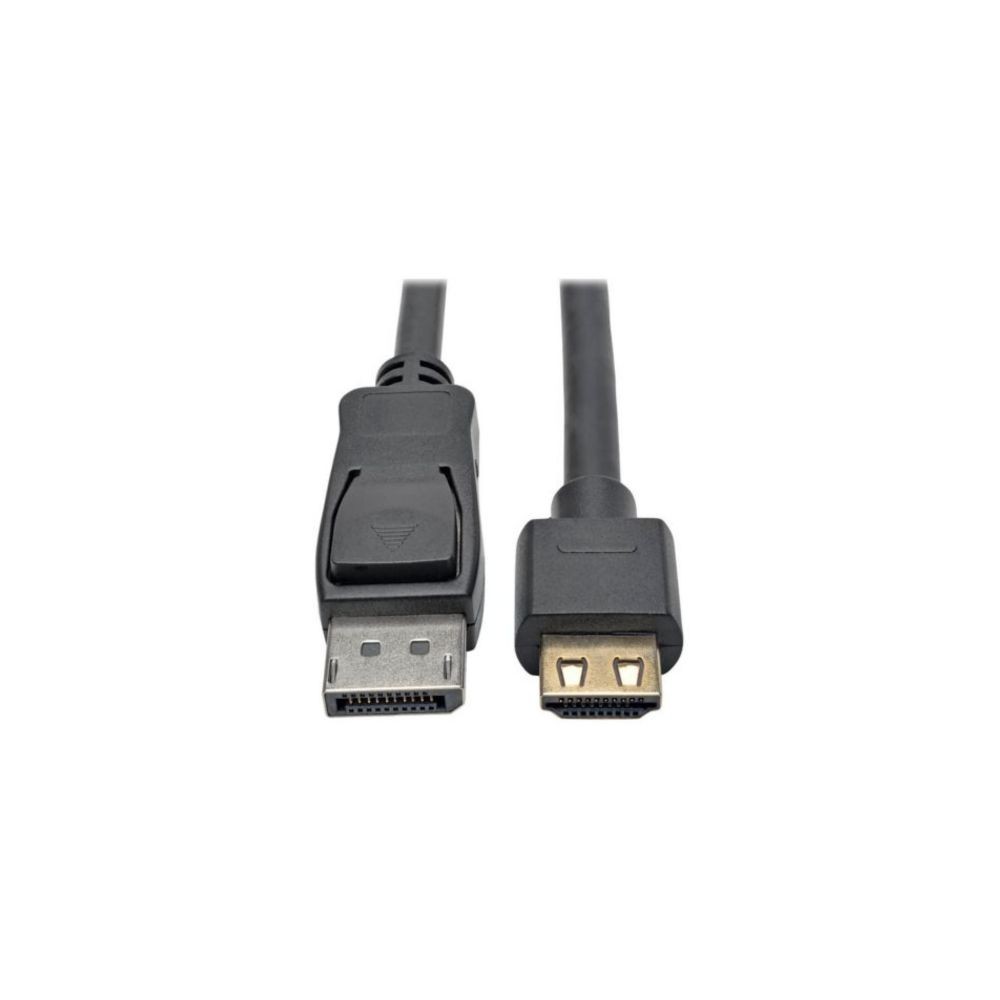

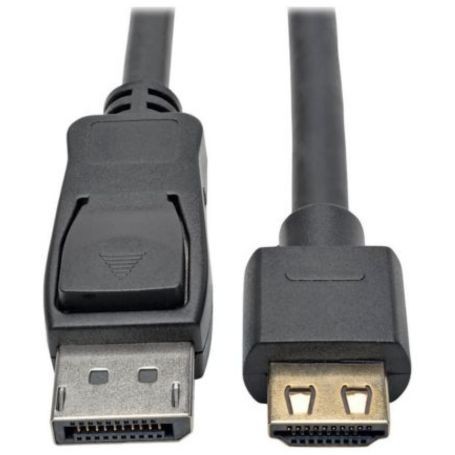

The Eaton P582-010-HD-V2A is a 10-foot active DisplayPort 1.2a-to-HDMI adapter cable with male DisplayPort and male HDMI connectors. It connects DisplayPort-equipped computers or graphics cards to HDMI monitors, projectors, HDTVs, and digital displays.
The active design supports HDMI 2.0 video up to 3840 × 2160 at 60 Hz, along with HDCP 2.2, EDID, and audio when supported by the source. No separate power adapter is required.
Because the adapter is active, it supports both Single-Mode and Dual-Mode (DP++) DisplayPort outputs, including graphics cards that do not provide DP++ output. The high-grip HDMI connector helps maintain a secure connection during deployment.
It is suitable for workstations, control rooms, conference systems, digital signage, and other 4K display deployments. It is not the same as the passive P582-010, which is limited to Full HD and requires a DP++ source.
Key Features
- Supports 4K UHD video at 3840 × 2160 and 60 Hz
- Active design supports Single-Mode and DP++ outputs
- HDMI 2.0 interface supports high-resolution displays
- HDCP 2.2 and EDID support enable protected video output
- High-grip HDMI plug helps prevent accidental disconnection
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P582-010-HD-V2A |
| Product Type | DisplayPort to HDMI Active Adapter Cable |
| Cable Length | 10 ft (3.05 m) |
| Input Connector | DisplayPort Male |
| Output Connector | HDMI Male |
| DisplayPort Version | 1.2a |
| HDMI Version | HDMI 2.0 |
| Maximum Resolution | 3840 × 2160 |
| Maximum Refresh Rate | 60 Hz |
| Adapter Type | Active |
| HDCP | HDCP 2.2 |
| EDID | Supported |
| Audio | Supported, source-dependent |
| Color | Black |
