Detailed Specifications
Eaton P569-003-SLIM Tripp Lite Slim High Speed HDMI Cable with Ethernet
Overview

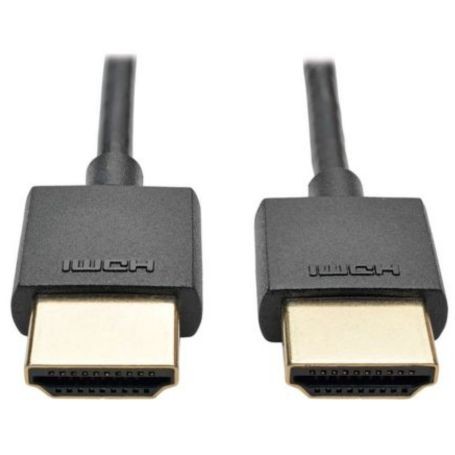

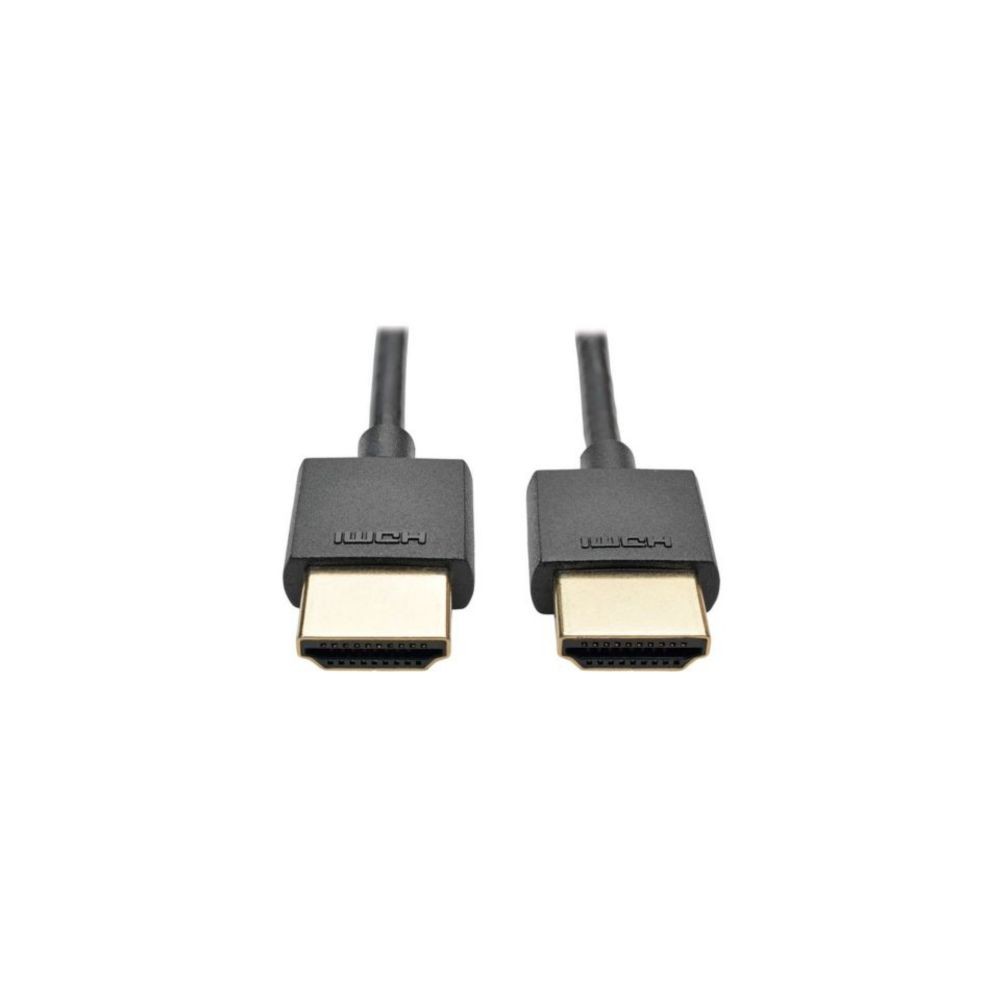

Eaton Tripp Lite P569-003-SLIM is a 3-ft passive, bidirectional HDMI cable with male-to-male connectors. It carries digital video, digital audio, and Ethernet between compatible HDMI source and display equipment.
The cable supports resolutions up to 3840 × 2160 at 60 Hz and data transfer rates up to 18 Gbps. It also supports 3D video, Audio Return Channel, CEC, EDID, and HDMI Ethernet functionality.
Its slim construction is intended for installations requiring easier routing around corners and through cable-management panels. Typical applications include digital signage, monitors, projectors, conference-room AV, and home-theater equipment.
Key Features
- Supports 4K video at 60 Hz for UHD display systems
- 18 Gbps bandwidth supports high-speed HDMI applications
- Slim design simplifies routing through tight installation spaces
- Gold-plated connectors support reliable signal transfer
- Ethernet and ARC support reduce additional cabling requirements
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P569-003-SLIM |
| Product Type | Slim High-Speed HDMI Cable |
| Cable Length | 3 ft (0.91 m) |
| Cable Type | Passive |
| Signal Transmission | Bidirectional |
| Connector A | HDMI Male |
| Connector B | HDMI Male |
| Maximum Data Transfer Rate | 18 Gbps |
| Maximum Resolution | 3840 × 2160 (4K) @ 60 Hz |
| Chroma Subsampling | 4:4:4 |
| HDCP Specification | 1.4 |
| Conductor Gauge | 36 AWG |
| Shielding | Foil and braid |
| Jacket Material | PVC |
