Detailed Specifications

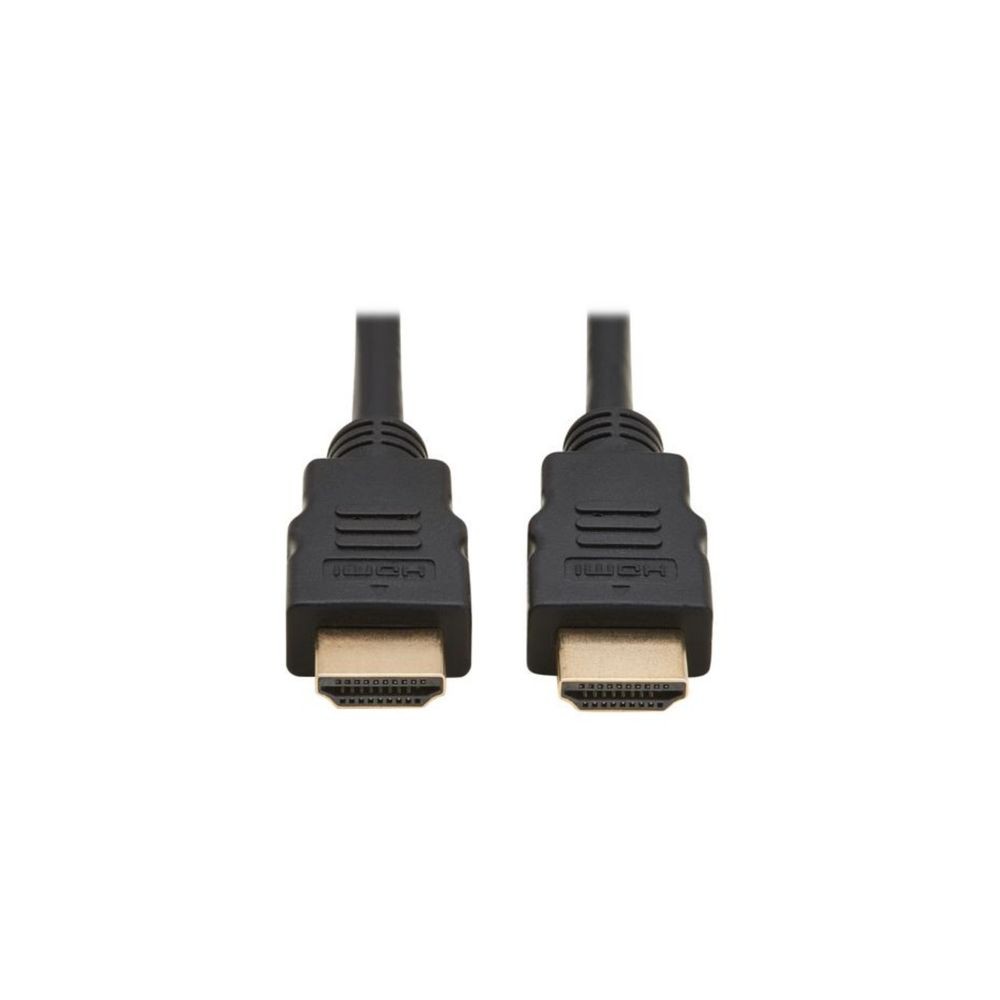

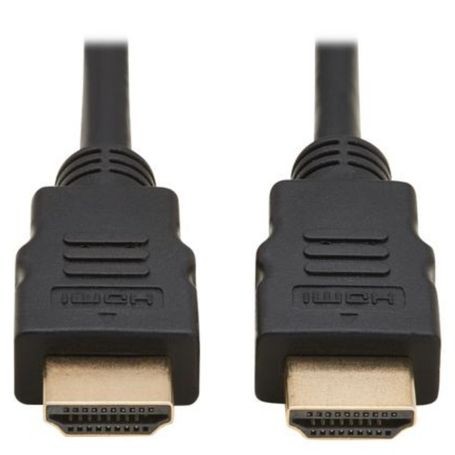

Eaton P568-035 Tripp Lite 35ft High Speed HDMI Digital Video Cable
Overview :
The Eaton Tripp Lite Series P568-035 is a 35-foot High-Speed HDMI cable engineered for AV integrators, IT technicians, and commercial installers managing long-distance multimedia runs across auditoriums, large lecture halls, and extensive digital signage networks. It solves extended-distance multimedia connection challenges by delivering pristine, uncompressed digital video and multi-channel digital audio between media sources, projectors, and large-format displays across long cable spans.
It supports crystal-clear video resolutions up to 4K x 2K (3840 x 2160) at 30Hz, along with 3D video, Ethernet data channel integration (HEC), and Audio Return Channel (ARC). Heavy-duty foil-and-braid shielding blocks EMI/RFI interference across the extended 35-foot run, while gold-plated connectors ensure maximum corrosion resistance and flawless signal transfer.
Optimized for deployment in corporate auditoriums, university lecture halls, large training facilities, and commercial AV control rooms.
Fully compatible with standard HDMI equipment, Blu-ray players, media servers, projectors, and high-definition displays. Do not use in outdoor environments or wet locations, as it features a standard indoor PVC jacket.
Key Features :
Extended 35-foot length bridges long distances in large auditoriums and lecture halls
Supports Ultra HD 4K x 2K video resolutions up to 3840 x 2160 at 30Hz
Integrated Ethernet data channel allows internet-ready AV devices to share a connection
Audio Return Channel (ARC) simplifies audio setups between display and receiver
Heavy-duty foil-and-braid shielding prevents electromagnetic interference across long runs
Specifications :
| Feature | Specification |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | P568-035 |
| Product Type | High-Speed HDMI Cable with Ethernet |
| HDMI Version | High Speed (HDMI 1.4 compatible) |
| Cable Length | 35 ft (10.67 m) |
| Max Resolution | 4K x 2K (3840 x 2160 @ 30Hz), 1080p |
| Bandwidth / Data Rate | Up to 10.2 Gbps |
| Shielding Type | Foil and Braid Shielding |
| Connector Type | HDMI Male to HDMI Male |
| Jacket Material | PVC |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Certifications | RoHS, REACH, UL Listed |
