Detailed Specifications

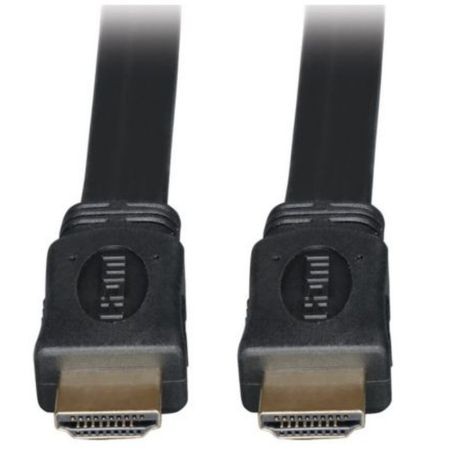

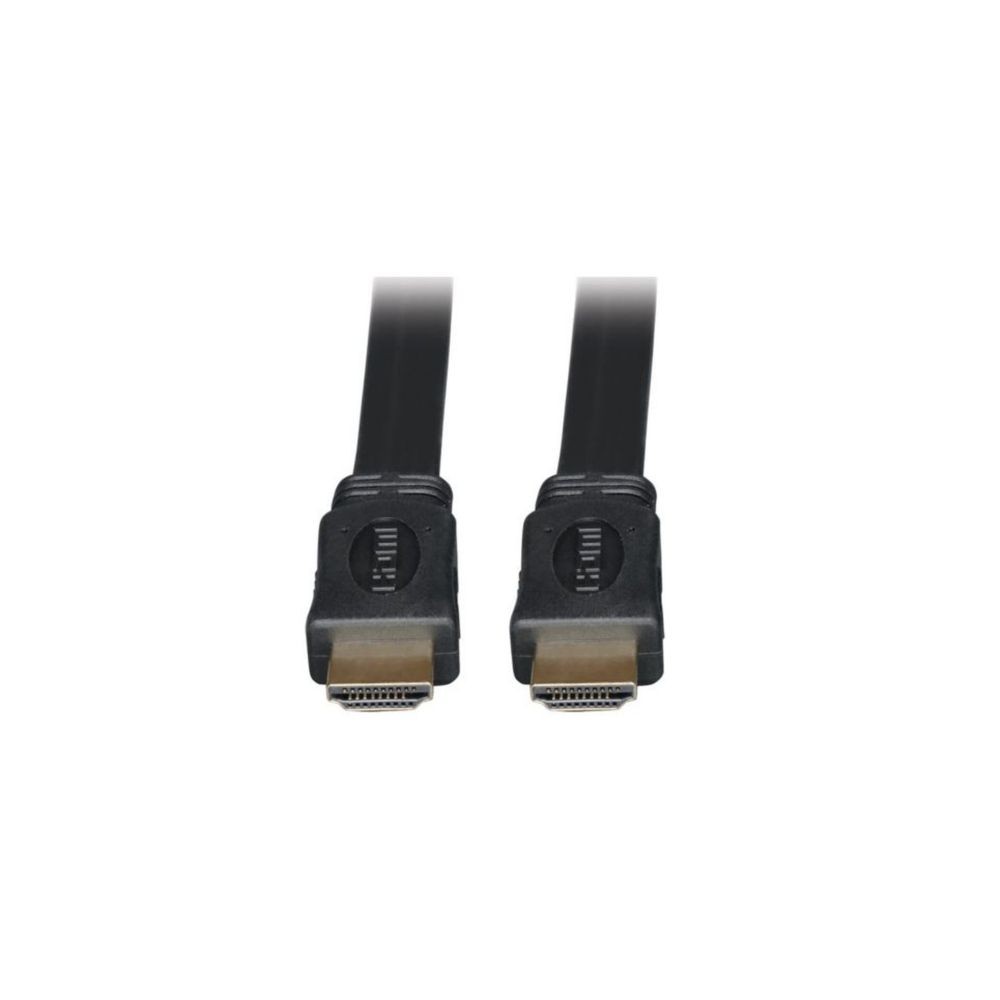

Eaton P568-003-FL Tripp Lite 3ft High Speed HDMI Digital Video Cable
Overview :
The Eaton Tripp Lite Series P568-003-FL is a 3-foot High-Speed Flexible HDMI cable engineered for IT technicians, audio-visual installers, and enterprise workstation setups where tight spaces and acute bending angles are required. It solves installation challenges in cramped server racks, behind wall-mounted flat-screen displays, and within compact media consoles by utilizing an ultra-flexible jacket and bendable strain relief that prevents connector stress and cable damage.
It supports crystal-clear video resolutions up to 4K x 2K (3840 x 2160) at 30Hz, along with 3D video, Ethernet data channel integration (HEC), and Audio Return Channel (ARC). Premium foil-and-braid shielding blocks EMI/RFI interference, while gold-plated connectors ensure maximum corrosion resistance and flawless signal transfer across daily use.
Optimized for deployment in cramped equipment racks, wall-mounted display setups, corporate office desks, and compact home entertainment centers.
Fully compatible with standard HDMI equipment, Blu-ray players, gaming consoles, 4K monitors, and AV receivers. Do not use in outdoor environments or wet locations, as it features a standard indoor PVC jacket.
Key Features :
Ultra-flexible design and slim bend radius facilitate routing in tight spaces and cramped enclosures
Supports Ultra HD 4K x 2K video resolutions up to 3840 x 2160 at 30Hz
Integrated Ethernet data channel allows internet-ready AV devices to share a connection
Audio Return Channel (ARC) simplifies audio setups between TV and receiver
Gold-plated connectors and contacts provide superior conductivity and durability
Specifications :
| Feature | Specification |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | P568-003-FL |
| Product Type | High-Speed Flexible HDMI Cable with Ethernet |
| HDMI Version | High Speed (HDMI 1.4 compatible) |
| Cable Length | 3 ft (0.91 m) |
| Max Resolution | 4K x 2K (3840 x 2160 @ 30Hz), 1080p |
| Bandwidth / Data Rate | Up to 10.2 Gbps |
| Shielding Type | Foil and Braid Shielding |
| Connector Type | HDMI Male to HDMI Male |
| Jacket Material | Ultra-Flexible PVC |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Certifications | RoHS, REACH, UL Listed |
