Detailed Specifications

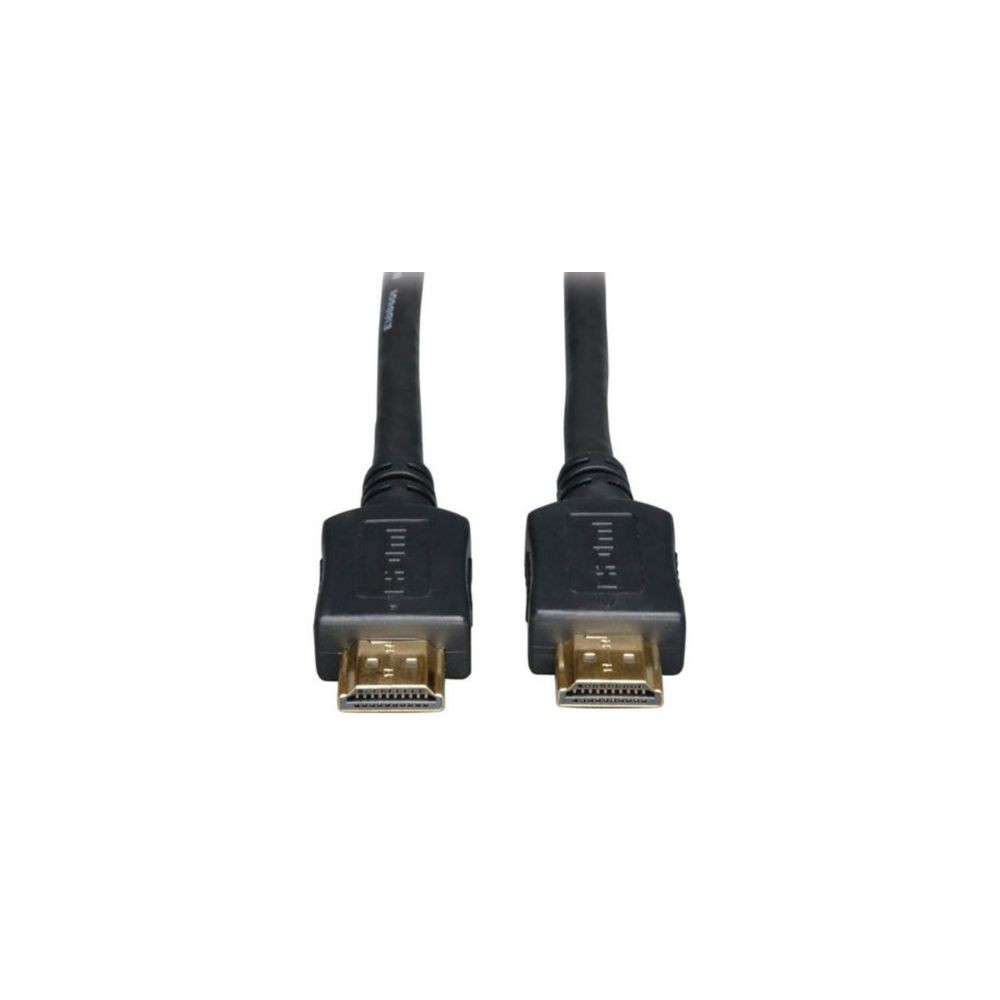

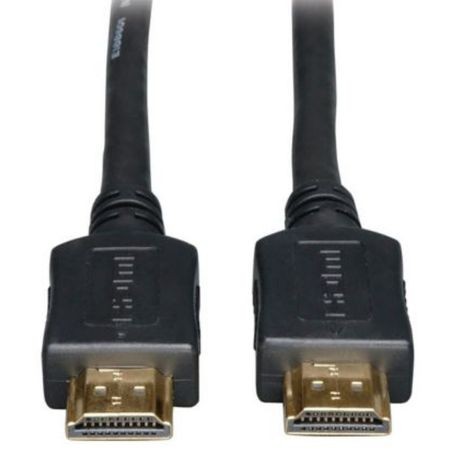

Eaton P568-003 Tripp Lite 3ft High Speed HDMI Digital Video Cable
Overview
The Eaton Tripp Lite P568-003 is a 3 ft passive HDMI cable with HDMI-A male connectors at both ends. It provides bidirectional digital audio/video connectivity between compatible HDMI source and display equipment.
The cable supports UHD 4K resolution up to 3840 × 2160 at 30 Hz, 48-bit Deep Color, 4:4:4 chroma, 3D video, ARC, EDID, and CEC. Gold-plated connectors and double shielding support signal integrity and interference protection.
It is suitable for conference rooms, classrooms, offices, digital signage, displays, projectors, and other HDMI installations. It should not be selected where verified 4K at 60 Hz is required; Eaton specifies this SKU for 4K at 30 Hz.
Key Features
- 3 ft HDMI cable supports 4K video at 30 Hz
- Passive bidirectional design supports flexible A/V connections
- Double shielding helps reduce EMI/RFI interference
- Gold-plated connectors support reliable signal transfer
- 6.0 mm cable diameter supports controlled cable routing
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-003 |
| Product Type | High-Speed HDMI Cable |
| Cable Type | Passive |
| Cable Length | 3 ft (0.91 m) |
| Connector 1 | HDMI-A Male |
| Connector 2 | HDMI-A Male |
| Signal Transmission | Bidirectional |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| HDCP Specification | 1.4 |
| 3D Video | Supported |
| Audio | ARC |
| EDID | Supported |
| CEC | Supported |
| Chroma Subsampling | 4:4:4 |
| Color Depth | 48-bit Deep Color |
| Shielding | Double Shielded |
| Connector Plating | Gold |
| Cable Outer Diameter | 6.0 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Jacket Color | Black |
| Minimum Bend Radius | 30 mm |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Operating Humidity | 0% to 90% RH, Non-Condensing |
| Compliance | RoHS, REACH |
