Detailed Specifications

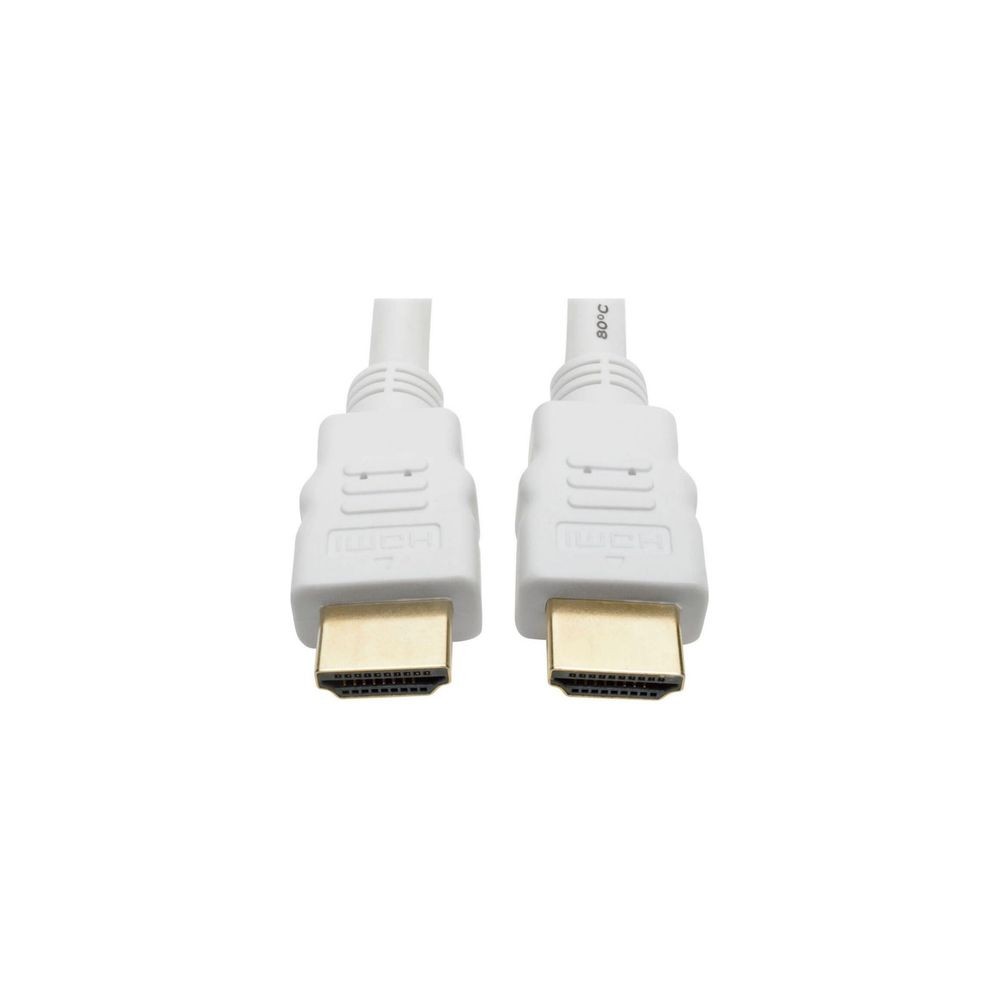

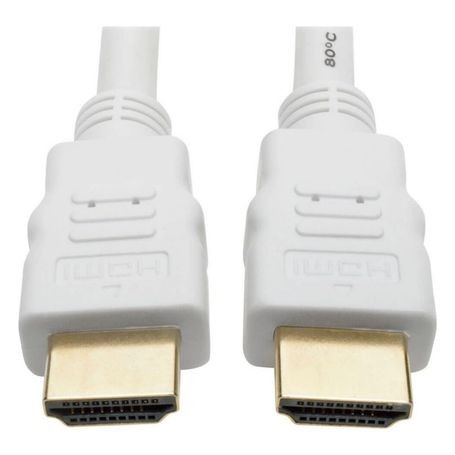

Eaton P568-025-WH Tripp Lite 25ft High Speed HDMI Digital Video Cable White
Overview
The Eaton Tripp Lite P568-025-WH is a 25 ft high-speed HDMI cable with HDMI male-to-male connectors and a white jacket. It is designed for digital audio/video connections between HDMI-enabled source devices and displays.
The cable supports data transfer speeds up to 18 Gbps and UHD 4K × 2K resolution up to 3840 × 2160 at 30 Hz. It uses 30 AWG conductors, premium foil-and-braid shielding, gold-plated connectors, and HDCP 2.2 compliance.
It is suitable for digital signage, video presentations, point-of-sale displays, classrooms, monitors, projectors, televisions, and other HDMI installations. Eaton notes that HDMI runs exceeding 16 ft may require a signal booster to maintain adequate signal strength, so the 25 ft passive cable should be evaluated accordingly.
Key Features
- 25 ft HDMI cable supports 4K video at 30 Hz
- 18 Gbps bandwidth supports high-speed HDMI signals
- Foil and braid shielding reduces EMI/RFI interference
- Gold-plated white connectors support reliable signal transfer
- 30 AWG construction supports flexible cable installation
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-025-WH |
| Product Type | High-Speed HDMI Cable |
| Cable Type | Passive |
| Cable Length | 25 ft (7.62 m) |
| Connector 1 | HDMI Male |
| Connector 2 | HDMI Male |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| Data Transfer Rate | Up to 18 Gbps |
| HDCP | 2.2 |
| Conductor Gauge | 30 AWG |
| Shielding | Premium Foil and Braid |
| Connector Plating | Gold |
| Jacket Material | PVC |
| Jacket Color | White |
| Cable Construction | Molded |
| Signal Transmission | Digital Video and Audio |
| Strain Relief | Integral |
| Compliance | RoHS |
