Detailed Specifications

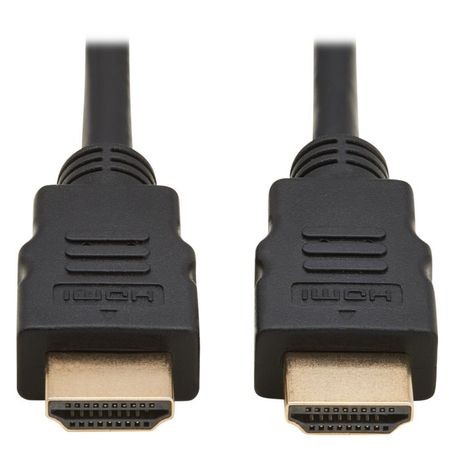

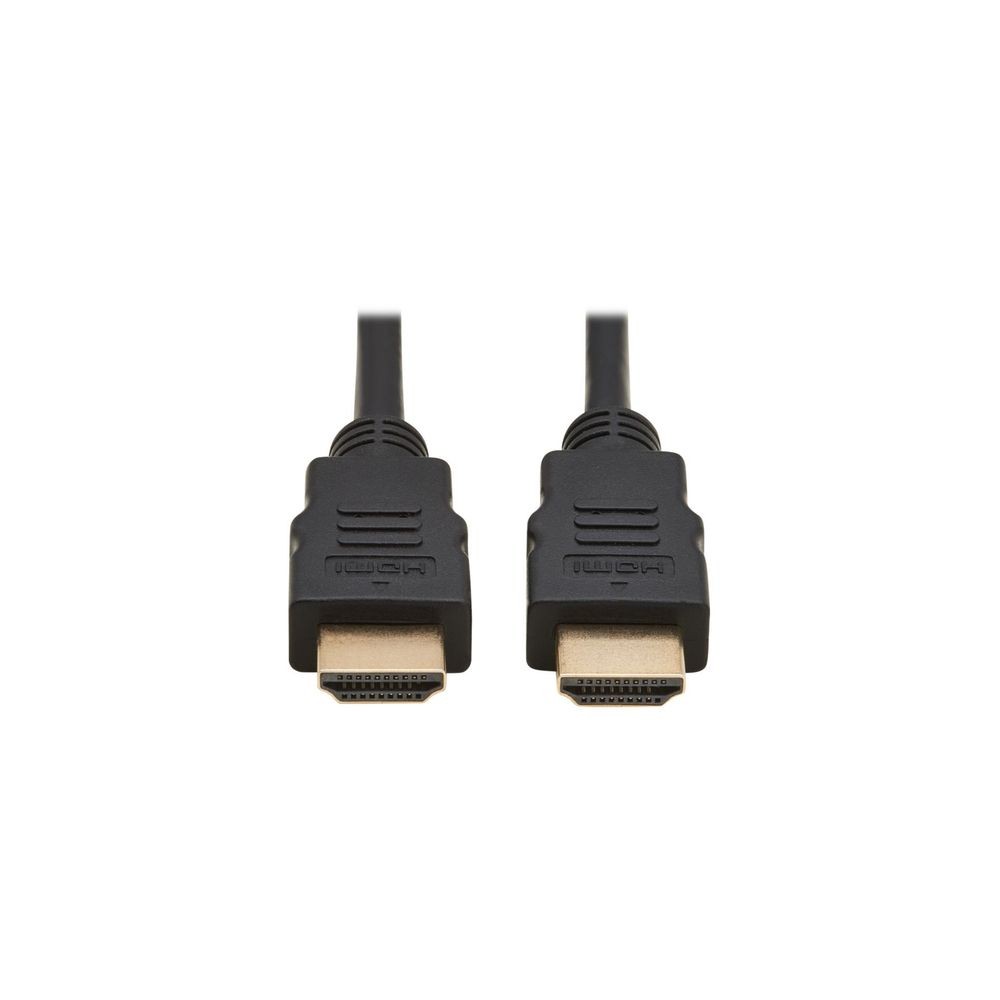

Eaton P568-030 Tripp Lite 30ft High Speed HDMI Digital Video Cable Black
Overview
The Eaton Tripp Lite P568-030 is a 30 ft passive HDMI cable with HDMI male-to-male connectors. It provides bidirectional digital audio/video connectivity for displays, projectors, computers, Blu-ray players, A/V receivers, and other HDMI equipment.
The cable supports resolutions up to 3840 × 2160 at 30 Hz and HDCP 1.4/2.2. It uses gold-plated HDMI connectors and double shielding. Eaton specifies 9.14 m cable length and a 36.5 mm minimum bend radius.
It is suitable for conference rooms, classrooms, digital signage, home theater, and other professional A/V deployments. For cable runs exceeding 16 ft, Eaton recommends evaluating a compatible signal booster to maintain adequate signal strength.
Key Features
- 30 ft HDMI cable supports 4K video at 30 Hz
- Passive bidirectional design supports flexible A/V connections
- Gold-plated connectors resist corrosion during service
- Double shielding helps reduce signal interference
- 36.5 mm bend radius supports controlled cable routing
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-030 |
| Product Type | High-Speed HDMI Cable |
| Cable Type | Passive |
| Cable Length | 30 ft (9.14 m) |
| Connector 1 | HDMI Male |
| Connector 2 | HDMI Male |
| Signal Transmission | Bidirectional |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| HDCP Specification | 1.4 / 2.2 |
| 3D Video | Supported |
| EDID | Compatible |
| CEC | Supported |
| Connector Plating | Gold |
| Shielding | Double Shielded |
| Cable Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Jacket Color | Black |
| Cable Outer Diameter | 7.3 mm |
| Minimum Bend Radius | 36.5 mm |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Operating Humidity | 0% to 90% RH, Non-Condensing |
| Compliance | RoHS, REACH |
