Detailed Specifications

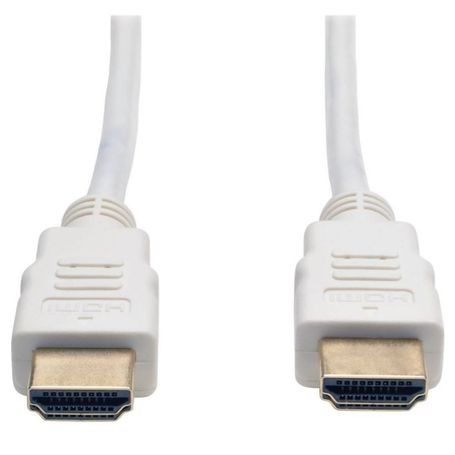

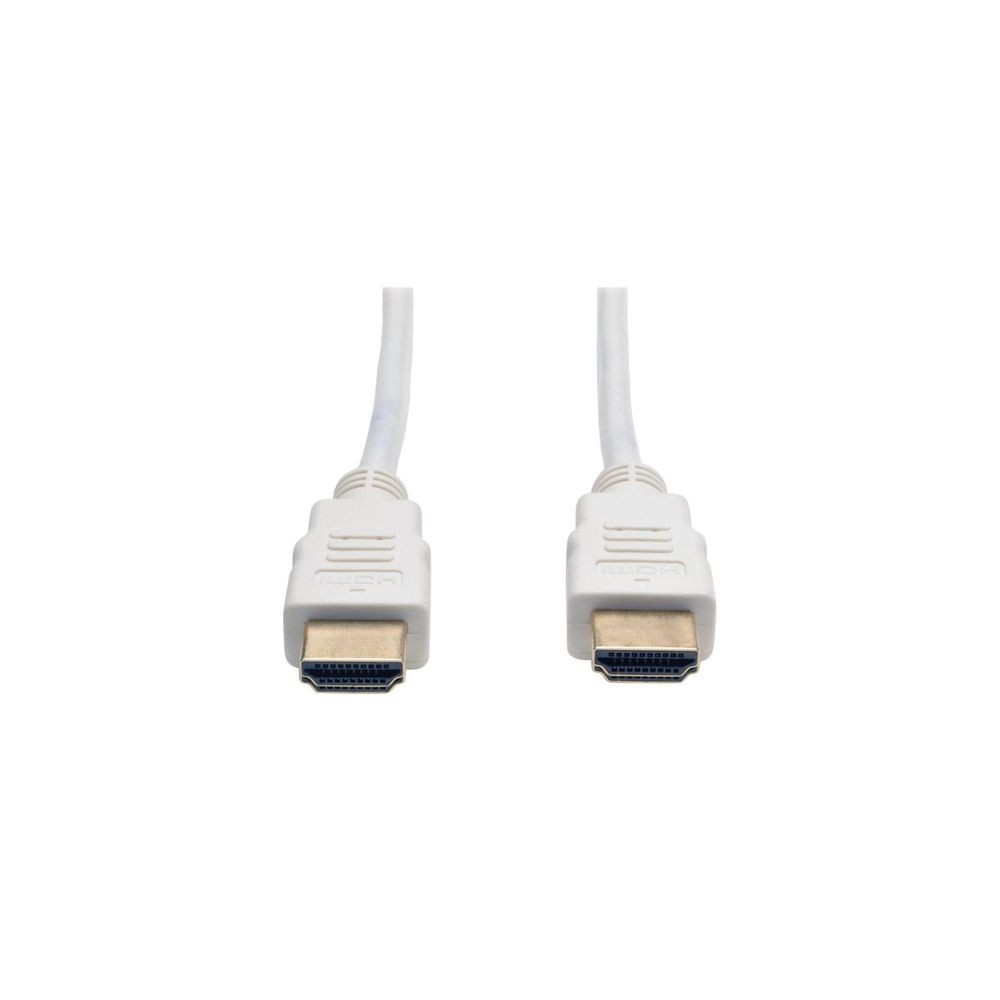

Eaton P568-006-WH Tripp Lite 6ft High Speed HDMI Cable
Overview
The Eaton Tripp Lite P568-006-WH is a 6 ft passive HDMI cable with HDMI male-to-male connectors and a white finish. It is designed for digital audio/video connections between compatible HDMI source and display equipment.
The cable supports UHD 4K resolution up to 3840 × 2160 at 30 Hz, bidirectional signal transmission, EDID, CEC, 3D video, and 4:4:4 chroma. Eaton specifies gold-plated connectors and shielding for the cable.
It is suitable for conference rooms, classrooms, offices, displays, projectors, and other standard HDMI installations. It should not be selected where 4K at 60 Hz is required; Eaton specifies this model for 4K at 30 Hz.
Key Features
- 6 ft HDMI cable supports 4K video at 30 Hz
- White jacket supports visual cable identification
- Double shielding helps reduce EMI/RFI interference
- Gold-plated connectors support reliable signal transfer
- Passive bidirectional design supports flexible A/V connections
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-006-WH |
| Product Type | High-Speed HDMI Cable |
| Cable Type | Passive |
| Cable Length | 6 ft (1.83 m) |
| Connector 1 | HDMI-A Male |
| Connector 2 | HDMI-A Male |
| Signal Transmission | Bidirectional |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| HDCP Specification | 1.3 |
| 3D Video | Supported |
| Chroma Subsampling | 4:4:4 |
| Color Depth | 24-bit True Color |
| Shielding | Double Shielded |
| Connector Plating | Gold |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Jacket Color | White |
| Minimum Bend Radius | 55 mm |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Operating Humidity | 10% to 85% RH, Non-Condensing |
| Compliance | RoHS, REACH |
