Detailed Specifications

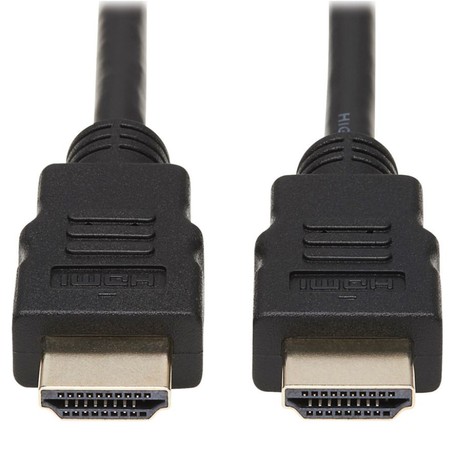

Eaton P568-010 Tripp Lite 10ft High Speed HDMI Digital Video Cable
Overview

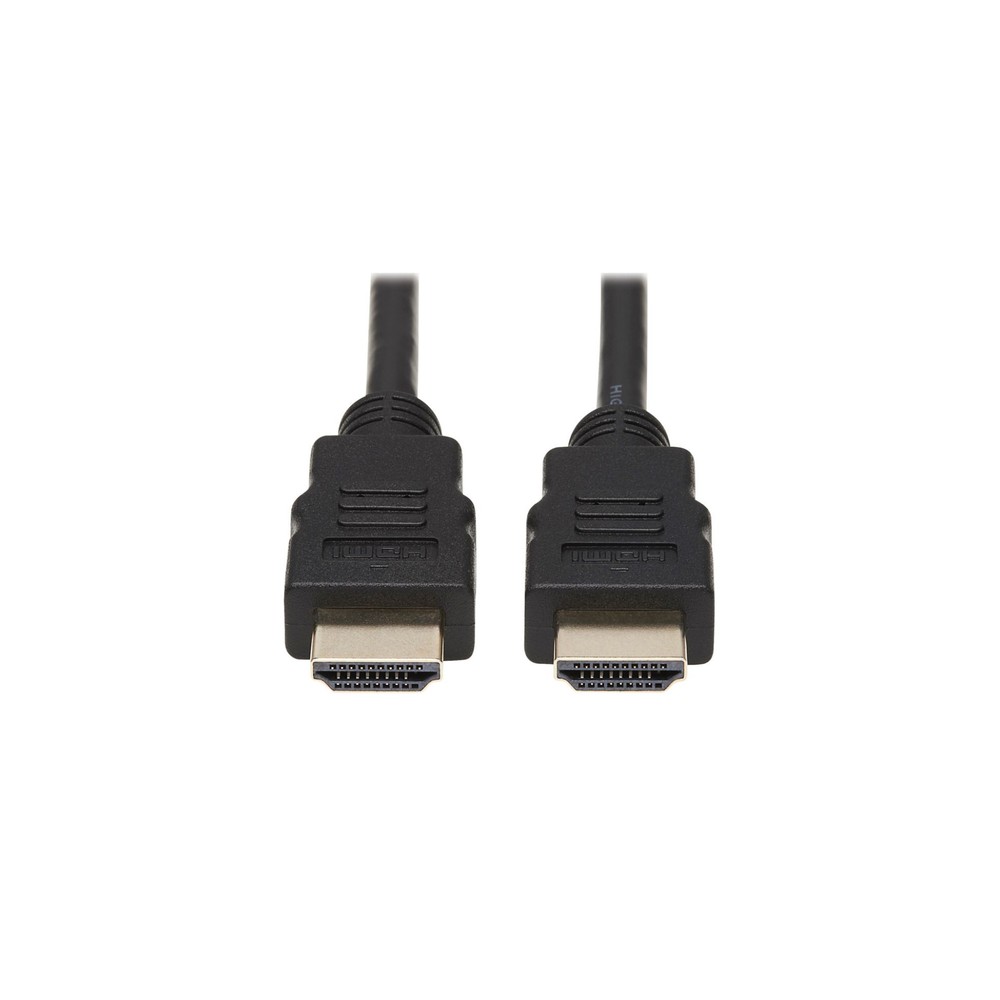

The Eaton Tripp Lite P568-010 is a 10 ft passive HDMI cable with HDMI male-to-male connectors. It is designed for digital audio/video connections between HDMI-equipped displays, projectors, computers, and other compatible A/V equipment.
The cable supports UHD 4K resolution up to 3840 × 2160 at 30 Hz, bidirectional transmission, 3D video, EDID, CEC, and 4:4:4 chroma. Eaton specifies double shielding, gold-plated connectors, and a 5.5 mm cable outer diameter.
It is suitable for conference rooms, classrooms, digital-signage systems, home theaters, and other standard HDMI deployments. It should not be selected where 4K at 60 Hz is required; Eaton specifies this model for 4K at 30 Hz.
Key Features
- 10 ft HDMI cable supports 4K video at 30 Hz
- Passive bidirectional design supports flexible A/V connections
- Double shielding helps reduce EMI/RFI interference
- Gold-plated connectors support reliable signal transfer
- 5.5 mm cable diameter supports compact cable routing
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-010 |
| Product Type | High-Speed HDMI Cable |
| Cable Type | Passive |
| Cable Length | 10 ft (3.05 m) |
| Connector 1 | HDMI Male |
| Connector 2 | HDMI Male |
| Signal Transmission | Bidirectional |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| HDCP Specification | 1.3 |
| 3D Video | Supported |
| Chroma Subsampling | 4:4:4 |
| Color Depth | 24-bit True Color |
| Shielding | Double Shielded |
| Connector Plating | Gold |
| Cable Outer Diameter | 5.5 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Jacket Color | Black |
| Minimum Bend Radius | 55 mm |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Operating Humidity | 10% to 85% RH, Non-Condensing |
| Compliance | RoHS, REACH |
