Detailed Specifications

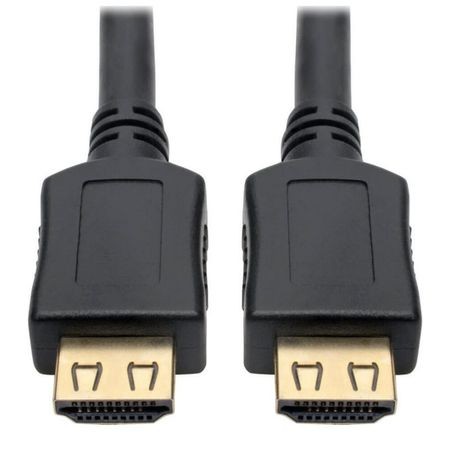

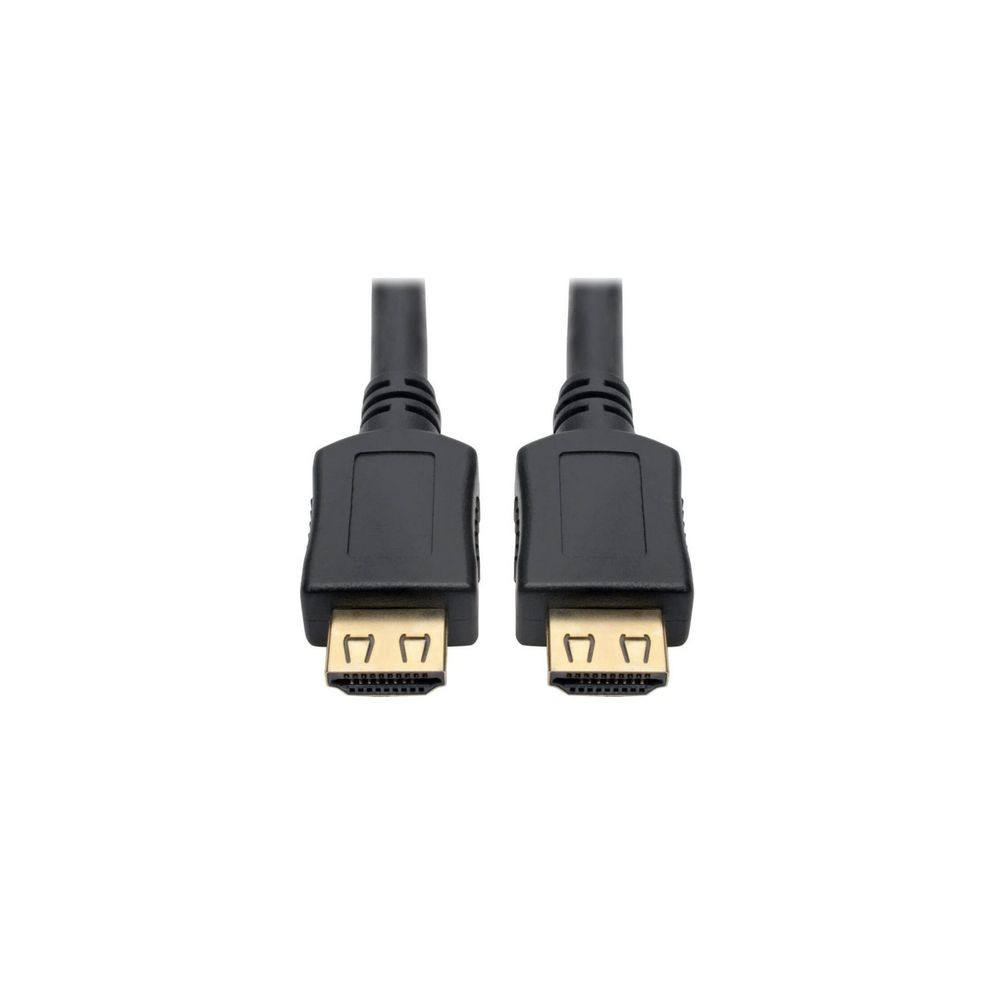

Eaton P568-020-BK-GRP Tripp Lite 20ft High Speed HDMI Cable
Overview
The Eaton Tripp Lite P568-020-BK-GRP is a 20 ft passive HDMI cable with male-to-male HDMI connectors and gripping connectors. It is designed for connecting HDMI-enabled computers, tablets, Blu-ray players, game consoles, displays, projectors, and A/V receivers.
The cable supports 3840 × 2160 (4K) at 30 Hz, 48-bit Deep Color, 4:4:4 chroma, HDCP 1.4, ARC, EDID, CEC, and 3D video. It uses double shielding and gold-plated contacts for signal protection and connectivity.
It is suitable for home theater, classrooms, conference rooms, digital signage, and other A/V installations. Eaton notes that HDMI runs exceeding 16 ft may require a compatible signal booster, so this 20 ft passive cable should be evaluated for signal requirements before deployment.
Key Features
- 20 ft HDMI cable supports 4K video at 30 Hz
- Gripping connectors help prevent accidental disconnection
- Double shielding helps reduce EMI/RFI interference
- Gold-plated contacts support reliable signal transfer
- Passive bidirectional design supports flexible A/V connections
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-020-BK-GRP |
| Product Type | High-Speed HDMI Cable |
| Cable Type | Passive |
| Cable Length | 20 ft (6.10 m) |
| Connector 1 | HDMI Male |
| Connector 2 | HDMI Male |
| Connector Pin Count | 19 Position |
| Signal Transmission | Bidirectional |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| HDCP | 1.4 |
| Color Depth | 48-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| 3D Video | Supported |
| Audio | ARC |
| EDID | Supported |
| CEC | Supported |
| Shielding | Double Shielded |
| Conductor Gauge | 28 AWG |
| Connector Plating | Gold |
| Jacket Material | PVC |
| Jacket Color | Black |
| Cable Diameter | 7.3 mm |
| Minimum Bend Radius | 36.5 mm |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Operating Humidity | 0-90% RH, Non-Condensing |
| Compliance | RoHS |
