Detailed Specifications

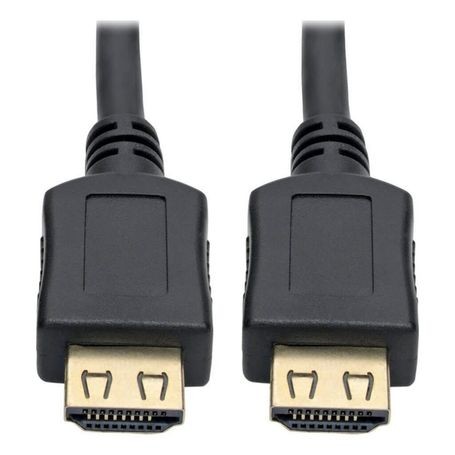

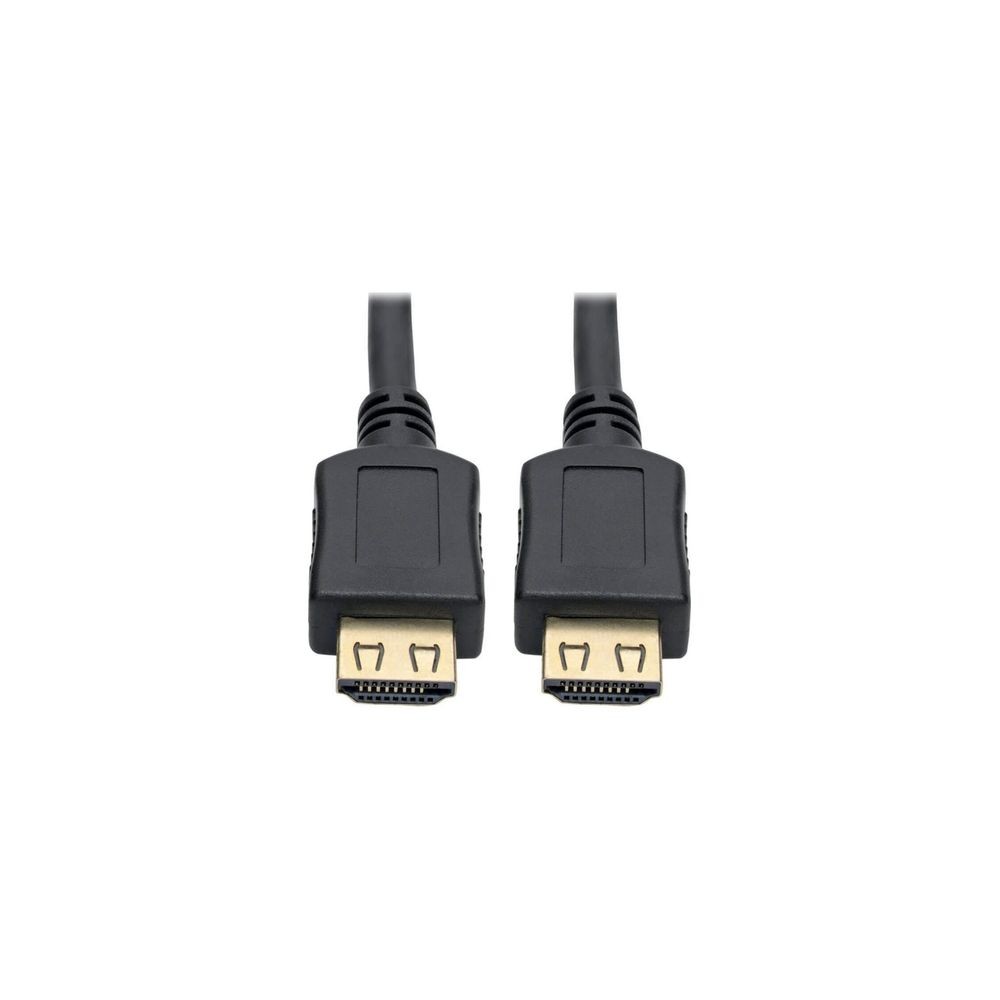

Eaton P568-003-BK-GRP Tripp Lite 3ft High Speed HDMI Cable
Overview
The Eaton Tripp Lite P568-003-BK-GRP is a 3 ft passive HDMI cable with male HDMI connectors and gripping connectors designed to help prevent accidental disconnection. It connects HDMI-equipped computers, Blu-ray players, game consoles, monitors, projectors, HDTVs, and A/V receivers.
The cable supports 4K resolution up to 3840 × 2160 at 30 Hz, bidirectional signal transmission, 3D video, ARC, EDID, CEC, 48-bit Deep Color, and 4:4:4 chroma. It uses double shielding and gold-plated connectors for signal protection and connectivity.
It is suited to short-run professional and consumer A/V installations where a secure HDMI connection is required. It should not be selected where 4K at 60 Hz is required; Eaton specifies this model for 4K at 30 Hz.
Key Features
- 3 ft HDMI cable supports 4K video at 30 Hz
- Gripping connectors help prevent accidental disconnection
- Double shielding helps reduce EMI/RFI interference
- Gold-plated contacts support reliable signal transmission
- Bidirectional design simplifies HDMI source-to-display connections
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-003-BK-GRP |
| Product Type | High-Speed HDMI Cable |
| Cable Length | 3 ft (0.91 m) |
| Cable Type | Passive |
| Connector 1 | HDMI Male |
| Connector 2 | HDMI Male |
| Signal Transmission | Bidirectional |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| HDCP | 1.4 |
| 3D Video | Supported |
| Audio | ARC |
| EDID | Supported |
| CEC | Supported |
| Color Depth | 48-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| Shielding | Double Shielded |
| Connector Plating | Gold |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Jacket Color | Black |
| Minimum Bend Radius | 30 mm |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Operating Humidity | 0-90% RH, Non-Condensing |
