Detailed Specifications

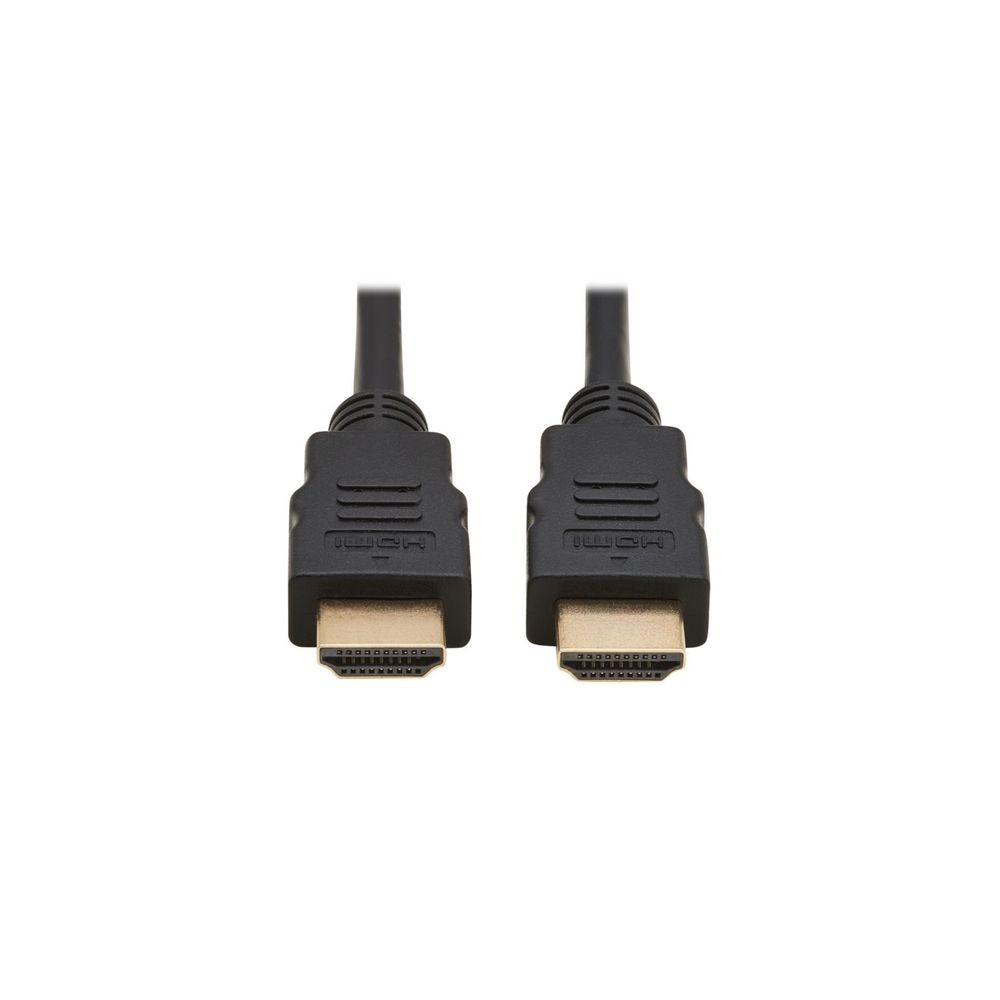

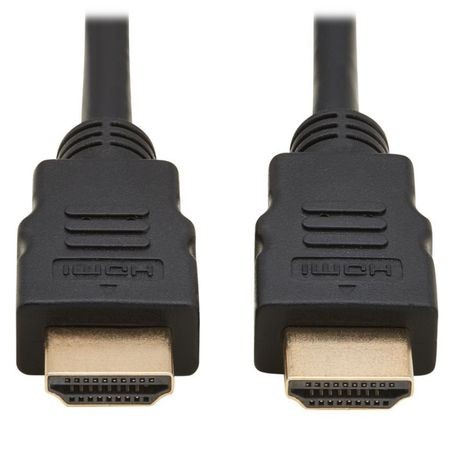

Eaton P568-040 Tripp Lite 40ft High Speed HDMI Digital Video Cable
Overview
The Eaton Tripp Lite P568-040 is a 40 ft passive HDMI male-to-male cable for digital video and multichannel audio connections. It is designed for HDMI-equipped computers, Blu-ray players, A/V receivers, monitors, projectors, televisions, digital-signage systems, and presentation equipment.
The cable supports UHD resolutions up to 4K and data transfer speeds up to 18 Gbps. It uses 28 AWG construction with premium foil-and-braid shielding and gold-plated connectors to help maintain signal integrity over the 40 ft run.
It is suitable for digital signage, video presentations, classrooms, point-of-sale displays, and professional A/V installations. Eaton notes that runs exceeding 16 ft may require a signal booster to maintain sufficient signal strength, so this passive 40 ft cable should not be selected where the installation cannot accommodate that requirement.
Key Features
- 40 ft HDMI cable supports UHD video up to 4K
- 18 Gbps bandwidth supports high-speed HDMI signals
- Foil and braid shielding helps reduce EMI/RFI noise
- Gold-plated connectors support reliable signal transfer
- 28 AWG construction supports long-run HDMI installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-040 |
| Product Type | High-Speed HDMI Cable |
| Cable Type | Passive |
| Cable Length | 40 ft (12.19 m) |
| Connector 1 | HDMI Male |
| Connector 2 | HDMI Male |
| Signal Transmission | Bidirectional |
| Maximum Resolution | 3840 × 2160 (4K) |
| Maximum Data Rate | 18 Gbps |
| HDCP | Supported |
| 3D Video | Supported |
| Chroma Subsampling | 4:4:4 |
| Color Depth | 24-bit True Color |
| Shielding | Foil and Braid |
| Conductor Gauge | 28 AWG |
| Connector Plating | Gold |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Cable Outer Diameter | 10.0 mm |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Minimum Bend Radius | 100 mm |
