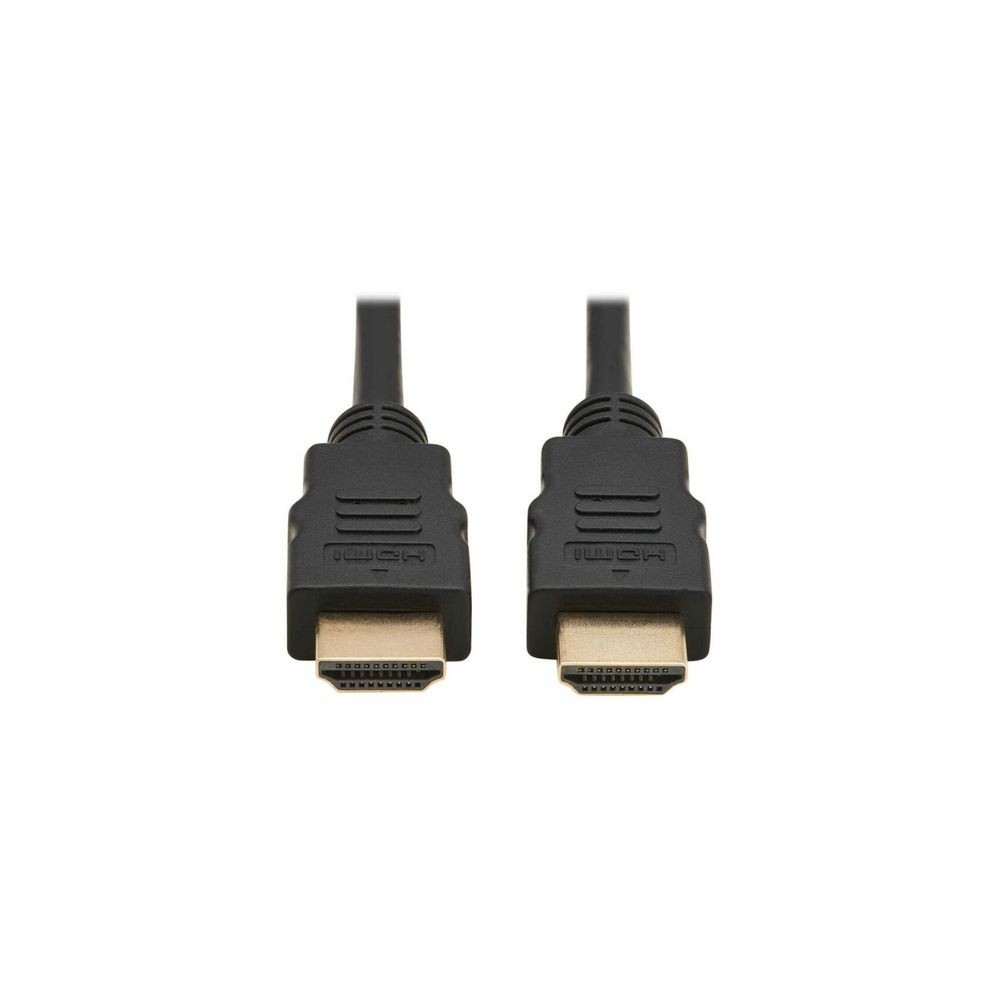

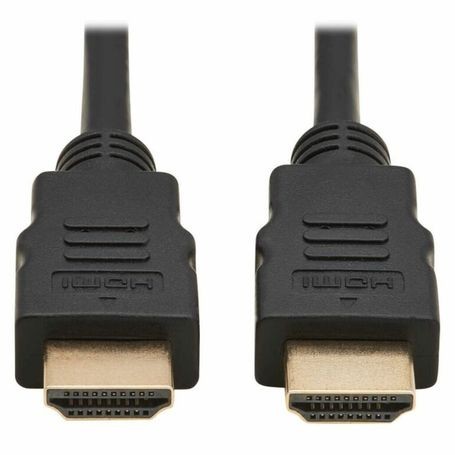

Eaton P568-050 Tripp Lite 50ft High Speed HDMI Digital Video Cable
Overview
The Eaton Tripp Lite P568-050 is a 50 ft passive HDMI cable with HDMI male connectors at both ends. It is designed for digital video and audio connections between compatible HDMI sources and displays.
The cable supports bandwidth up to 10.2 Gbps and UHD video resolutions up to 3840 × 2160 at 30 Hz. It supports HDCP 1.4, ARC, EDID, CEC, 3D video, and 48-bit Deep Color.
The double-shielded PVC construction and gold-plated connectors are suited to professional A/V and digital-signage installations. Because this is a 50 ft passive cable rated for 4K at 30 Hz, it should not be selected where 4K at 60 Hz is required.
Key Features
- 50 ft HDMI cable supports UHD 4K at 30 Hz
- 10.2 Gbps bandwidth supports high-speed video signals
- Double shielding helps protect against signal interference
- Gold-plated HDMI connectors support signal transfer
- Passive bidirectional design simplifies A/V connectivity
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P568-050 |
| Product Type | Standard-Speed HDMI Cable |
| Cable Length | 50 ft (15.24 m) |
| Cable Type | Passive |
| Connector 1 | HDMI Male |
| Connector 2 | HDMI Male |
| Signal Transmission | Bidirectional |
| Bandwidth | Up to 10.2 Gbps |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| HDCP | HDCP 1.4 |
| Audio | ARC |
| Color Depth | 48-bit Deep Color |
| Chroma Subsampling | 4:4:4 |
| 3D Video | Supported |
| EDID | Supported |
| CEC | Supported |
| Shielding | Double-shielded |
| Connector Plating | Gold |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Cable Outer Diameter | 7.3 mm |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
