Detailed Specifications

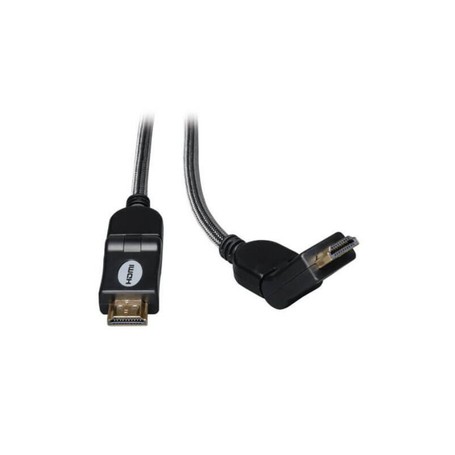

Eaton P568-006-SW High-Speed HDMI Cable with Swivel Connectors Compatible Tripp Lite
Overview :
The Eaton P568-006-SW is a High-Speed HDMI Cable with Swivel Connectors designed for digital audio/video connectivity between HDMI-enabled source and display devices. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. The product is identified as part of the Eaton Tripp Lite series.

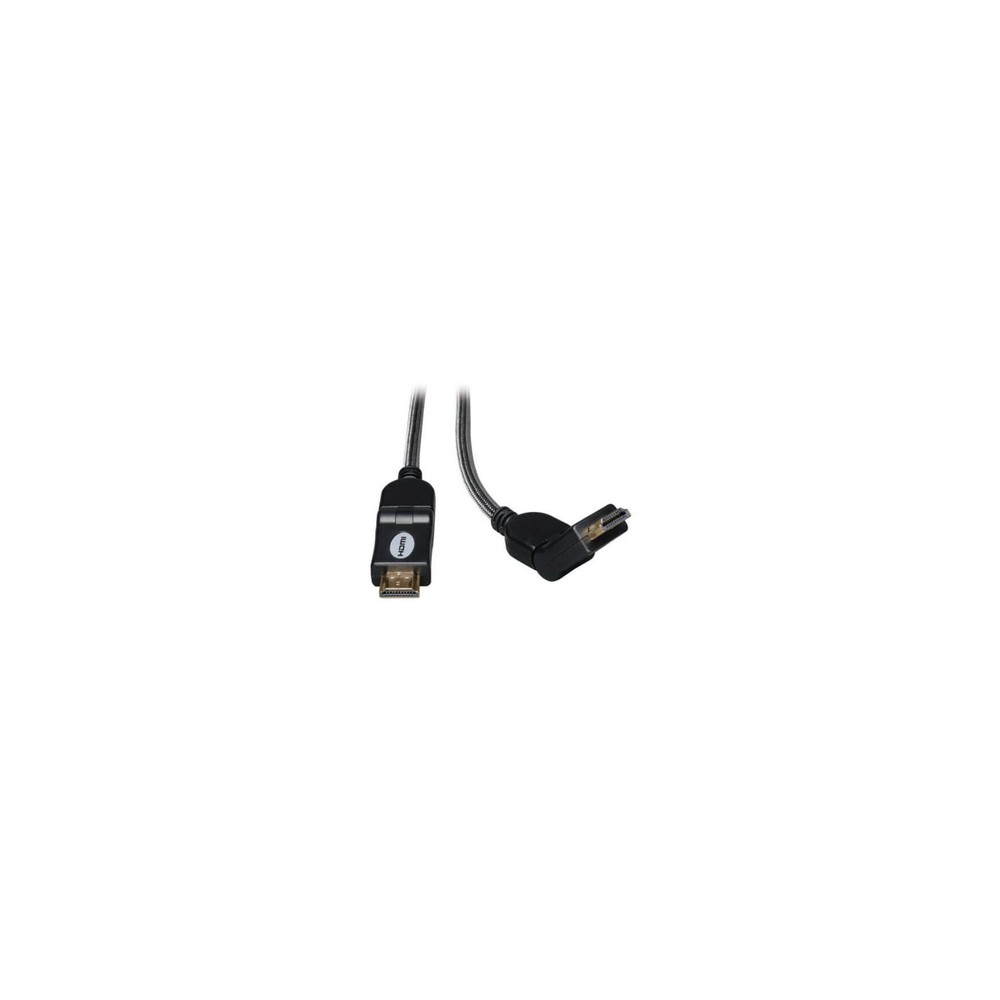

The cable uses HDMI male-to-male connectors with a 180-degree swivel design. The rotating connectors can swing up to 90 degrees left or right, making the cable suitable for flat-panel displays and installations where rear clearance is limited.
The P568-006-SW is a 6 ft. (1.83 m) passive HDMI cable with 28 AWG conductors, double shielding and gold-plated connectors. It supports UHD video resolutions up to 3840 × 2160 (4K) at 30 Hz and provides bidirectional signal transmission.
Key Features :
- High-Speed HDMI cable with swivel connectors
- 6 ft. (1.83 m) cable length
- HDMI male-to-male configuration
- 180-degree swivel connector design
- Supports UHD 4K video up to 3840 × 2160 at 30 Hz
- Supports bandwidth up to 18 Gbps
- Gold-plated connectors for signal transfer
- Premium double-shielded construction
- 28 AWG cable construction
- HDCP compliant
- EDID support
- Bidirectional signal transmission
- RoHS compliant
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P568-006-SW |
| Product Type | High-Speed HDMI Cable |
| Product Family | Eaton Tripp Lite Series |
| Cable Type | Passive HDMI |
| Cable Length | 6 ft. (1.83 m) |
| Connector Configuration | HDMI Male to HDMI Male |
| Connector Style | Swivel / Rotating |
| Swivel Design | 180-degree |
| Connector Plating | Gold |
| Conductor Size | 28 AWG |
| Shielding | Double-shielded |
| Cable Jacket | PVC |
| Maximum Resolution | 3840 × 2160 (4K) @ 30 Hz |
| Bandwidth | Up to 18 Gbps |
| Color Depth | 24-bit True Color |
| Chroma Subsampling | 4:4:4 |
| Signal Transmission | Bidirectional |
| HDCP | Compliant |
| EDID Support | Yes |
| HDR Support | No |
| 3D Video Support | No |
| Audio | Stereo Audio |
| Compliance | RoHS |
