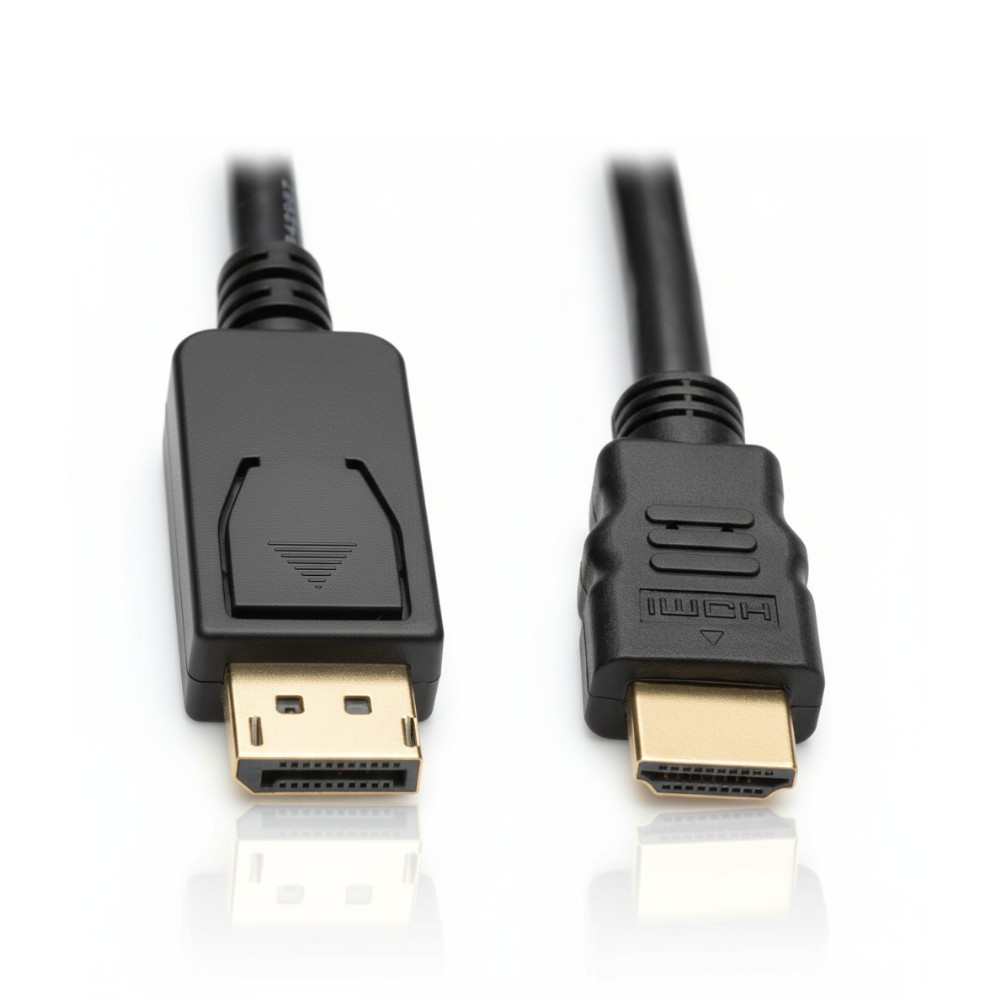

Tripp Lite P582-006-V2 - DisplayPort to HDMI Cable 4K
Overview
The Tripp Lite P582-006-V2 is a passive DisplayPort to HDMI adapter cable designed to connect DisplayPort-enabled source devices directly to HDMI displays. It is deployed by IT engineers and AV integrators to bridge modern DisplayPort outputs with legacy or standard HDMI monitors, projectors, and TVs without requiring active conversion hardware.
The cable supports DisplayPort 1.2 input and HDMI output with a maximum video resolution of 3840 × 2160 (4K UHD) at 30 Hz. It also carries embedded digital audio, supporting up to 7.1-channel surround sound, provided the source device supports audio passthrough. The passive design requires a DP++ (dual-mode DisplayPort) source, as signal conversion relies on the host GPU rather than onboard electronics.
This cable is typically deployed in workstation environments, conference rooms, digital signage setups, and edge IT deployments where HDMI displays are standard but source devices provide DisplayPort outputs. It is commonly used in desk-side deployments and rack-mounted KVM or console access scenarios.
The P582-006-V2 integrates into standard AV and IT infrastructure without requiring drivers or external power. It aligns with HDMI display ecosystems and is frequently used in mixed display environments where equipment refresh cycles introduce interface mismatches.
In a practical deployment, a workstation with DisplayPort output is connected directly to an HDMI monitor in an office or NOC environment. The cable eliminates the need for separate adapters and reduces connection points, improving reliability in static installations.
This cable should not be used in reverse (HDMI to DisplayPort), as it is not bidirectional. It is also unsuitable for environments requiring 4K at 60 Hz or higher refresh rates, or for systems lacking DP++ support.
Key Features
- Supports 4K UHD video at 30 Hz resolution output
- Passive DP++ cable requiring dual-mode source port
- Integrated DisplayPort to HDMI conversion cable design
- Gold-plated connectors for signal integrity stability
- Latching DisplayPort connector for secure connection
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number | P582-006-V2 |
| Product Type | DisplayPort to HDMI Adapter Cable |
| Input Interface | DisplayPort 1.2 (Male, latching) |
| Output Interface | HDMI (Male) |
| Cable Type | Passive (DP++ required) |
| Maximum Resolution | 3840 x 2160 @ 30 Hz |
| Audio Support | Up to 7.1-channel surround sound |
| HDCP Support | Yes |
| Cable Length | 6 ft (1.8 m) |
| Connector Plating | Gold-plated contacts |
| Jacket Material | PVC |
| Color | Black |
| Compliance | RoHS |
| Operating Requirement | DP++ (Dual-Mode DisplayPort) source |
| Weight | ~0.29 lb (0.13 kg) |
