Oracle 7061025 - HDD Backplane for M10/M12 PCI Expansion
Overview

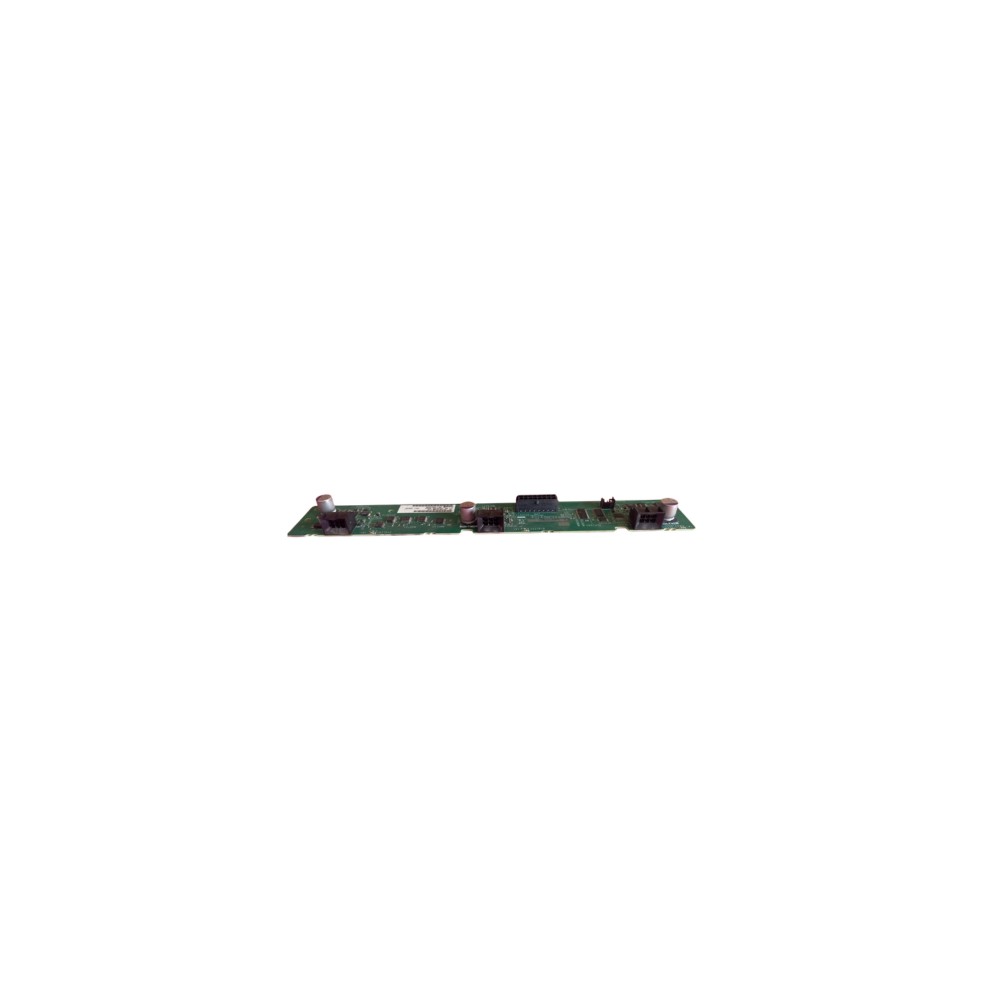

The Oracle 7061025 is a dedicated hard disk drive (HDD) backplane designed specifically for integration with Oracle SPARC M10 and M12 server chassis. This component serves as the physical interface for storage media within the server's PCI expansion subsystem, providing the necessary signal routing and power distribution to support high-density drive configurations.
This backplane acts as the critical bridge between the system's SAS/SATA controller and the physical storage drives. It manages data path connectivity and power management, ensuring that drives inserted into the expansion enclosure are correctly recognized and powered by the host server's midplane or controller modules.
In standard enterprise environments, this unit is deployed within the data center where storage capacity scaling is required for SPARC M-series systems. It is typically utilized in configurations where additional storage bays are attached to the server via the PCI expansion units to increase local storage throughput for database or virtualization workloads.
Deployment requires installation within the designated PCI expansion enclosure of the host SPARC server. It is essential to ensure that the server's firmware and the storage controller are compatible with the backplane revision to maintain signal integrity and proper drive identification.
For installation, ensure the server is powered down and the PCI expansion module is isolated. The unit mounts directly into the enclosure chassis; installers must verify that all SAS/SATA signal cables are securely seated and that the power connectors from the expansion unit's power distribution board are fully engaged to prevent voltage drops or intermittent connectivity.
Environments using non-Oracle certified drives or third-party PCI expansion chassis that do not strictly adhere to the mechanical specifications of the M10/M12 systems should not use this backplane. Mismatched impedance in signal paths or incorrect physical fitment can lead to hardware damage or system-level bus errors.
Key Features
Precision fit for Oracle SPARC M10/M12 PCI expansion enclosures.
Reliable signal integrity for SAS/SATA storage interconnects.
Modular design for rapid drive swap and system maintenance.
Standardized power distribution for internal drive arrays.
Engineered for seamless integration with Oracle system firmware.
Specifications
| Feature | Description |
| Brand | Oracle |
| Part Number | 7061025 |
| Product Type | HDD Backplane |
| Compatibility | SPARC M10, SPARC M12 |
| Enclosure Type | PCI Expansion Module |
| Interface | SAS / SATA |
| Mounting | Internal Chassis Mount |
| Form Factor | Proprietary M-Series Expansion |
| Signal Routing | Multi-lane SAS/SATA |
| Power Input | Expansion Backplane Bus |
| Hot-Swap Support | Yes (System Dependent) |
| Operating Temp | 10°C to 35°C (Typical) |
