Detailed Specifications

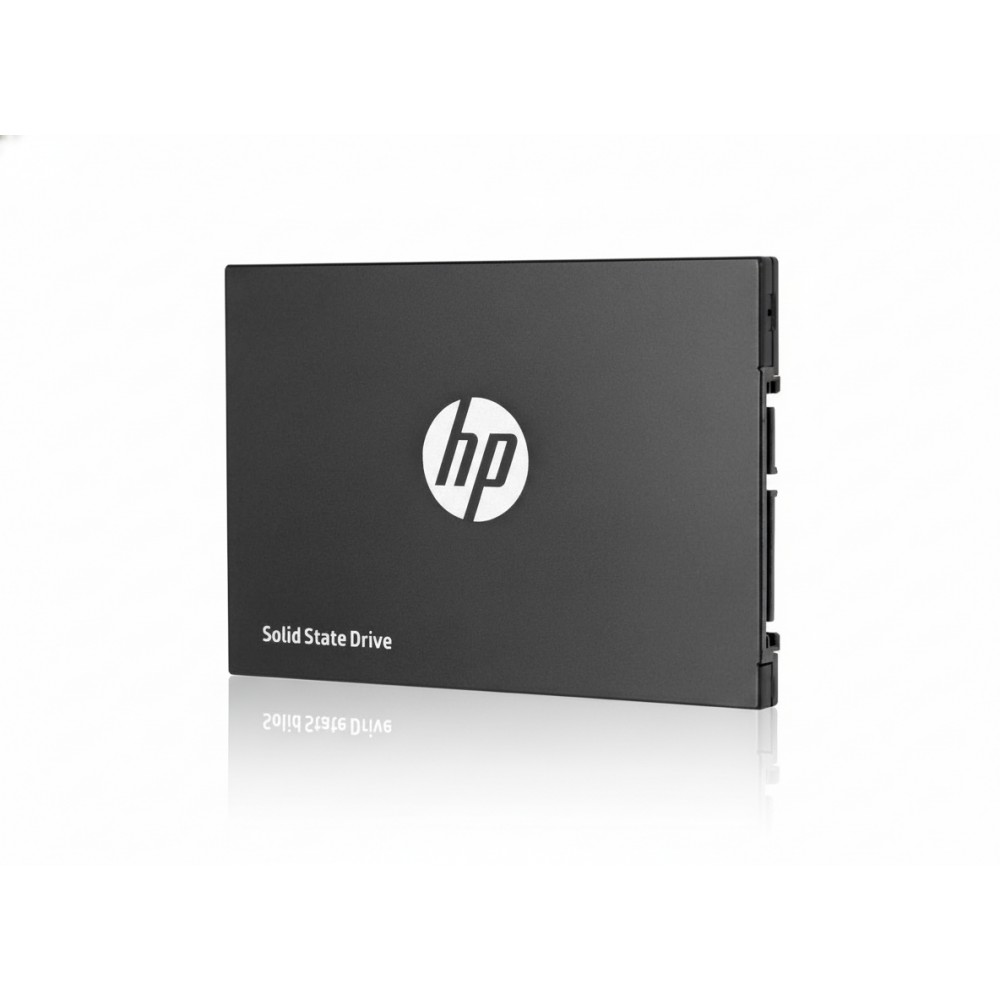

HP 2AP99AA - S700 Pro 512 GB 2.5″ SATA SSD
Overview :
The HP 2AP99AA is a 512 GB 2.5-inch SATA solid-state drive (SSD) designed for workstation and mainstream computing environments where upgrade from spinning media is required. It offers sustained sequential read performance up to ~565 MB/s and write speeds up to ~520 MB/s using a SATA 6 Gb/s interface, addressing storage-bottlenecks in desktops or entry-level servers. The drive's 2.5″ form factor and ≤7 mm height make it suitable for laptops, compact desktops and rack units; it also fits well in branch or edge systems. With built-in support for ATA-7 command sets including TRIM, NCQ and Data Set Management, the unit integrates seamlessly into existing SATA-based storage infrastructures.
Key Features :
512 GB usable capacity for standard workloads
SATA 6 Gb/s interface with full 6 Gb/s bandwidth
Up to ~565 MB/s sequential read throughput
Up to ~520 MB/s sequential write throughput
2.5″ form factor, ≤7 mm height, fits in standard bays
Specifications :
| Parameter | Value |
|---|
| Brand | HP |
| Part Number | 2AP99AA |
| Product Type | S700 Pro 512 GB 2.5″ SATA SSD |
| Interface | SATA 6 Gb/s (SATA III) |
| Capacity | 512 GB |
| Form Factor & Height | 2.5-inch, ≤7 mm |
| Sequential Read (max) | Up to ~565 MB/s |
| Sequential Write (max) | Up to ~520 MB/s |
| Random 4 KB Read IOPS (max) | Up to ~85,000 IOPS |
| Random 4 KB Write IOPS (max) | Up to ~90,000 IOPS |
| MTBF | 2,000,000 hours |
| Operating Temperature | 0 °C to +70 °C |
| Non-Operating Temperature | -40 °C to +85 °C |
| Shock Resistance | 100 G / 6 ms |
| Dimensions | 3.94″ × 2.75″ × ≤0.28″ |
| Weight | ≤0.18 lbs (≈80 g) |
