Detailed Specifications

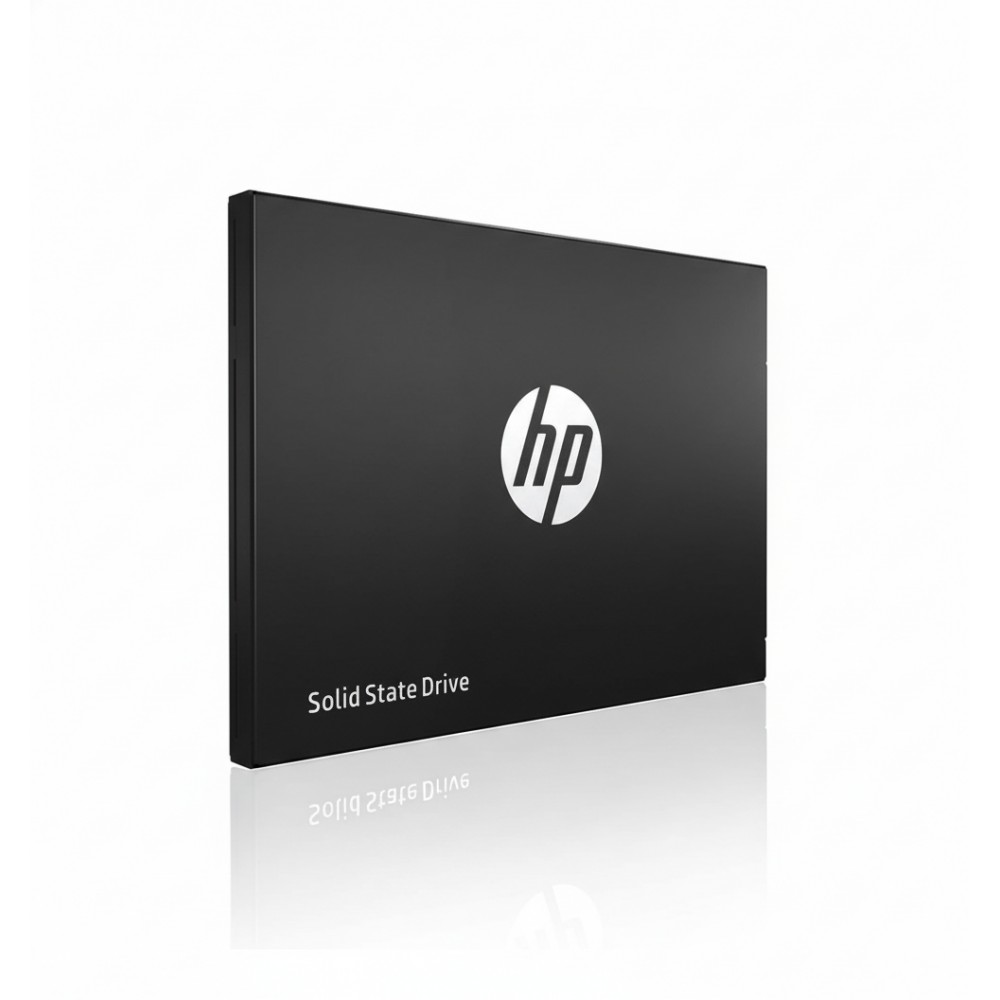

HP 2AP98AA - 2.5″ SATA SSD 256 GB
Overview :
The HP 2AP98AA is a 256 GB 2.5-inch internal SATA SSD designed for IT professionals upgrading storage in desktop systems, workstations or server boot volumes. It uses 3D NAND flash and a SATA III (6 Gb/s) interface to deliver sequential read speeds around 560 MB/s and writes up to 520 MB/s, supporting responsive system performance. The form-factor fits standard 2.5″ bays in desktops, laptops or edge appliances, making it suitable for campus compute, small data-centers or branch office servers. It supports standard SATA command sets including TRIM and NCQ, and is available with a 3-year limited warranty, giving IT teams a drop-in solid-state option in existing SATA infrastructure.
Key Features :
256 GB capacity in 2.5″ form factor
SATA III (6 Gb/s) interface, supports SATA/600
Sequential read up to ~560 MB/s, write up to ~520 MB/s
Uses 3D NAND flash with LDPC error correction
100 mm × 69.8 mm × ~6.7 mm thin profile
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | 2AP98AA |
| Product Type | 2.5″ SATA SSD (256 GB) |
| Interface | SATA III 6 Gb/s (SATA/600) |
| Form Factor | 2.5 inch |
| Capacity | 256 GB |
| Max Sequential Read | Up to ~560 MB/s |
| Max Sequential Write | Up to ~520 MB/s |
| Random 4K Read IOPS | Up to ~70,000 IOPS (256 GB model) |
| Random 4K Write IOPS | Up to ~90,000 IOPS (256 GB model) |
| Dimensions (W×D×H) | 3.9″ × 3.94″ × ~0.26″ (~100.2 × 69.8 × 6.7 mm) |
| Weight | ≤ 0.18 lbs (≤ 80 g) |
| Operating Temperature | 0 °C to 70 °C |
| MTBF | 2,000,000 hours |
| Warranty | 3-year limited |
