Detailed Specifications

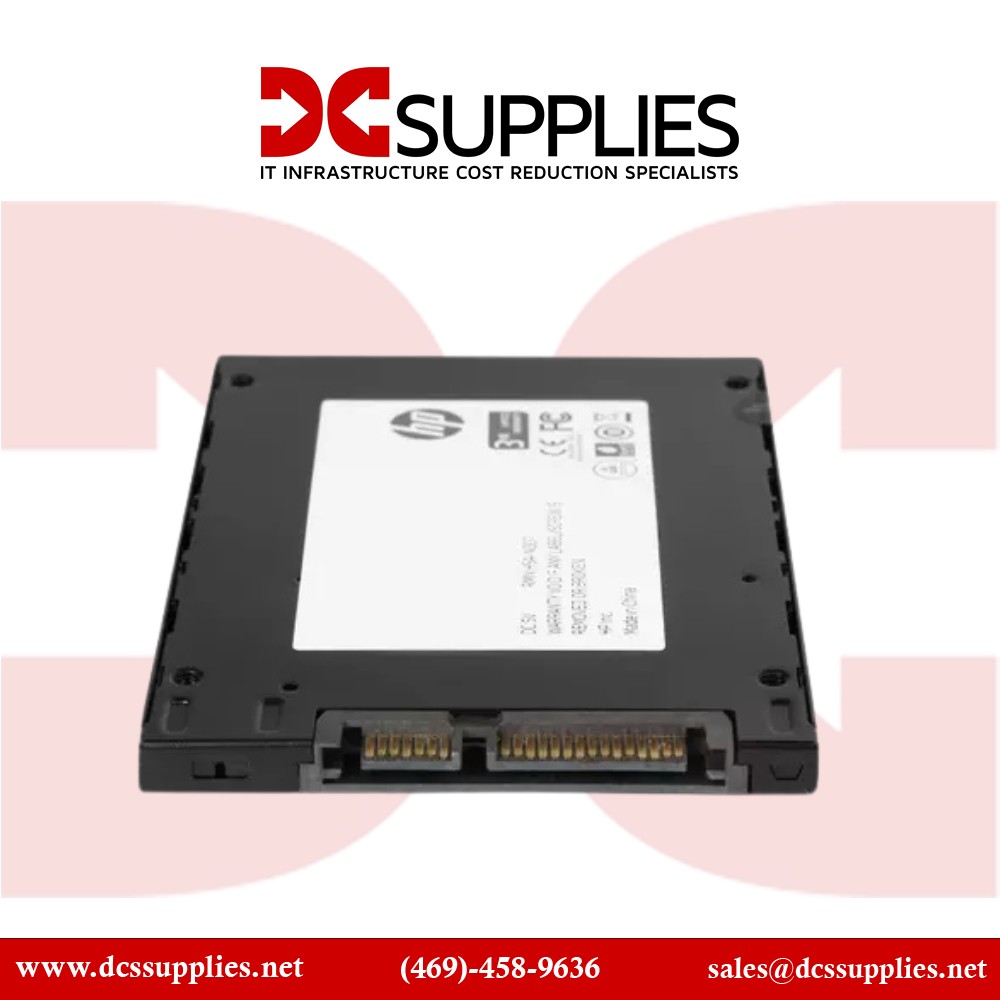

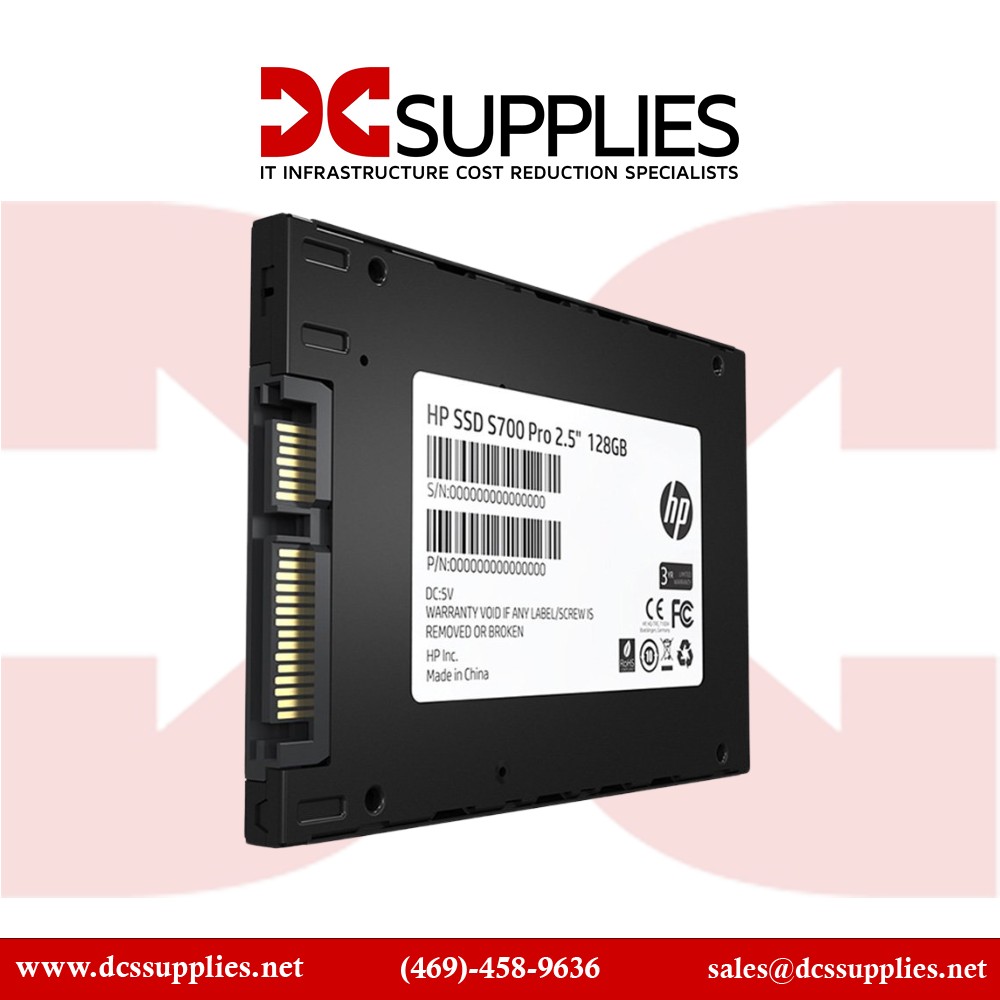

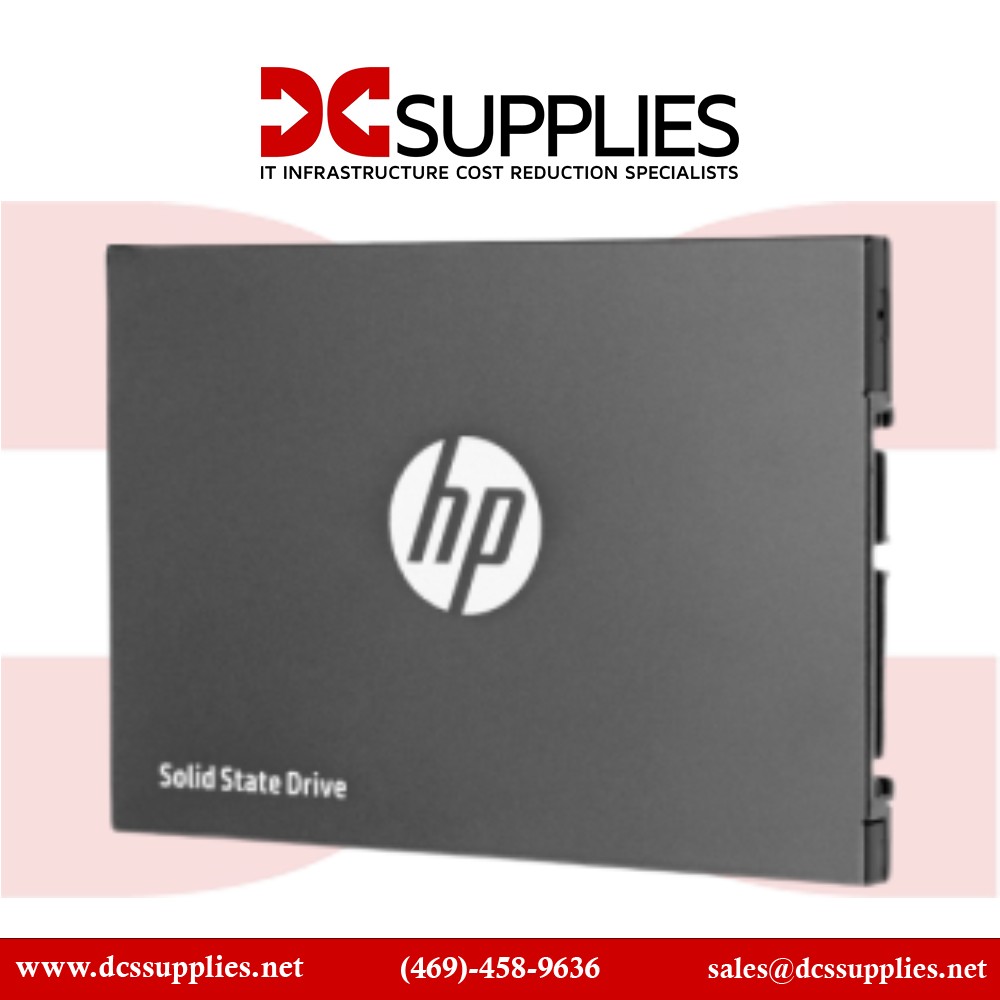

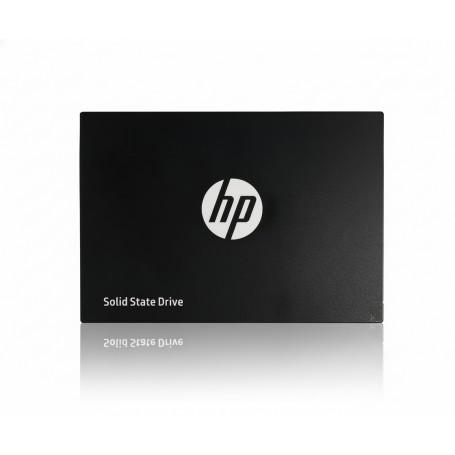

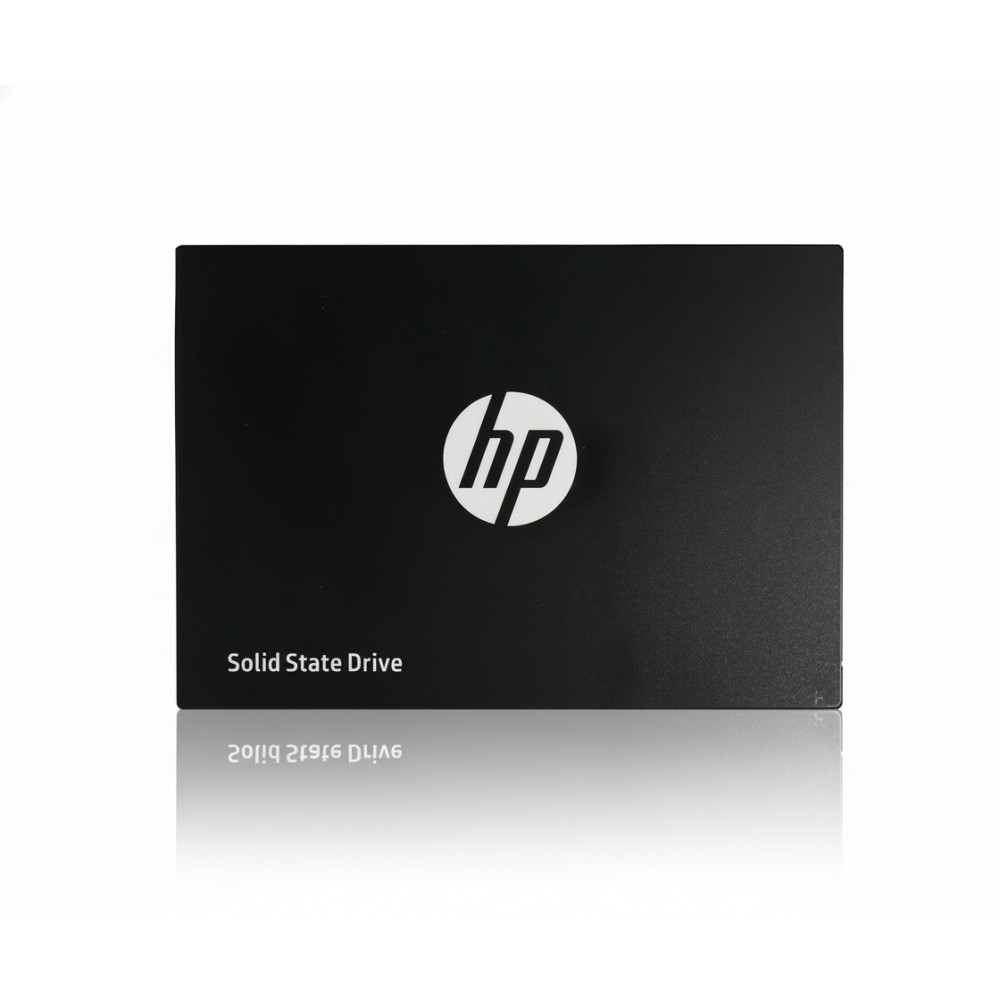

HP 2AP97AA - 2.5″ SATA SSD S700 Pro
Overview :
The HP 2AP97AA is a 128 GB 2.5-inch SATA SSD designed for engineers and IT professionals seeking a compact storage module for laptops, desktops or embedded systems. It leverages 3D TLC NAND flash and supports the SATA 6 Gb/s interface, enabling sustained sequential read speeds up to 560 MB/s and write speeds up to 460 MB/s. The drive is well suited for branch office desktops, workstation upgrades or server boot volumes in campus or edge deployments. With a 7 mm thickness and full-sized 2.5″ form factor it integrates into standard drive bays and is compatible with legacy SATA systems and modern platforms alike.
Key Features :
560 MB/s maximum sequential read performance
460 MB/s maximum sequential write performance
Up to 40 K IOPS random 4 KB read / 85 K IOPS random 4 KB write
SATA III (6 Gb/s) interface, backward compatible
MTBF of 2 million hours and up to 80 TBW endurance
Specifications :
| Specification | Detail |
|---|
| Brand | HP |
| Part Number | 2AP97AA |
| Product Type | 2.5″ SATA SSD |
| Interface | SATA III 6.0 Gb/s |
| Capacity | 128 GB |
| Sequential Read Speed | Up to 560 MB/s |
| Sequential Write Speed | Up to 460 MB/s |
| Random Read IOPS | Up to 40,000 (4 KB QD32) |
| Random Write IOPS | Up to 85,000 (4 KB QD32) |
| Form Factor | 2.5″ |
| Thickness (Height) | ≤ 0.28 inch (≤ 7 mm) |
| Dimensions (L × W) | approx. 3.95 × 2.75 inch (100.2 × 69.8 mm) |
| Weight | ≤ 0.11 lbs (≤ 50 g) |
| Operating Temp. | 0 °C to 70 °C |
| MTBF | 2,000,000 hours |
