HP 356914-009 146GB 15K U320 PLUGGABLE HARD DRIVE View larger

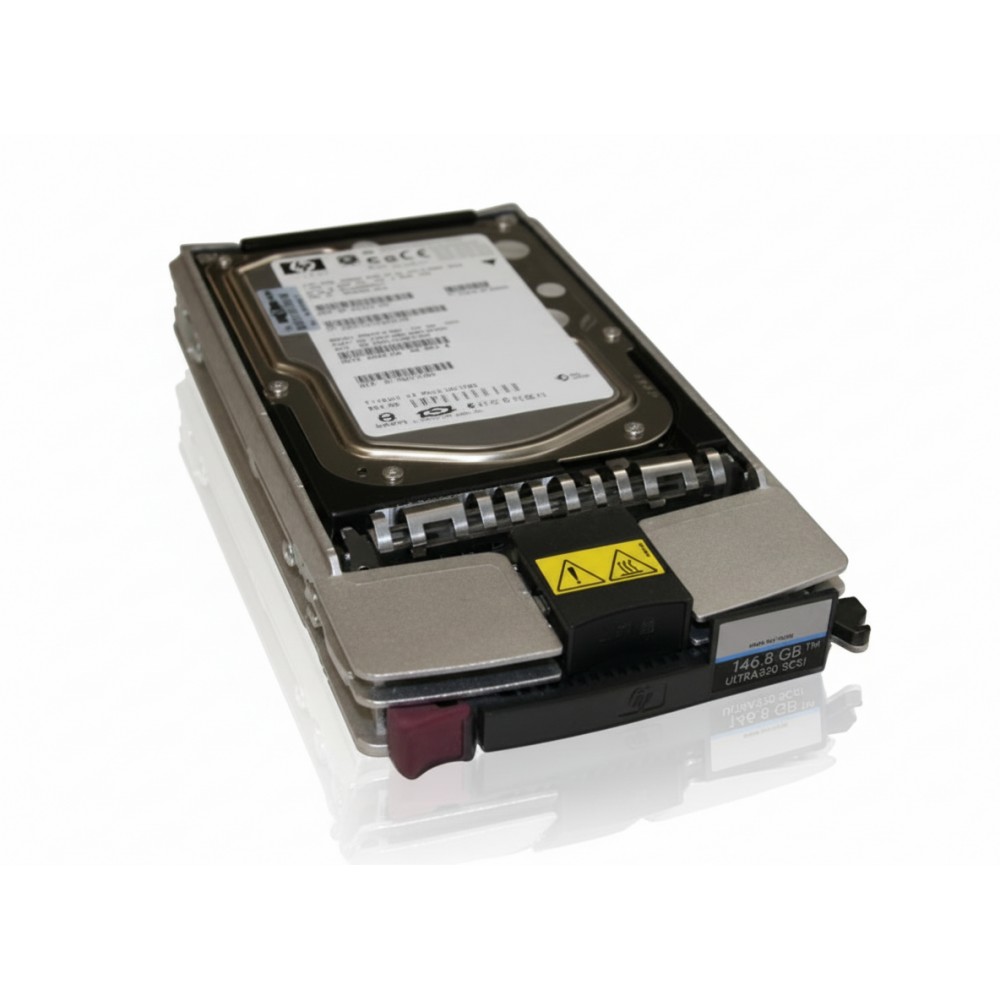

HP 356914-009 146GB 15K RPM U320 Pluggable Hard Drive

New

HP 146 GB Ultra320 SCSI 15K 3.5″ enterprise drive
×




  • Refurbished

Detailed Specifications

HP 356914-009 – Enterprise 3.5″ SCSI Hard Drive

Overview :

This drive is a 146 GB 3.5″ hot‑pluggable enterprise hard disk used in server and storage rack systems. It is designed for engineers and IT infrastructure teams who require high‑RPM, high‑throughput storage for server back‑planes rather than desktop use. With a 15,000 RPM spindle speed and an Ultra320 SCSI interface supporting up to 320 MB/s, it delivers sharp seek performance and consistent bandwidth in demanding environments. It fits standard 3.5″ hot‑swap bays in datacenter servers, blade chassis or legacy ProLiant systems configured for U320 SCSI. It is intended for data‑center, enterprise storage, or migration to compatible legacy platforms and interfaces, integrating with SCSI controllers and drive trays in server hardware.

Key Features :

  • 15,000 RPM spindle speed for lower latency access

  • Ultra320 Wide SCSI interface up to 320 MB/s throughput

  • 3.5″ form factor with hot‑plug SCA‑2 80‑pin connector

  • 146 GB capacity suited for enterprise tier‑1 storage

  • Compatible with HP ProLiant and StorageWorks server lines

Specifications :

SpecificationValue
Brand Hewlett‑Packard (HP)
Part Number 356914‑009
Product Type 3.5″ Enterprise SCSI HDD
Capacity 146 GB
Spindle Speed 15,000 RPM
Interface Ultra320 SCSI (Wide LVD)
Max Data Transfer 320 MB/s
Cache Size 8 MB
Form Factor 3.5 inch
Connector 80‑pin SCA‑2 hot‑plug
Average Seek Time 4.9 ms
Full Stroke Seek 10.0 ms
Height 1.0 inch (≈ 25.4 mm)
Width 4.0 inch (≈ 101.6 mm)
Weight ~2.0 lbs (~0.91 kg)
