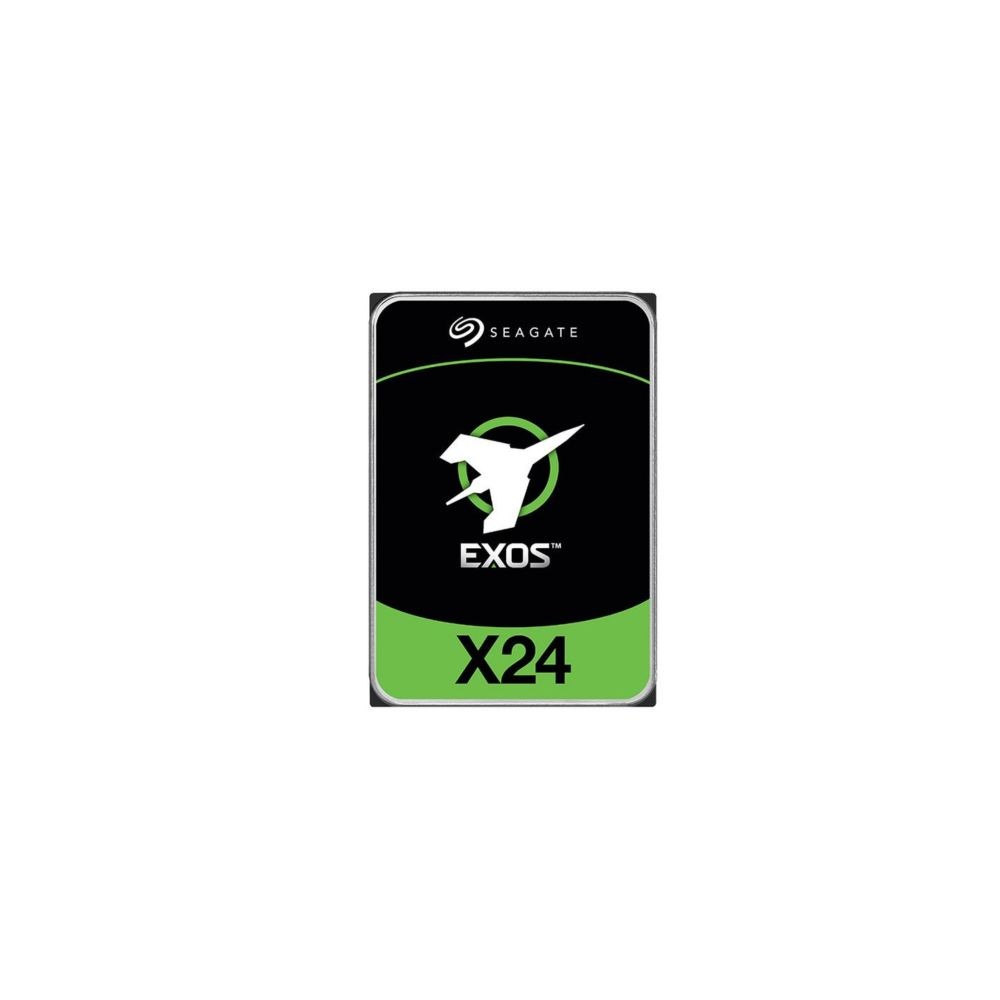

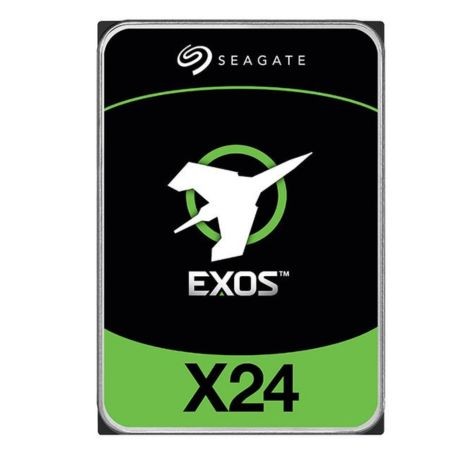

The Seagate ST16000NM002H is a 16TB internal enterprise hard drive from the Exos X24 family. Designed for data centers, enterprise servers, and large-scale storage infrastructure, it combines high-capacity storage with a SATA 6Gb/s interface, 7200RPM spindle speed, and 512MB cache. Its helium-sealed design and conventional magnetic recording technology support demanding enterprise storage workloads.
Product Overview
The Exos X24 family is engineered for enterprise environments that require high-capacity storage and continuous operation. The ST16000NM002H is the standard SATA model featuring Seagate Instant Secure Erase (ISE). It is suitable for compatible server storage, RAID arrays, backup repositories, cloud infrastructure, and large datasets.
Key Features
- 16TB storage capacity: Provides substantial space for enterprise data, backups, and centralized storage repositories.
- 7200RPM spindle speed: Supports data access in compatible enterprise server and storage systems.
- SATA 6Gb/s interface: Connects to compatible SATA-equipped servers, storage enclosures, and storage controllers.
- 512MB cache: Helps manage data-access and transfer operations under supported workloads.
- Instant Secure Erase: Provides a supported drive-sanitization capability for eligible systems and workflows.
Enterprise Applications
- Enterprise servers and data-center storage
- Compatible RAID arrays and storage enclosures
- Cloud infrastructure and large-scale data storage
- Business backup and archive repositories
- Data-intensive enterprise applications and analytics storage
Data Security and Storage Management
The ST16000NM002H is the standard Exos X24 SATA model with Instant Secure Erase (ISE). ISE is a drive-sanitization feature intended to support secure erasure workflows; it should not be confused with a self-encrypting drive (SED). The corresponding SED model is ST16000NM001H. Confirm the required security function and compatibility with the host system before deployment.
The Exos X24 family also includes PowerChoice idle-power technology, PowerBalance power/performance optimization, SuperParity, and hot-plug support in compatible systems. These features are designed for enterprise storage environments, with actual functionality depending on system configuration.
Compatibility and Installation
This drive uses a 3.5-inch form factor and SATA 6Gb/s interface. Before installation, verify that your server, SATA controller, RAID controller, or storage enclosure supports 16TB drives and the required sector format. Seagate specifies support for 512e and 4Kn sector formats, with FastFormat used for supported format changes.
Changing the sector format using FastFormat erases the data on the drive. Back up any required data and confirm host-system compatibility before performing a format conversion. SATA and SAS are different interfaces, so ensure the host connection matches this SATA model.
DC Supplies Product Note
When selecting the Seagate ST16000NM002H, verify the complete model number, SATA interface, capacity support, and sector-format requirements of your storage system. The advertised 16TB capacity uses decimal units, so the operating system may report a lower usable figure. RAID configuration, filesystem formatting, and system overhead can further reduce available storage.
Technical Specifications
| Brand | Seagate |
|---|
| Part Number MPN | ST16000NM002H |
|---|
| Product Type | Internal enterprise hard drive |
|---|
| Product Family | Exos X24 |
|---|
| Formatted Capacity | 16TB |
|---|
| Form Factor | 3.5-inch |
|---|
| Interface | SATA 6Gb/s |
|---|
| Model Type | Standard model with Instant Secure Erase (ISE) |
|---|
| Recording Technology | Conventional Magnetic Recording (CMR) |
|---|
| Sector Formats | 512e and 4Kn, with compatible FastFormat configuration |
|---|
| Spindle Speed | 7200RPM |
|---|
| Cache Buffer | 512MB |
|---|
| Maximum Sustained Transfer Rate | Up to 285MB/s |
|---|
| Maximum Interface Burst Rate | 600MB/s |
|---|
| Interface Ports | Single SATA port |
|---|
| Instant Secure Erase | Supported |
|---|
| Helium-Sealed Design | Yes |
|---|
| Power Management | PowerChoice and PowerBalance |
|---|
| Hot-Plug Support | Supported in compatible systems |
|---|
| MTBF | 2,500,000 hours |
|---|
| Annualized Failure Rate | 0.35%, under specified operating conditions |
|---|
| Nonrecoverable Read Errors | Less than 1 sector per 1015 bits read |
|---|
| Operating Temperature | 5°C ambient minimum; 60°C maximum drive-reported temperature |
|---|
| Maximum Dimensions (H × W × D) | 26.1 × 101.85 × 147mm |
|---|
| Weight | Approximately 685g |
|---|
| Limited Warranty | 5 years, subject to applicable Seagate warranty terms and eligibility |
|---|
Frequently Asked Questions
1. What is the capacity of the Seagate ST16000NM002H?
This Exos X24 enterprise hard drive provides 16TB of formatted storage capacity.
2. Does the ST16000NM002H use SATA or SAS?
It uses a SATA 6Gb/s interface. Ensure your server or storage enclosure supports SATA drives and the drive's 16TB capacity.
3. Is the ST16000NM002H a self-encrypting drive?
No. This model includes Instant Secure Erase (ISE). The ST16000NM001H is the corresponding self-encrypting drive (SED) model.
4. Can this hard drive be used in a RAID array?
Yes, when the RAID controller and storage system support SATA drives, 16TB capacity, and the selected sector format.
5. What does Instant Secure Erase do?
Instant Secure Erase is a supported drive-sanitization feature designed to facilitate secure erasure workflows. Verify the system's implementation and requirements before using it to sanitize a drive.
6. What warranty is listed for this drive?
Seagate lists a five-year limited warranty for this model. Actual coverage depends on the drive's eligibility, region, and applicable warranty terms.
