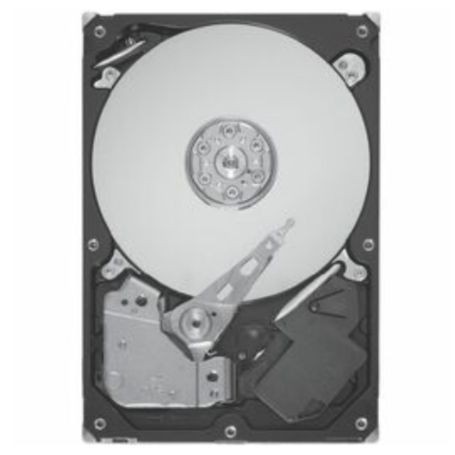

The Seagate ST28000NT000 is a 28TB, 3.5-inch internal hard disk drive from the Seagate IronWolf Pro family. Designed for demanding network-attached storage environments, it provides substantial capacity for business files, large media libraries, centralized backups, and multi-user data storage.
This drive operates at 7200RPM and uses a SATA 6Gb/s interface with 512MB of cache. It employs conventional magnetic recording (CMR), a helium-filled drive design, and rotational vibration sensors. These features make it suitable for compatible NAS systems that require high-capacity storage for continuous operation.
Key Features
- 28TB storage capacity: Provides substantial storage for large datasets, shared files, media collections, and backups.
- 7200RPM performance: Supports data access in demanding NAS and multi-user storage workloads.
- SATA 6Gb/s interface: Connects to compatible SATA controllers and NAS drive bays.
- 512MB cache and CMR recording: Combines a large cache with conventional magnetic recording for supported storage workloads.
- IronWolf Pro reliability features: Includes rotational vibration sensors, a workload rating of up to 550TB per year, and a manufacturer-rated MTBF of 2.5 million hours.
Recommended Applications
- High-capacity business NAS systems
- Multi-user network file storage
- Large-scale backup and archive repositories
- Media production and centralized content storage
- Compatible multi-drive NAS and RAID storage systems
Technical Specifications
| Brand | Seagate |
|---|
| Model / MPN | ST28000NT000 |
|---|
| Product Family | IronWolf Pro |
|---|
| Drive Type | Internal enterprise-class NAS HDD |
|---|
| Storage Capacity | 28TB |
|---|
| Form Factor | 3.5-inch |
|---|
| Spindle Speed | 7200RPM |
|---|
| Interface | SATA 6Gb/s |
|---|
| Cache | 512MB |
|---|
| Recording Technology | CMR (Conventional Magnetic Recording) |
|---|
| Drive Design | Helium-filled |
|---|
| Sector Format | 512e |
|---|
| Rotational Vibration Sensors | Yes |
|---|
| Maximum Sustained Transfer Rate | Up to 270MB/s |
|---|
| Workload Rating | Up to 550TB per year |
|---|
| MTBF Rating | 2,500,000 hours |
|---|
| Nonrecoverable Read Errors | Maximum 1 per 1015 bits read |
|---|
| Drive Bay Support | Listed for unlimited-bay configurations; verify system compatibility |
|---|
| Dimensions (H × W × D) | 26.1 × 101.8 × 147mm |
|---|
| Approximate Weight | 695g |
|---|
| Limited Warranty | 5 years, subject to eligibility and applicable terms |
|---|
| Rescue Data Recovery Services | 3 years for eligible offerings; regional terms apply |
|---|
Compatibility Information
The ST28000NT000 uses a 3.5-inch SATA interface and 512e sector formatting. Before installation, confirm that the NAS enclosure, server, or storage controller supports 28TB SATA hard drives and the required sector format. RAID compatibility and supported drive capacity depend on the host system, firmware, and configuration.
Although the drive is designed for demanding NAS environments, actual performance depends on the storage controller, RAID configuration, workload, cooling, and other components in the system.
Frequently Asked Questions
1. What is the capacity of the Seagate ST28000NT000?
The drive has a nominal capacity of 28TB.
2. Is the ST28000NT000 a SATA or SAS drive?
It is a SATA hard drive with an interface speed of up to 6Gb/s, not a SAS model.
3. Is this drive suitable for NAS and RAID systems?
Yes. The IronWolf Pro family is designed for NAS storage, including compatible multi-drive configurations. Confirm that the specific NAS or RAID controller supports this capacity and model.
4. Does the ST28000NT000 use CMR recording?
Yes. Seagate specifies conventional magnetic recording (CMR) for this model.
5. What are the workload rating and MTBF?
Seagate specifies a workload rating of up to 550TB per year and an MTBF rating of 2.5 million hours. These are manufacturer reliability ratings, not guarantees of an individual drive's service life.
6. Does it include a warranty and data recovery service?
Seagate lists a five-year limited warranty and three years of Rescue Data Recovery Services for eligible offerings. Actual eligibility and coverage depend on the region, sales channel, serial number, and applicable terms. Confirm coverage for the specific unit before purchasing.
DC Supplies Product Note
Before ordering, verify the exact model number, capacity, physical condition, and compatibility with your NAS or storage system. Warranty coverage and any included data recovery services should be confirmed for the specific unit offered by DC Supplies.
