Detailed Specifications

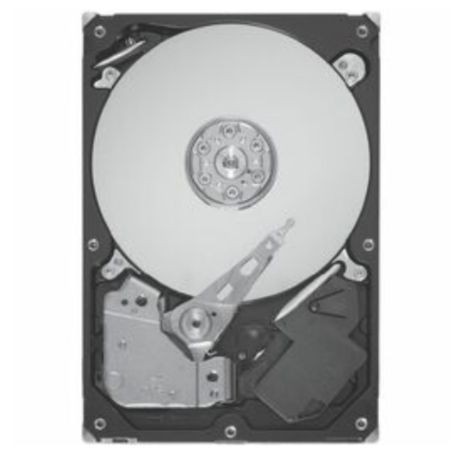

The Seagate ST340014A is a 3.5-inch internal hard disk drive from the Barracuda 7200.7 series. With 40GB of storage, a 7200RPM spindle speed, and an Ultra ATA/100 interface, this drive was designed for desktop computers and other compatible legacy systems requiring a parallel ATA (PATA/IDE) storage connection.
Key Features
- 40GB storage capacity: Suitable for basic storage needs in compatible older computer systems.
- 7200RPM rotational speed: Provides mechanical disk access at a 7200RPM spindle speed.
- Ultra ATA/100 interface: Uses a parallel ATA connection rather than SATA or SAS.
- 2MB cache buffer: Includes a 2MB onboard cache for handling data transfers.
- Standard 3.5-inch form factor: Designed for compatible desktop drive bays and legacy hardware.
Compatibility and Applications
The ST340014A may be suitable for restoring or maintaining older desktop computers and compatible systems that use an IDE/PATA hard drive interface. It is not a direct SATA replacement without suitable interface conversion hardware. Check the host system's supported drive capacity, connector type, mounting requirements, and jumper configuration before installation.
Technical Specifications
| Brand | Seagate |
|---|
| Model Number | ST340014A |
|---|
| Product Family | Barracuda 7200.7 |
|---|
| Drive Type | Internal mechanical hard disk drive |
|---|
| Capacity | 40GB |
|---|
| Form Factor | 3.5-inch |
|---|
| Spindle Speed | 7200RPM |
|---|
| Interface | Ultra ATA/100 (PATA/IDE) |
|---|
| Cache Buffer | 2MB |
|---|
| Bytes per Sector | 512 |
|---|
| Average Seek Time | 8.5ms |
|---|
| Average Rotational Latency | 4.16ms |
|---|
| Maximum Height | 26.1mm |
|---|
| Maximum Width | 101.6mm |
|---|
| Maximum Length | 146.99mm |
|---|
Frequently Asked Questions
What is the storage capacity of the ST340014A?
The Seagate ST340014A provides 40GB of storage capacity.
Does this drive use SATA?
No. It uses an Ultra ATA/100 PATA/IDE interface. Confirm that your system has a compatible IDE connection before purchasing.
What is the spindle speed?
The drive operates at 7200RPM.
How much cache does it have?
This model has a 2MB cache buffer.
Can it be used in a modern computer?
Compatibility depends on the available interface and system support. Most modern computers do not provide a native IDE/PATA connection, so additional compatible hardware may be required.
DC Supplies Product Note
Please verify the exact model number and system compatibility before ordering. As an older drive model, its physical condition and availability may vary by listing. Confirm the product's condition and included items in the specific offer.
