Overview

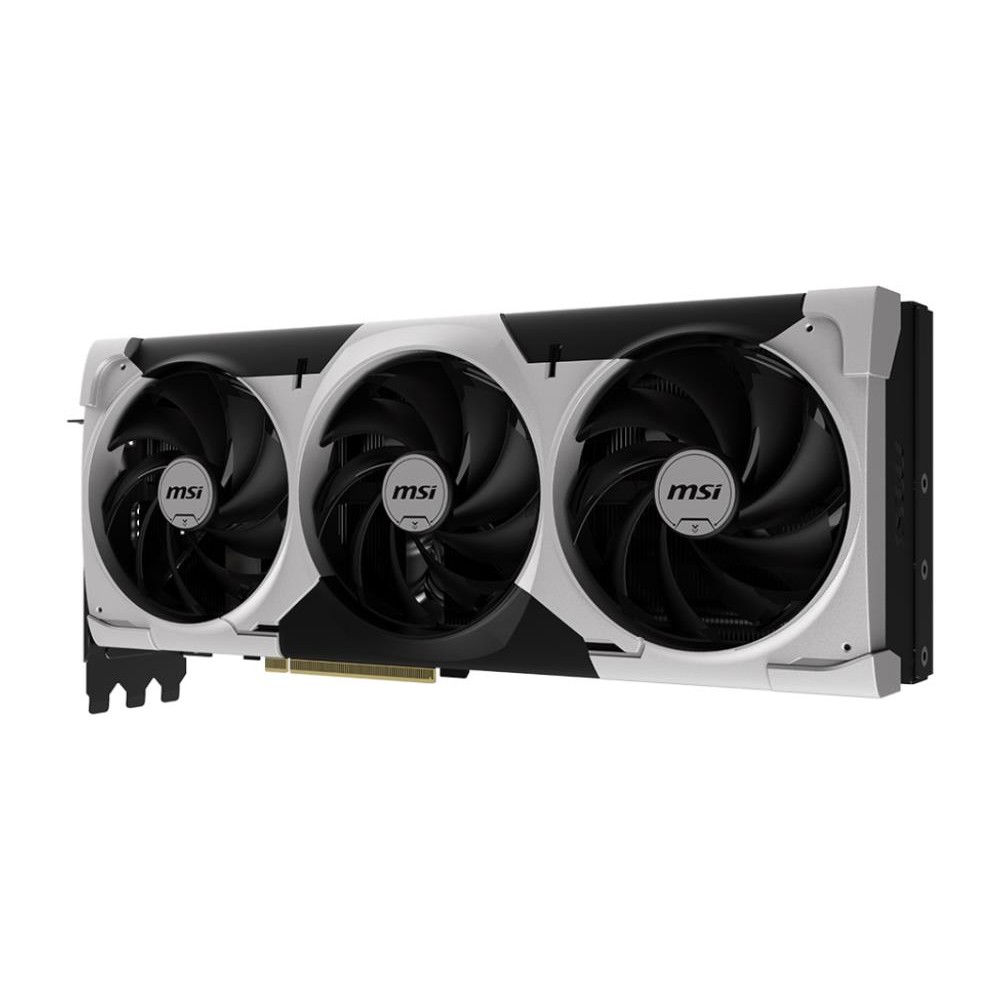

The MSI GeForce RTX 5090 32G VENTUS 3X OC (MPN: G5090-32V3C) is a high-performance desktop graphics card designed for enthusiast gaming, demanding creative applications, 3D rendering, and GPU-accelerated workloads. Powered by the NVIDIA GeForce RTX 5090 GPU, it features 32GB of GDDR7 memory, a 512-bit memory interface, and PCI Express Gen 5 connectivity.
The VENTUS 3X OC cooling system combines three fans, a large heatsink, and a metal backplate. MSI's TORX FAN 5.0 design supports high-pressure airflow to help manage heat during intensive operation. The card offers a boost clock of up to 2437 MHz, with an Extreme Performance setting of up to 2452 MHz through MSI Center.
Key Features
- NVIDIA GeForce RTX 5090 graphics processor.
- 32GB GDDR7 video memory with a 512-bit memory interface.
- 28 Gbps memory speed for high-bandwidth graphics processing.
- PCI Express Gen 5 interface.
- Triple-fan VENTUS 3X OC cooling with TORX FAN 5.0 technology.
- Boost clock up to 2437 MHz; up to 2452 MHz with MSI Center Extreme Performance mode.
- Three DisplayPort 2.1b outputs and one HDMI 2.1b output.
- Supports up to four displays and a maximum digital resolution of 7680 × 4320.
- 575W rated power consumption and one 16-pin power connector.
- 1000W recommended power supply; ATX 3.1 PSU recommended by MSI.
Technical Specifications
| Specification | Details |
|---|
| Brand | MSI |
| Part Number / MPN | G5090-32V3C |
| Product Type | Desktop Graphics Card |
| Marketing Name | GeForce RTX 5090 32G VENTUS 3X OC |
| GPU Manufacturer | NVIDIA |
| GPU Model | GeForce RTX 5090 |
| CUDA Cores | 21,760 |
| Memory Capacity | 32GB |
| Memory Type | GDDR7 |
| Memory Interface | 512-bit |
| Memory Speed | 28 Gbps |
| Boost Clock | 2437 MHz |
| Extreme Performance Clock | Up to 2452 MHz through MSI Center |
| Interface | PCI Express Gen 5 |
| Cooling System | VENTUS 3X OC triple-fan cooling with TORX FAN 5.0 |
| Video Outputs | 3 × DisplayPort 2.1b; 1 × HDMI 2.1b |
| Maximum Displays | 4 |
| Maximum Digital Resolution | 7680 × 4320 |
| Power Consumption | 575W |
| Power Connector | 1 × 16-pin |
| Recommended PSU | 1000W; ATX 3.1 PSU recommended |
| Card Dimensions (L × W × H) | 12.80 × 5.47 × 2.64 inches |
| Card Weight | 4.13 lbs |
Applications
- High-end desktop gaming and demanding graphics-intensive games.
- High-resolution gaming and multi-monitor workstation setups.
- Professional video editing, visual effects, animation, and 3D rendering.
- GPU-accelerated creative software and compatible compute workloads.
- AI development and other supported GPU-intensive applications.
Compatibility and Installation
The MSI G5090-32V3C is designed for compatible desktop computers with a PCI Express graphics slot, adequate chassis clearance, and sufficient power delivery. MSI recommends a 1000W power supply and an ATX 3.1 PSU, with the required 16-pin graphics power connection. Check your power supply's specifications and supported cable before installation.
The card measures approximately 12.80 inches long, 5.47 inches wide, and 2.64 inches high. Verify available case space, expansion-slot clearance, cooling airflow, and motherboard compatibility before purchasing. Actual performance depends on the system configuration, software, and workload.
Frequently Asked Questions
How much memory does this graphics card have?
It features 32GB of GDDR7 video memory with a 512-bit memory interface.
What power supply is recommended?
MSI recommends a 1000W power supply and recommends an ATX 3.1 PSU. The card uses one 16-pin power connector.
Which display outputs are included?
The card provides three DisplayPort 2.1b outputs and one HDMI 2.1b output.
How many displays can it support?
It supports up to four displays, with a maximum digital resolution of 7680 × 4320.
Will this card fit in my computer case?
Check your case against the card's dimensions of approximately 12.80 × 5.47 × 2.64 inches, and allow adequate clearance for the power connector and cable routing.
Is this the VENTUS 3X OC version?
Yes. MPN G5090-32V3C identifies the MSI GeForce RTX 5090 32G VENTUS 3X OC graphics card.
DC Supplies Product Note
DC Supplies recommends verifying the exact manufacturer part number, chassis clearance, power supply capacity, and required GPU power connection before ordering. Specifications and compatibility should be checked against the manufacturer's documentation for the exact model.
