Overview

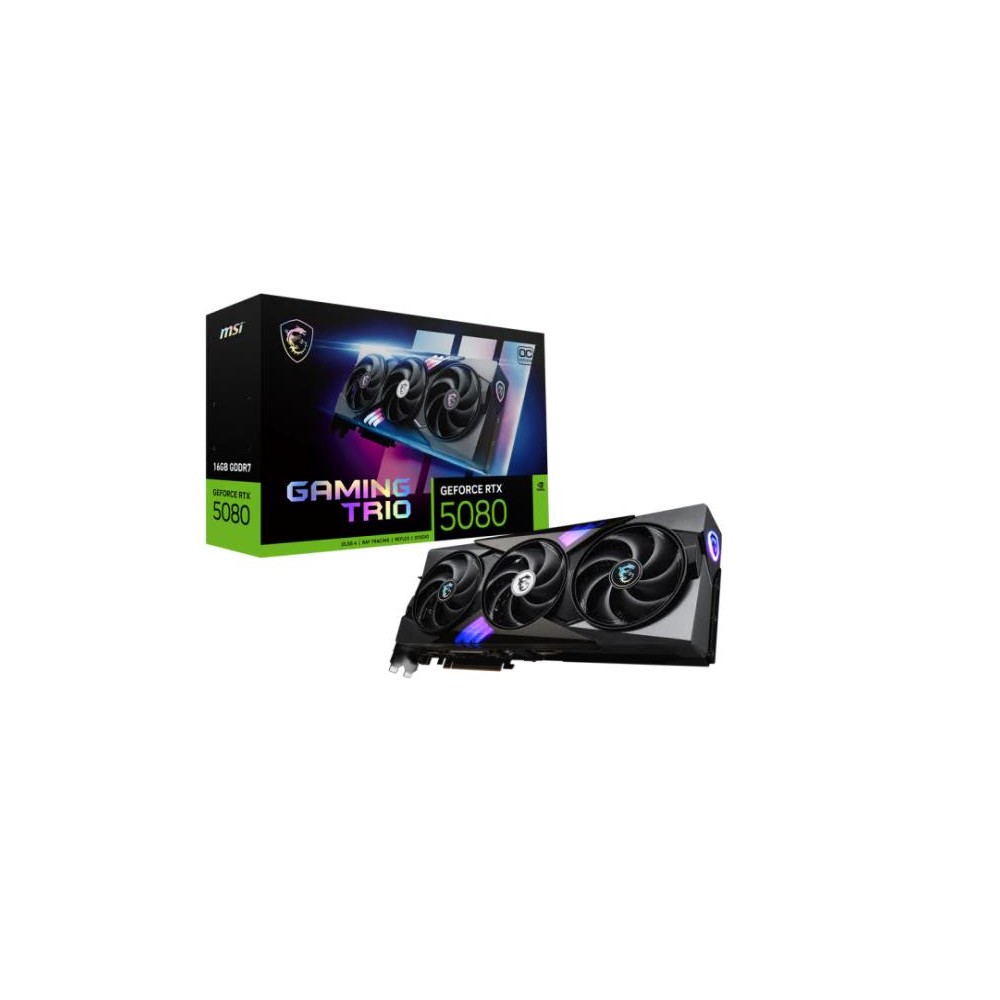

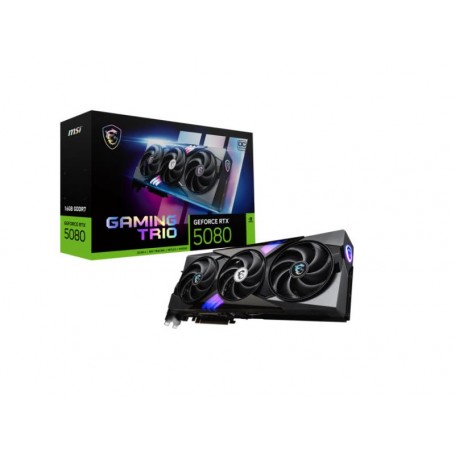

The MSI GeForce RTX 5080 16G GAMING TRIO OC (MPN: G5080-16GTC) is a high-performance graphics card designed for demanding PC gaming, creative workloads, and GPU-accelerated applications. Powered by the NVIDIA GeForce RTX 5080 GPU, it combines 16GB of GDDR7 memory, a 256-bit memory interface, and PCI Express 5.0 connectivity to deliver powerful graphics performance.
Its TRI FROZR 4 thermal design and STORMFORCE fans are engineered to improve airflow, cooling efficiency, and acoustic performance. The card features a factory boost clock of up to 2700 MHz in Gaming and Silent modes, with an Extreme Performance setting of up to 2715 MHz through MSI Center.
Key Features
- NVIDIA GeForce RTX 5080 graphics processor.
- 16GB GDDR7 video memory with a 256-bit memory bus.
- 30 Gbps memory speed for high-bandwidth graphics workloads.
- Boost clock up to 2700 MHz in Gaming and Silent modes.
- TRI FROZR 4 cooling architecture with STORMFORCE fans.
- PCI Express 5.0 interface for compatible desktop systems.
- Three DisplayPort 2.1b outputs and one HDMI 2.1b output.
- Supports up to four displays and a maximum digital resolution of 7680 × 4320.
- Requires one 16-pin power connector; recommended power supply is 850W.
Technical Specifications
| Specification | Details |
|---|
| Brand | MSI |
| Part Number / MPN | G5080-16GTC |
| Product Type | Desktop Graphics Card |
| Marketing Name | GeForce RTX 5080 16G GAMING TRIO OC |
| GPU Manufacturer | NVIDIA |
| GPU Model | GeForce RTX 5080 |
| Memory Capacity | 16GB |
| Memory Type | GDDR7 |
| Memory Bus | 256-bit |
| Memory Speed | 30 Gbps |
| Boost Clock | Up to 2700 MHz (Gaming and Silent modes) |
| Extreme Performance Clock | Up to 2715 MHz through MSI Center |
| CUDA Cores | 10,752 |
| Interface | PCI Express 5.0 |
| Cooling | TRI FROZR 4 with STORMFORCE fans |
| Video Outputs | 3 × DisplayPort 2.1b; 1 × HDMI 2.1b |
| Maximum Displays | 4 |
| Maximum Digital Resolution | 7680 × 4320 |
| Power Consumption | 360W |
| Power Connector | 1 × 16-pin |
| Recommended PSU | 850W |
| Card Dimensions (L × W × H) | 13.31 × 5.51 × 1.97 inches |
| Card Weight | Approximately 3.00 lbs |
Applications
- High-performance desktop gaming and demanding graphics workloads.
- High-resolution gaming and multi-monitor desktop setups.
- Video editing, 3D rendering, animation, and other GPU-accelerated creative tasks.
- Compatible AI and compute applications that support the GPU and its software ecosystem.
Compatibility and Installation
This graphics card is intended for compatible desktop PCs with a PCI Express graphics slot, sufficient internal clearance, and appropriate power delivery. MSI recommends an 850W power supply, and the system must provide the required 16-pin GPU power connection. Check your case dimensions, PSU specifications, power-cable requirements, and motherboard compatibility before purchasing. Actual performance depends on the system configuration, software, resolution, and workload.
Frequently Asked Questions
How much graphics memory does the MSI G5080-16GTC have?
It includes 16GB of GDDR7 video memory on a 256-bit memory interface.
What power supply is recommended?
MSI specifies an 850W recommended power supply and one 16-pin graphics-card power connector. Confirm your PSU and cable are suitable for the card.
Which display connections are available?
The card provides three DisplayPort 2.1b outputs and one HDMI 2.1b output.
How many monitors can it support?
The listed maximum is four displays, depending on the display configuration and supported resolutions.
Will it fit in every desktop PC?
No. The card measures approximately 13.31 inches long, 5.51 inches wide, and 1.97 inches high. Verify chassis clearance, slot space, and power requirements before installation.
Is this the white edition?
No. MPN G5080-16GTC identifies the standard GAMING TRIO OC model. The white edition uses a different part number, G5080-16GTCW.
DC Supplies Product Note
DC Supplies recommends verifying the exact manufacturer part number, case clearance, power supply capacity, and required power connector before ordering. Specifications and supported features should be confirmed against the manufacturer's documentation for the exact model.
