Detailed Specifications

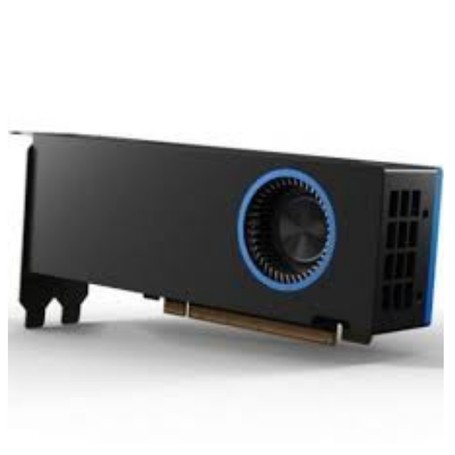

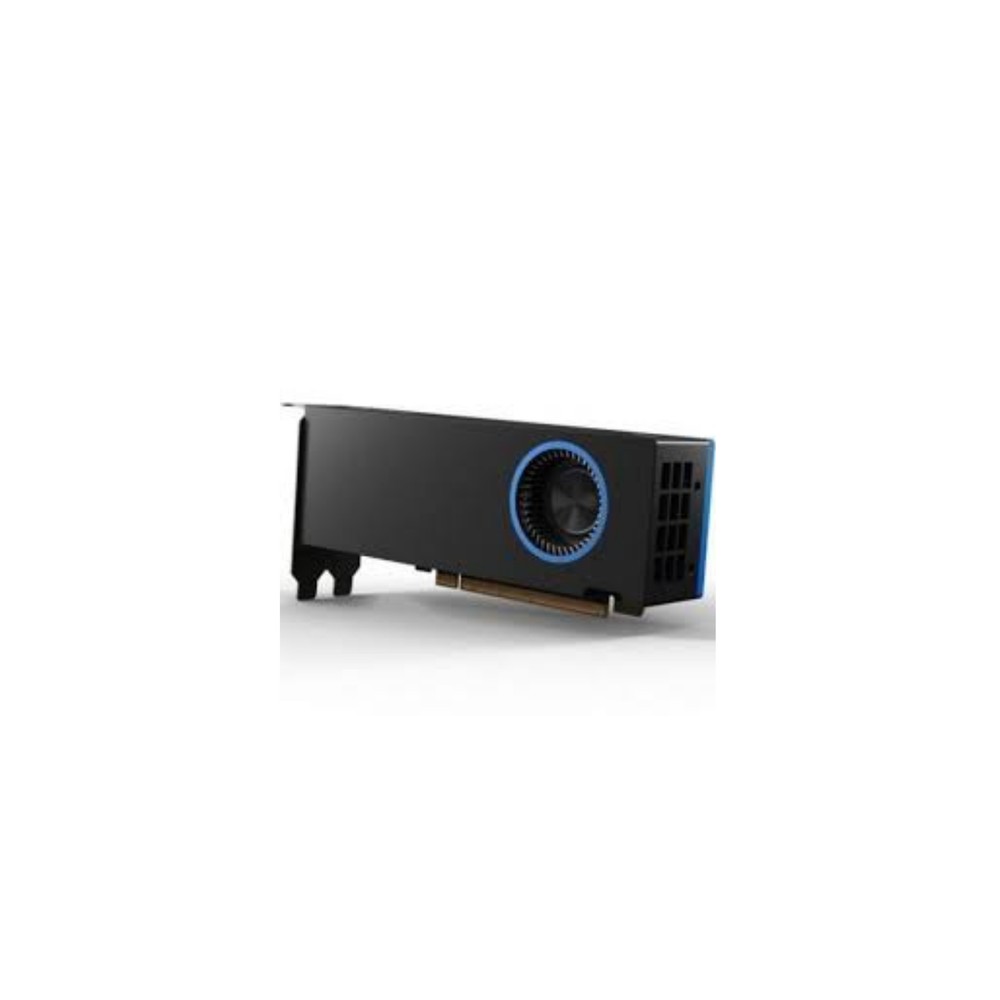

Intel 33P6PEB0BB Workstation Graphics Card
Overview :
The Intel 33P6PEB0BB is a professional-grade Intel Arc Pro B50 workstation graphics card packaged in a small form factor (SFF) footprint.Engineered for architecture, engineering, construction (AEC), and data inference computing, this GPU solves physical integration constraints within low-profile workstation towers. It gives hardware deployment teams a stable, certified platform for CAD design, 3D architectural modeling, and entry-level generative AI software workloads.
Built on the advanced Xe2 microarchitecture, the hardware features 16GB of dedicated GDDR6 memory operating over a 128-bit bus width to streamline complex calculations without host pipeline choking.Graphics rendering operations utilize 16 integrated Ray Tracing units alongside 128 Intel Xe Matrix Extensions (XMX) AI engines capable of delivering up to 170 TOPS of machine learning acceleration.Video editors and broadcasting technicians benefit from native dual-encode hardware media transcoders supporting AV1, H.264, and H.265 (HEVC) industrial video codecs.
This dual-slot, low-profile card interfaces via a high-bandwidth PCIe 5.0 x8 slot configuration, drawing a maximum of 70 watts of total board power directly from the motherboard rail without external auxiliary power cables.The device provides multiple independent software vendor (ISV) certifications to maintain runtime validation across professional toolsets like Autodesk and Adobe. Do not deploy this graphics card in legacy system chassis restricted to single-slot expansions or in server platforms requiring headless compute without mini-DisplayPort monitor attachments.
Key Features :
Low-profile SFF layout inserts easily into space-constrained towers.
16GB GDDR6 dedicated frame buffer accommodates massive engineering datasets.
Integrated XMX AI engines yield 170 TOPS for local inference processes.
Quad mini-DisplayPort 2.1 array supports four independent 8K monitors.
70W bus-powered design removes the need for auxiliary power wires.
Specifications :
| Specification Field | Technical Data |
| Brand | Intel |
| Part Number | 33P6PEB0BB |
| Product Type | Workstation Graphics Card |
| GPU Architecture | Intel Arc Pro B50 (Xe2 Microarchitecture) |
| Video Memory | 16 GB GDDR6 |
| Memory Interface Width | 128-bit |
| Memory Bandwidth | 224 GB/s |
| Host Interface | PCI Express 5.0 x8 |
| Display Outputs | 4x Mini DisplayPort 2.1 |
| Max Digital Resolution | 7680 x 4320 @ 60Hz |
| Ray Tracing Units | 16 |
| Intel XMX Engines | 128 |
| Form Factor | SFF Plug-in Card (Dual-Slot) |
| Total Board Power (TBP) | 70 Watts |
| Minimum Power Requirement | 280 Watt PSU |
