Detailed Specifications

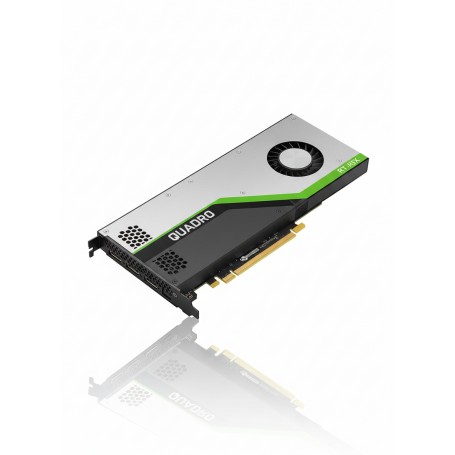

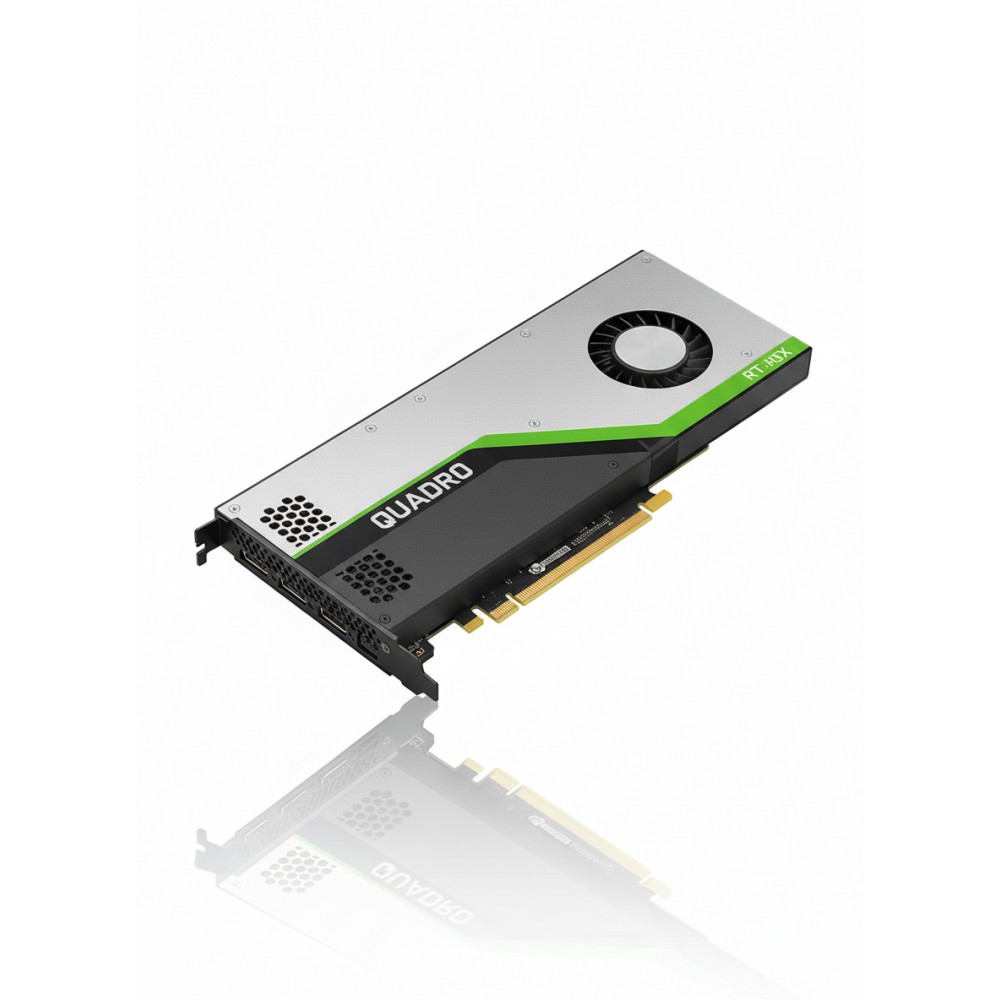

HP P11603-001 - Professional Graphics Accelerator / Quadro RTX 4000
Overview :
The HP P11603-001 is a workstation graphics card based on NVIDIA's Quadro RTX 4000 GPU architecture, intended for professional engineers and 3D designers working in CAD, visualization, VR, or AI-accelerated workflows. It offers 8 GB of GDDR6 memory and a 256-bit memory interface, enabling support for large datasets and high-resolution displays. The single-slot full-height form factor means it fits in many workstation chassis where space is constrained. Typical deployment scenarios include design studios, branch engineering workstations, or edge compute nodes requiring GPU-accelerated rendering or inference. It is compatible with PCI Express 3.0 x16 systems, and integrates with NVIDIA's professional driver stack and ISV-certified applications for further reliability in production environments.
Key Features :
8 GB GDDR6 onboard memory for large model datasets
256-bit memory interface with up to 416 GB/s bandwidth
2,304 CUDA cores + 36 RT cores + 288 Tensor cores
Requires single 8-pin auxiliary power connector
Outputs: 3× DisplayPort 1.4 + 1× USB-C/VirtualLink
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | P11603-001 |
| Product Type | Graphics Card (Professional Workstation GPU) |
| GPU Model | NVIDIA Quadro RTX 4000 |
| Memory Size | 8 GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Bandwidth | Up to 416 GB/s |
| CUDA Cores | 2,304 |
| Tensor Cores | 288 |
| RT Cores | 36 |
| Bus Interface | PCI Express 3.0 x16 |
| Max Board Power (TDP) | 160 W |
| Form Factor (approx) | 4.4 in (H) × 9.5 in (L) |
| Power Connector | 1 × 8-pin auxiliary |
| Display Outputs | 3× DisplayPort 1.4 + 1× USB-C/VirtualLink |
