Overview

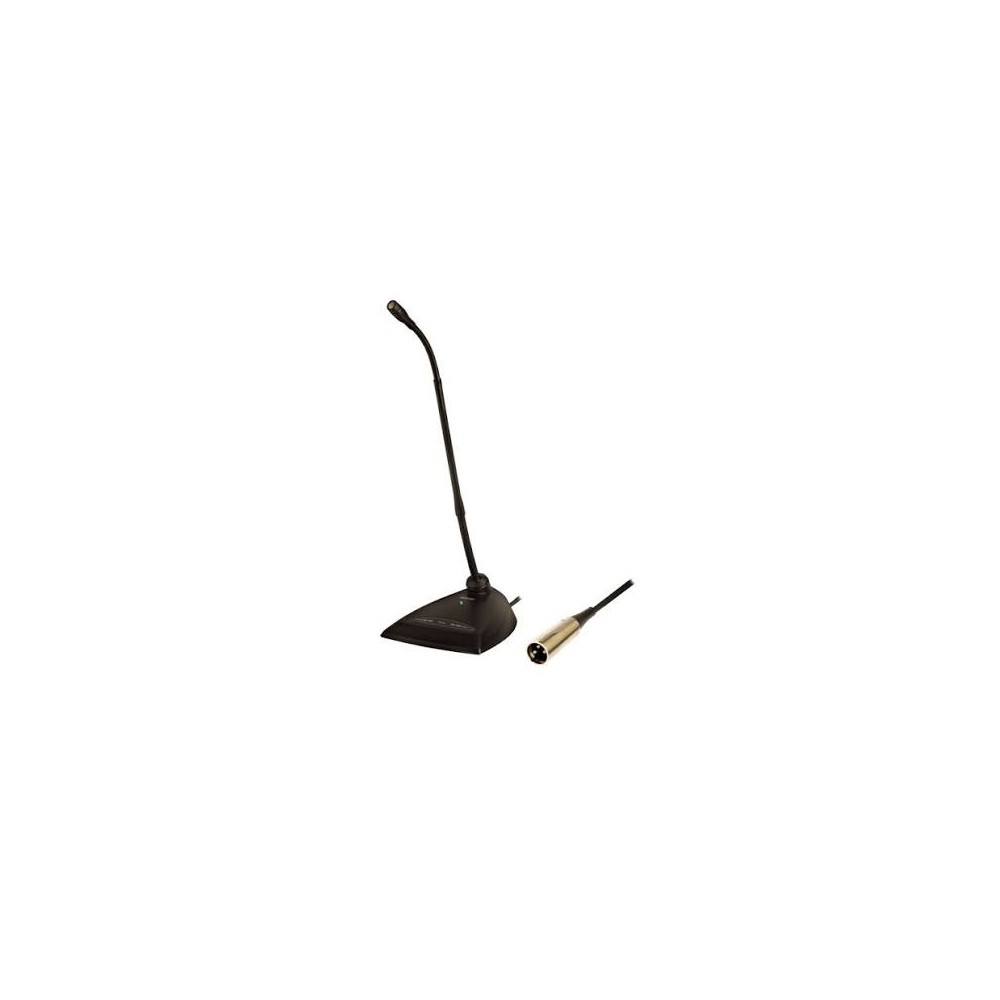

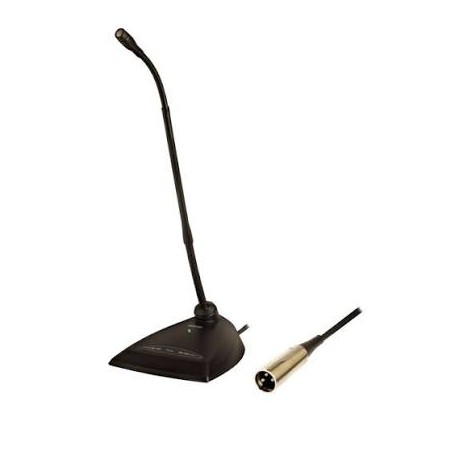

The Shure MX418D/C is an 18-inch Microflex gooseneck microphone with a cardioid electret-condenser cartridge and integrated desktop base. It is designed for speech applications including lecterns, podiums, conference rooms, courtrooms, and other presentation environments.
Microphone Performance
The cardioid pickup pattern provides a 130-degree pickup angle and is designed to capture speech from the intended sound source while reducing pickup from off-axis directions. The microphone has a 50 Hz to 17 kHz frequency response, 123 dB maximum SPL, 65 dB signal-to-noise ratio, and 94 dB dynamic range.
Desktop Base and Controls
The integrated desktop base provides a stable mounting platform and includes a programmable mute switch with LED indication. The switch can be configured for momentary or toggle operation using the base controls. Logic input and output connections support remote control or use with automatic microphone mixers.
Connectivity and Power
The microphone uses a balanced three-pin male XLR output through its attached 3 m cable. It requires 11–52 VDC phantom power at 2.0 mA. The balanced transformerless output is designed to provide resistance to electromagnetic interference during longer cable runs.
Cartridge
The MX418D/C is supplied with the cardioid R185 cartridge. Microflex cartridges are interchangeable, allowing compatible cartridges with different pickup patterns to be used when the installation requires an alternative directional characteristic.
Key Features
- 18-inch flexible gooseneck microphone with cardioid pickup pattern
- Electret-condenser transducer with 50 Hz to 17 kHz frequency response
- Integrated desktop base with programmable mute switch and LED indicator
- Attached 3 m cable with balanced three-pin male XLR connector
- Logic input and output connections for remote control applications
Applications
The MX418D/C is suited to lecterns, podiums, conference tables, courtrooms, houses of worship, presentation spaces, and other speech-focused sound reinforcement installations.
DC Supplies Product Note
The MX418D/C specifically combines the 18-inch MX418 gooseneck with an integrated desktop base. The D/C configuration should not be confused with MX418/C, which uses a separate mounting arrangement rather than the integrated desktop base.
Specifications
| Specification | Details |
|---|
| Brand | Shure |
| Part Number / MPN | MX418D/C |
| Product Type | Gooseneck Condenser Microphone |
| Series | Microflex MX400D |
| Gooseneck Length | 18 inches / 457 mm |
| Transducer Type | Electret Condenser |
| Polar Pattern | Cardioid |
| Pickup Angle | 130° at -3 dB |
| Frequency Response | 50 Hz–17 kHz |
| Sensitivity | -34 dBV/Pa at 1 kHz |
| Maximum SPL | 123 dB SPL |
| Signal-to-Noise Ratio | 65 dB |
| Dynamic Range | 94 dB |
| Output Impedance | 150 ohms rated; 180 ohms actual |
| Output Configuration | Active balanced |
| Connector | 3-pin male XLR |
| Cable Length | 3 m / 10 ft attached cable |
| Phantom Power | 11–52 VDC, 2.0 mA |
| Mute Switch | Programmable momentary or toggle operation |
| Logic Connections | LED IN and LOGIC OUT |
| Operating Temperature | -18°C to 57°C |
| Relative Humidity | 0–95% |
| Microphone Dimensions | Diameter 0.47 inches × 18.66 inches microphone length |
| Desktop Base Dimensions | L 6.38 × W 4.57 × H 2.05 inches |
| Weight | 1.82 lbs |
FAQs
What type of microphone is the Shure MX418D/C?
It is an electret-condenser gooseneck microphone with a cardioid pickup pattern and integrated desktop base.
How long is the MX418D/C gooseneck?
The gooseneck is 18 inches, or approximately 457 mm, in length.
Does the MX418D/C require phantom power?
Yes. The microphone requires 11–52 VDC phantom power at 2.0 mA.
What connector does the MX418D/C use?
It uses a balanced three-pin male XLR connector on its attached 3 m cable.
Does the MX418D/C have a mute switch?
Yes. Its desktop base includes a programmable mute switch with LED indication and configurable momentary or toggle operation.
