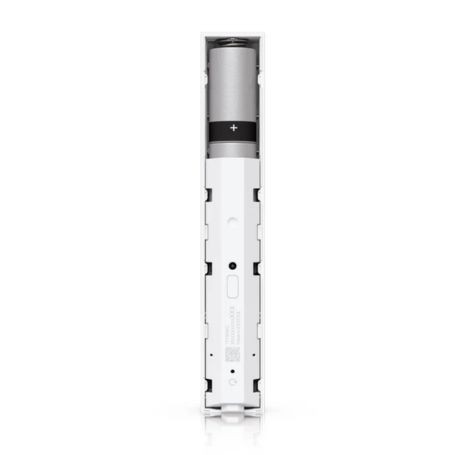

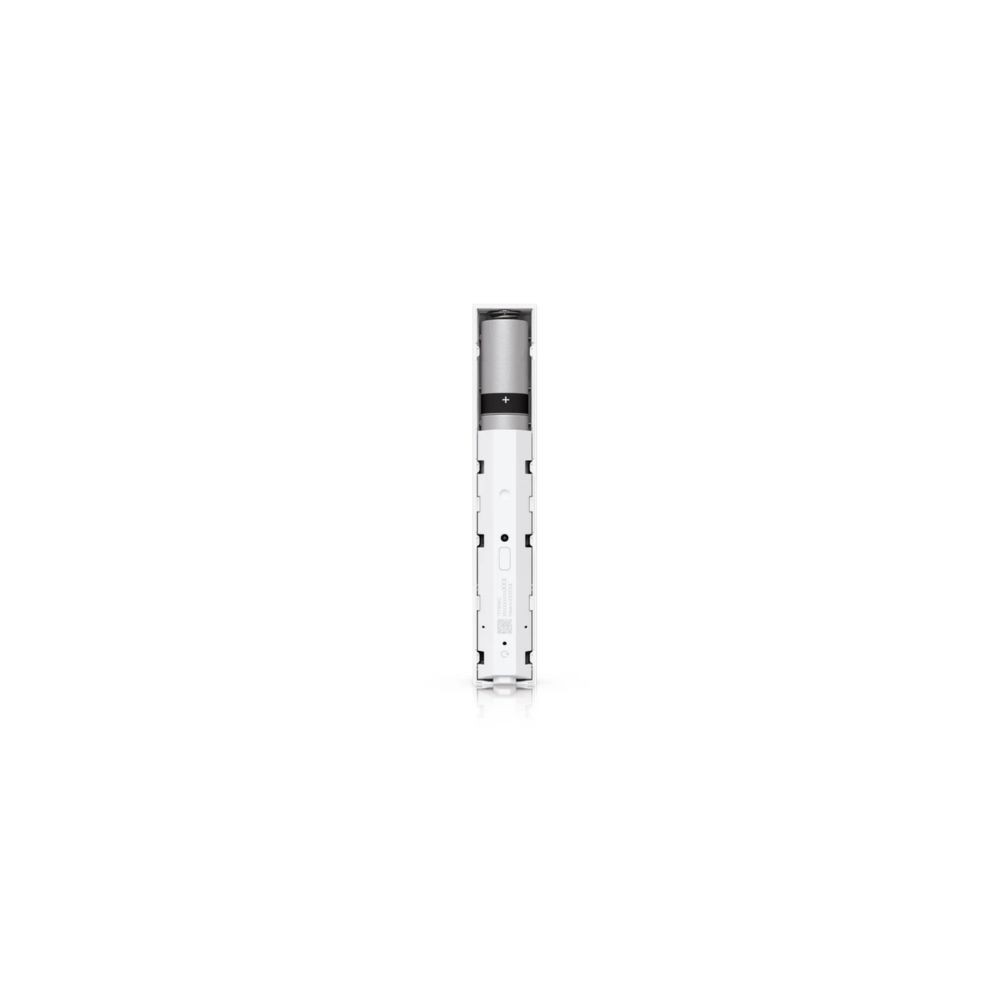

Ubiquiti USL-GlassBreak UniFi Protect Glass Break Sensor
Overview
The Ubiquiti USL-GlassBreak is a battery-powered glass break sensor designed for UniFi Protect deployments. It combines advanced glass break detection with an integrated PIR sensor and communicates through Ubiquiti's proprietary SuperLink wireless technology. :contentReference[oaicite:1]{index=1}
The sensor is designed for monitoring compatible glass in security applications and supports a maximum SuperLink range of up to 2 km (1.2 miles). A SuperLink Gateway is required for operation. :contentReference[oaicite:2]{index=2}
Glass Break Detection
The USL-GlassBreak includes a built-in microphone for acoustic glass break detection and supports plate, tempered, obscured, laminated, coated, and wired glass. Supported glass sizes range from 280 x 356 mm (11 x 14 inches) to 1067 x 1626 mm (42 x 64 inches). :contentReference[oaicite:3]{index=3}
Supported glass thicknesses are 2.4 mm (3/32 inch), 3.2 mm (1/8 inch), 4.8 mm (3/16 inch), and 6.4 mm (1/4 inch). These specifications should be checked against the glass being monitored before installation. :contentReference[oaicite:4]{index=4}
SuperLink Connectivity
The sensor uses proprietary SuperLink connectivity for communication with the UniFi Protect environment. The US version operates at 915.6–927.6 MHz, with a maximum SuperLink transmit power of 14 dBm and a maximum specified range of 2 km (1.2 miles). :contentReference[oaicite:5]{index=5}
UniFi Protect is the specified application suite, with support through the UniFi Protect web application and UniFi Protect iOS and Android mobile applications. :contentReference[oaicite:6]{index=6}
Installation and Hardware
The USL-GlassBreak supports both adhesive and screw mounting. The hardware includes a function button, factory reset control, tamper switch, status LED, and signal LED. The enclosure and mount are made from polycarbonate. :contentReference[oaicite:7]{index=7}
The sensor operates from two CR123A lithium batteries and has a specified battery life of up to three years. Maximum power consumption is 0.2 W at a supported voltage of 3 V. :contentReference[oaicite:8]{index=8}
Key Features
- Advanced glass break detection with integrated microphone
- Integrated PIR motion sensor
- Proprietary SuperLink wireless connectivity with up to 2 km (1.2-mile) range
- Battery-powered operation using two CR123A lithium batteries
- Adhesive and screw mounting options
Applications
The USL-GlassBreak can be deployed as part of a UniFi Protect security system where glass break detection and motion sensing are required. It is suitable for monitoring compatible windows and other glass installations that fall within the manufacturer's specified glass types, dimensions, and thicknesses. :contentReference[oaicite:9]{index=9}
DC Supplies Product Note
A SuperLink Gateway is required for the USL-GlassBreak. For installation planning, verify both the regional SuperLink operating frequency and the glass type, dimensions, and thickness against the manufacturer's specifications for the intended deployment. :contentReference[oaicite:10]{index=10}
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | USL-GlassBreak |
| Product Type | Glass Break Sensor |
| UniFi Application Suite | Protect |
| Connectivity | SuperLink (Proprietary) |
| Operating Frequency | US: 915.6–927.6 MHz |
| Maximum TX Power | 14 dBm via SuperLink |
| Maximum Range | 2 km (1.2 miles) via SuperLink |
| Microphone | Yes |
| PIR Sensor | Yes |
| Detected Glass Type | Plate, tempered, obscured, laminated, coated, wired |
| Supported Glass Size | 280 x 356 mm (11 x 14 inches) to 1067 x 1626 mm (42 x 64 inches) |
| Supported Glass Thickness | 2.4 mm (3/32 inch), 3.2 mm (1/8 inch), 4.8 mm (3/16 inch), 6.4 mm (1/4 inch) |
| Maximum Power Consumption | 0.2 W |
| Supported Voltage | 3 V |
| Power Method | (2) Lithium CR123A batteries |
| Battery Life | Up to 3 years |
| Mounting | Adhesive and screw mount |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Buttons | Function button, factory reset, tamper switch |
| LEDs | Status and signal LEDs |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Dimensions with Wall Mount | 134.5 x 22.5 x 24.8 mm (5.3 x 0.9 x 1 inch) |
| Dimensions with Corner Mount | 134.5 x 22.5 x 27.9 mm (5.3 x 0.9 x 1.1 inches) |
| Weight with Mount and Batteries | 70 g (2.5 oz) |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Mobile Applications | UniFi Protect iOS and Android |
FAQs
Does the USL-GlassBreak require a SuperLink Gateway?
Yes. Ubiquiti specifies that a SuperLink Gateway is required for the USL-GlassBreak. :contentReference[oaicite:11]{index=11}
What types of glass are supported?
The sensor supports plate, tempered, obscured, laminated, coated, and wired glass within the specified size and thickness ranges. :contentReference[oaicite:12]{index=12}
What is the maximum SuperLink range?
Ubiquiti specifies a maximum SuperLink range of up to 2 km (1.2 miles). Actual wireless performance can depend on the deployment environment. :contentReference[oaicite:13]{index=13}
Does the USL-GlassBreak include motion sensing?
Yes. The sensor includes an integrated PIR sensor in addition to its glass break detection capability. :contentReference[oaicite:14]{index=14}
What batteries does the USL-GlassBreak use?
The sensor uses two CR123A lithium batteries and has a specified battery life of up to three years. :contentReference[oaicite:15]{index=15}
