Detailed Specifications

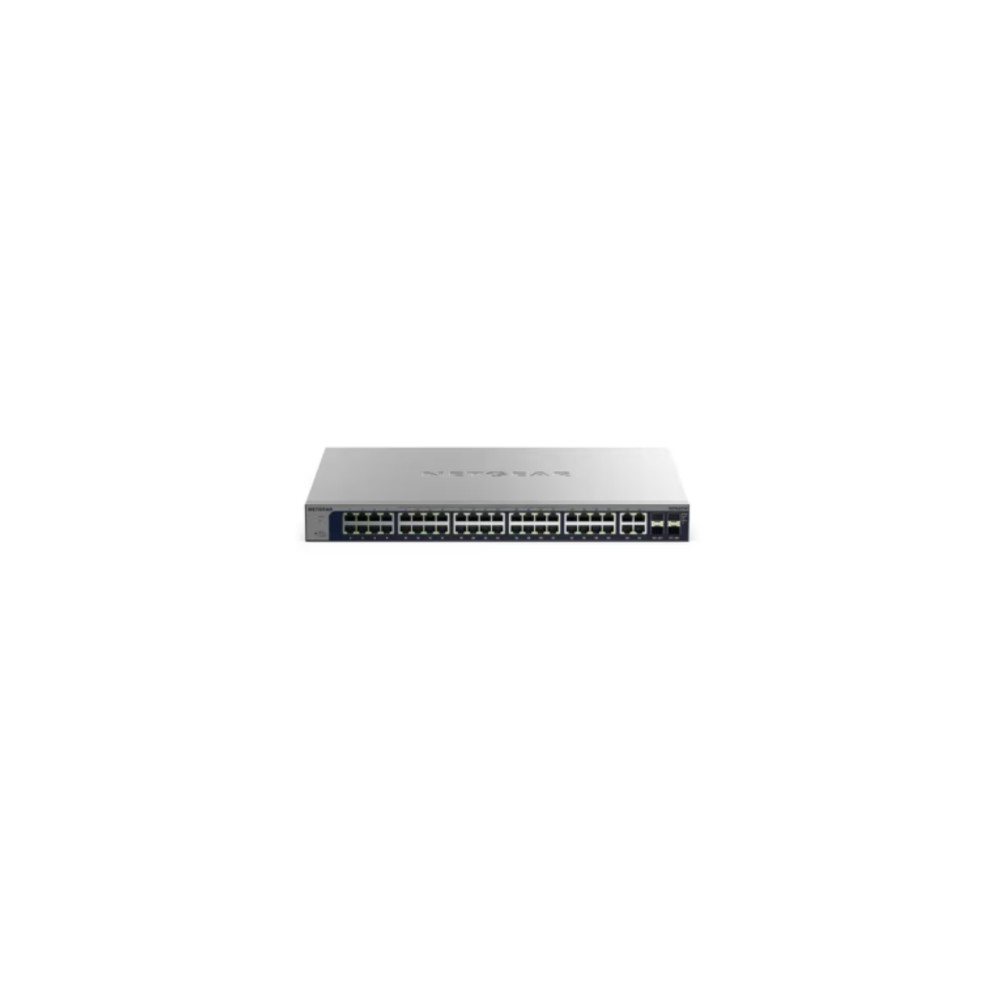

NETGEAR XS748TM-100NAS 48-Port 10G/Multi-Gigabit Smart Cloud Switch
Overview :
The NETGEAR XS748TM is a 48-port smart managed switch designed for demanding business networks requiring high-speed connectivity for workstations, servers, and network-attached storage . It addresses the bandwidth bottleneck in network aggregation layers, providing a cost-effective upgrade path to 10-Gigabit speeds . The switch is ideal for deployment as a network center or aggregation switch in medium-to-large enterprise environments . This switch is not suitable for small networks or deployments that do not require 10G connectivity, as it may exceed performance and cost requirements .
Key Features :
44 copper ports deliver speeds up to 10G for high-bandwidth devices
4 dedicated 10G SFP+ ports for fiber uplinks or stacking
Advanced L2+/L3 Lite features including VLANs, QoS, and DHCP server
NETGEAR Insight cloud management for remote monitoring and configuration
Full suite of management options: web GUI, Smart CLI, SSH, and Telnet
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | XS748TM-100NAS |
| Product Type | Smart Managed Switch |
| Ports | 44 x 10G/Multi-Gig copper, 4 x 10G SFP+ uplink |
| Non-Blocking Bandwidth | 960 Gbps |
| Forwarding Rate (64-byte) | 714.2 Mpps |
| MAC Address Table | 16K entries |
| Packet Buffer | 2 MB |
| VLANs Supported | 512 |
| Routing Protocol | Static IPv4/IPv6 routing, IGMP |
| Management | Insight Cloud, web GUI, CLI, SSH, SNMP v1/2c/3, Telnet |
| Jumbo Frame Support | 12288 bytes |
| Processor | 1 x Quad Core 1.2 GHz |
| RAM | 512 MB |
| Flash Memory | 64 MB |
| Fans | 4 |
| Acoustic Noise | 26.9 dBA idle, 44.1 dBA full load |
| Power Consumption (Max) | 230.3 W |
| Operating Temperature | 0° to 50° C |
| MTBF | 174,197 hours |
| Warranty | NETGEAR Limited Lifetime Hardware Warranty |
