Detailed Specifications

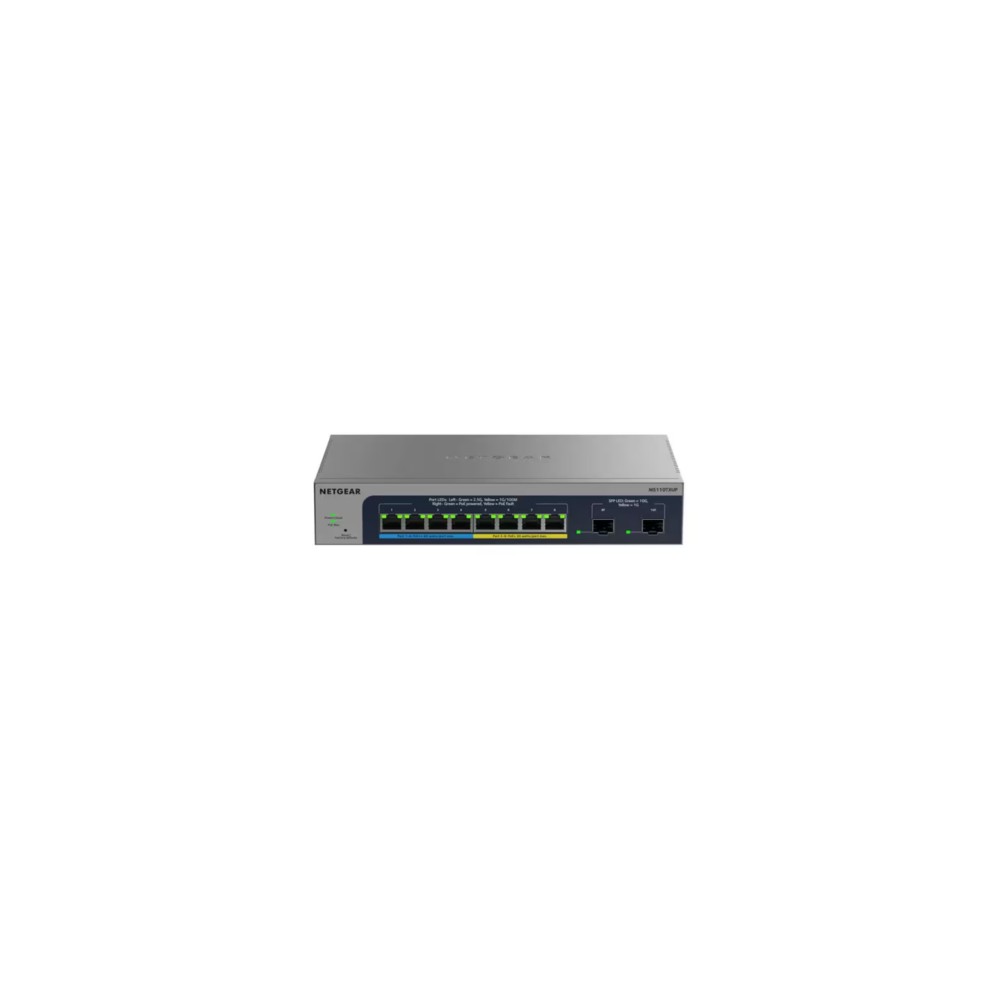

NETGEAR MS110TXUP-100NAS 8-Port 2.5G PoE Smart Managed Switch
Overview :
The NETGEAR MS110TXUP is a 10-port Layer 3 smart managed switch designed for small-to-medium businesses and enterprise edge deployments requiring high-speed connectivity and robust Power over Ethernet (PoE) capacity. It solves the bandwidth bottleneck for Wi-Fi 6/6E access points, high-performance IP cameras, and VoIP phone systems by delivering 2.5Gbps speeds across all eight copper ports and a total PoE budget of 230W . It is ideal for deployment in classrooms, conference rooms, retail stores, and open office spaces, not just wiring closets . The MS110TXUP should not be used in environments requiring more than 40°C ambient temperature, as it is rated for 0° to 40°C operation .
Key Features :
8x 2.5G ports with 4x PoE+ and 4x PoE++ support
2x 10G SFP+ fiber uplinks for high-bandwidth core connectivity
230W total PoE budget for powering high-performance devices
Fanless, silent operation (0 dBA) ideal for noise-sensitive spaces
NETGEAR Insight cloud management for remote configuration and monitoring
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | MS110TXUP-100NAS |
| Product Type | Smart Managed Switch with PoE++ |
| Ports | 8x 1G/2.5G copper, 2x 10G SFP+ |
| PoE Ports | 8 ports total (4x PoE+, 4x PoE++ Ultra60) |
| PoE Budget | 230W |
| Switching Capacity | 140 Gbps |
| MAC Table Size | 16K |
| VLANs Supported | 256 |
| Static Routing | Yes (Lite L3 feature set) |
| Management | NETGEAR Insight Cloud, SNMP, Web, CLI (Telnet/SSH) |
| Mounting | Desktop, wallmount, or rackmount |
| Power Supply | External power adapter included |
| Power Consumption | 20.9W (no PoE), 273.4W (with PoE MAX) |
| Fan | None (fanless) |
| Noise Level | 0 dBA @ 25°C |
| Operating Temperature | 0° to 40°C |
| MTBF | 1,528,747 hours |
| Warranty | NETGEAR Limited Lifetime Hardware Warranty |
