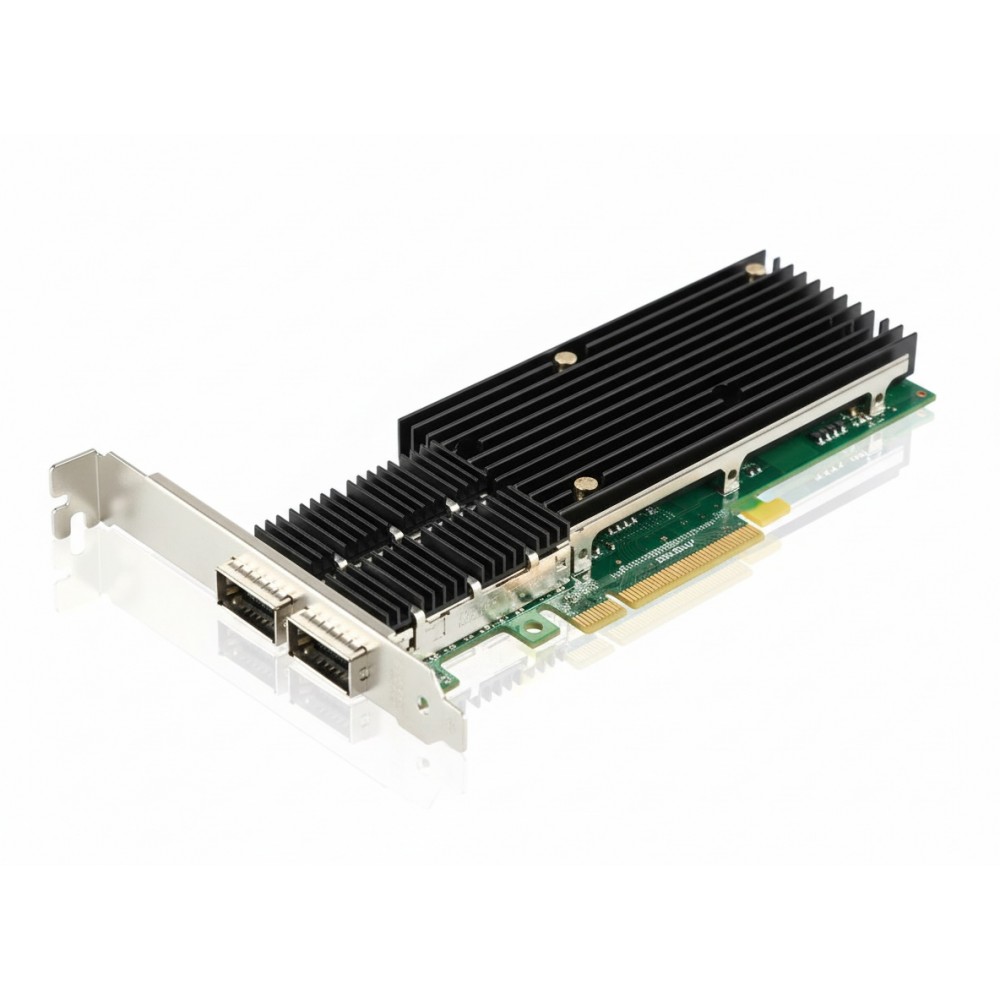

HPE 764736-001 10GB/40GB 2P 544+QSFP Network Adapter View larger

HPE 764736-001 InfiniBand FDR/10Gb/40Gb 2-Port 544+QSFP Gigabit Ethernet Adapter

New

In Stock

10/40 Gb dual‑port QSFP InfiniBand / Ethernet adapter
×




$28.95

  • New
  • Refurbished

Detailed Specifications

HPE 764736‑001 544+ QSFP 10 Gb / 40 Gb Dual‑Port Adapter

Overview

The HPE 764736‑001 is a dual‑port network adapter supporting both 10 Gb Ethernet and 40 Gb InfiniBand FDR via QSFP interfaces. It is designed for high-performance and low-latency environments such as HPC clusters, storage fabrics, and virtualized data centers. The adapter uses a PCI‑Express ×8 interface and offers RDMA (RoCE) support to offload CPU and improve data-transfer efficiency. It is compatible with HPE ProLiant Gen9 and Gen10 servers and integrates into enterprise data-center networks requiring high throughput and low-latency fabric.

Key Features

  • Two QSFP ports supporting 10 Gb or 40 Gb operation

  • InfiniBand FDR support for low-latency cluster communications

  • RoCE (RDMA over Converged Ethernet) capability

  • PCI Express 3.0 ×8 interface for high throughput

  • Compatible with Gen9 / Gen10 HPE ProLiant server families

Technical Specifications

SpecificationDetails
Brand HPE
Part Number 764736‑001
Product Type Network Adapter / HBA
Network Ports 2 × QSFP (10 Gb Ethernet / 40 Gb InfiniBand FDR)
Data Transfer Rate Up to 56 Gb/s (FDR)
Host Interface PCI Express 3.0 ×8
RoCE Support Yes, RDMA over Converged Ethernet
Supported Protocols 10 Gb Ethernet, 40 Gb Ethernet, InfiniBand FDR
Offload Capabilities TCP/IP, iSCSI, FCoE
Jumbo Frames Supported (up to 9,000 bytes)
Operating Temperature 0 °C to 55 °C
Form Factor Plug-in PCIe card, low-profile/full-height bracket
Power Consumption Approx. 13.6–14.2 W
Weight Approx. 2 kg (~4.4 lbs)
Application HPC, storage clustering, virtualized data-center networks
Interface Connector Type QSFP (Quad Small Form-factor Pluggable)
