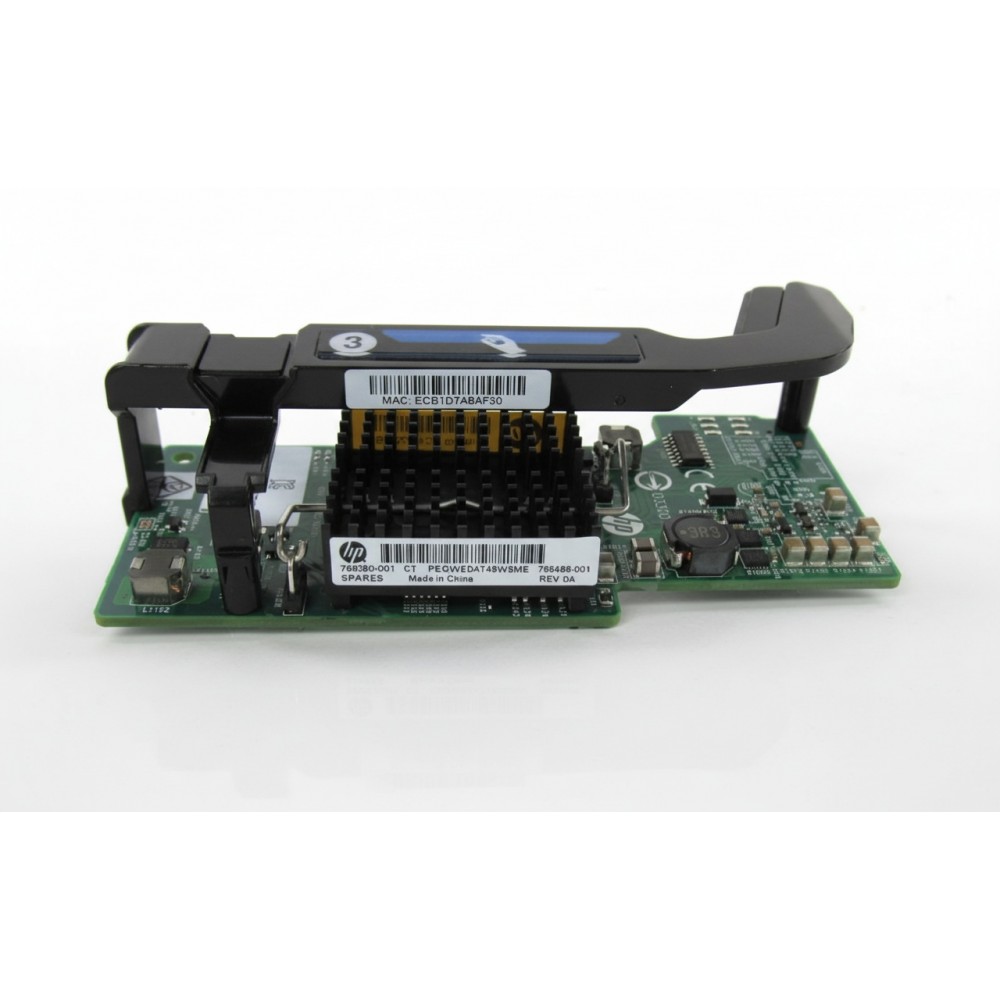

HPE 766488-001 FlexFabric 10GB 2-Port 536FLB Network Adapter View larger

HPE 766488-001 FlexFabric 10Gb 2-Port 536FLB Gigabit Ethernet Adapter

New

In Stock

10 GbE 2‑port FlexFabric FlexibleLOM adapter
×




$24.00

  • New
  • Refurbished

Detailed Specifications

HPE 766488‑001 FlexFabric 10 Gb 2‑Port 536FLB Adapter

Overview

The HPE 766488‑001 is a high‑performance FlexibleLOM (FLR) network adapter providing two 10 Gb SFP+ ports. It supports FlexFabric, enabling converged LAN and storage traffic on a single adapter, reducing cabling and simplifying infrastructure. The card uses a PCI Express 3.0 ×8 interface to deliver full throughput, and supports virtualization with SR‑IOV and FlexNIC for partitioning physical ports into multiple logical NICs. It is well suited for hyper‑converged, virtualized, and SAN-enabled environments.

Key Features

  • Dual 10 Gb SFP+ ports for fiber or DAC

  • FlexFabric for converged network and SAN (FCoE/iSCSI)

  • FlexibleLOM 536FLB form factor to save PCIe slots

  • Virtualization support: SR‑IOV, FlexNIC / NPAR

  • Advanced offload: TCP/IP, FCoE, iSCSI, LSO / TSO, RSS

Technical Specifications

SpecificationDetails
Brand HPE
Part Number 766488‑001
Product Type Network Adapter / Converged Adapter (CNA)
Model / Series 536FLB
Host Interface PCI Express 3.0 ×8
Network Ports 2 × 10 Gb SFP+
Data Rate 10 Gb/s per port
Chipset QLogic 57840S
Virtualization SR‑IOV, FlexNIC / NPAR
Offload Features FCoE, iSCSI, TCP/UDP offload, LSO / TSO, RSS
Supported Standards IEEE 802.1Q, 802.3, 802.3ad, 802.3ae
Power Consumption About 12 W typical
Compatible Media SFP+ SR/LR optics or DAC cables
Compatible Servers HPE ProLiant blades and rack servers with FlexibleLOM slot
Operating Temperature 0 °C to 55 °C
