Detailed Specifications

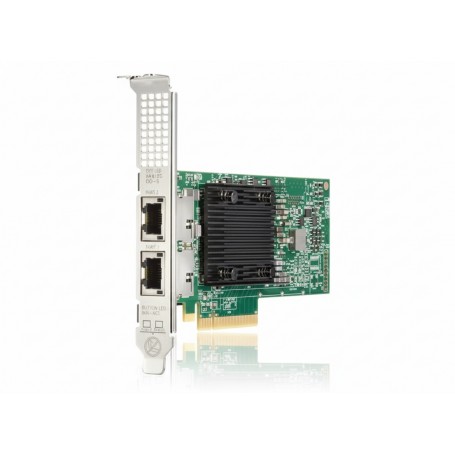

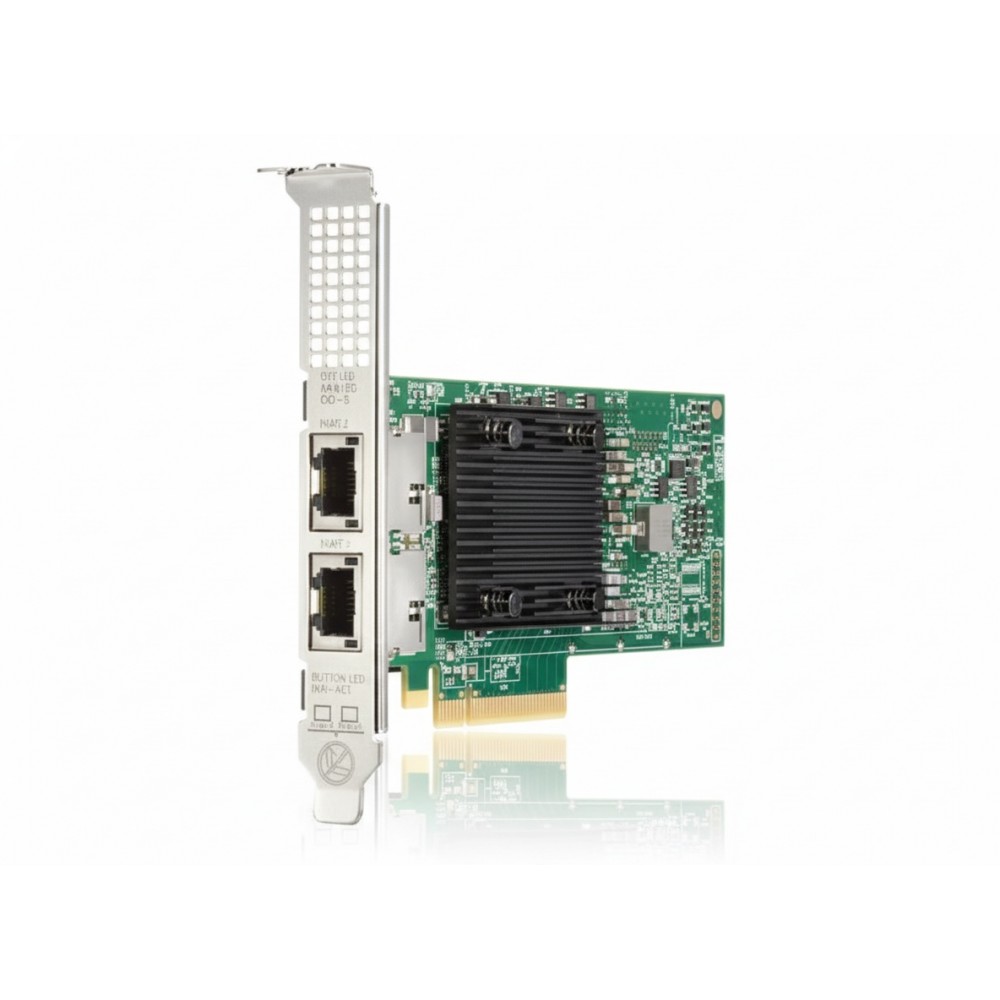

HPE P26987-001 Broadcom BCM57416 2-Port 10Gb BASE-T Adapter
Overview
The HPE P26987-001 is a high-speed network adapter featuring two 10 Gb/s BASE-T ports, designed for HPE ProLiant Gen10+ and Gen11 servers. It can efficiently handle both 1 Gb and 10 Gb traffic and leverages RDMA over Converged Ethernet (RoCE v1/v2) for low-latency communication. The card uses a PCIe 3.0 ×8 interface, making it suitable for modern server architectures. It's well suited for virtualized environments, storage, and data-center applications where high bandwidth and offload capabilities are needed.
Key Features
Two RJ-45 10 Gb BASE-T ports (auto-negotiates 1/10 Gb)
Broadcom BCM57416 controller with integrated PHY
Supports RoCE (v1 & v2) for low-latency workloads
Offload capabilities: SR-IOV, TCP/UDP checksum, VLAN, tunnel offloads
Standard and low-profile PCIe 3.0 ×8 form factor
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | P26987-001 |
| Product Type | Network adapter / NIC |
| Controller | Broadcom BCM57416 |
| Ports | 2 × 10 Gb BASE-T (RJ-45) |
| Bus Interface | PCI Express 3.0 ×8 |
| Data Link Protocols | 1 GbE, 10 GbE, RoCE v1 & v2 |
| Offload Features | SR-IOV, RSS, TSO, LRO, VLAN, VXLAN, NVGRE, Geneve |
| Power Consumption | ~ 16.4 W typical |
| PCIe Specification | PCIe 3.0 |
