Detailed Specifications

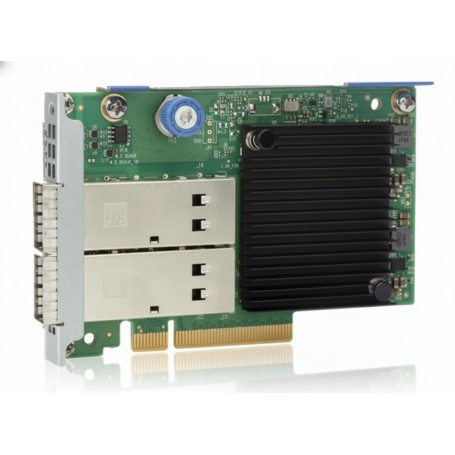

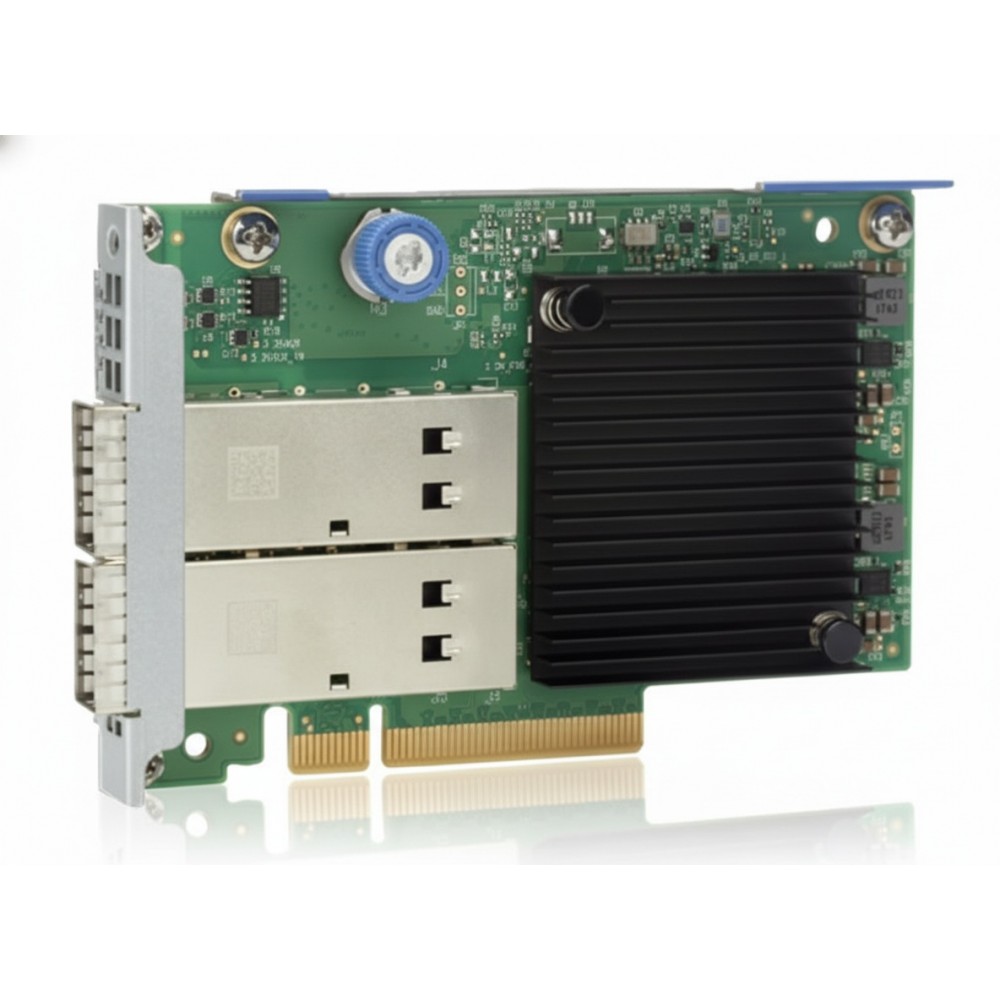

HPE 872726-H21 2-Port 40/50 Gb QSFP Adapter
Overview
The HPE 872726-H21 is a dual-port QSFP network adapter engineered for high-bandwidth server environments requiring both 40 Gb/s and 50 Gb/s link speeds. Its two QSFP ports support advanced connectivity including FDR InfiniBand and 50 Gb Ethernet, enabling dense uplinks from servers into storage or compute fabrics. With a FlexibleLOM or mezzanine slot form factor and support for PCIe x8/x16 host interfaces, the adapter fits into modern server architectures where high-throughput and low-latency I/O are critical. It is ideal for virtualised hosts, HPC clusters, and storage nodes deploying dual ultra-high-speed links in one adapter slot.
Key Features
Two QSFP ports supporting 40 Gb/s and 50 Gb/s link speeds
Supports FDR InfiniBand and 50 Gb Ethernet protocols
FlexibleLOM/mezzanine form-factor enabling high-density server uplinks
Dual high-speed links in a single adapter slot to streamline cabling
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | 872726-H21 |
| Product Type | 2-Port 40/50 Gb QSFP Server Adapter |
| Port Count | 2 |
| Supported Link Speeds | 40 Gb/s and 50 Gb/s per port |
| Port Type | QSFP |
| Host Interface | FlexibleLOM / Mezzanine slot (PCIe-based) |
| Protocols Supported | FDR InfiniBand, 50 Gb Ethernet |
| Use Case | High-bandwidth server uplinks, HPC, storage fabrics |
| Typical Weight | Approx. 0.30 lb |
| Dimensions (approx.) | Not publicly specified |
| Form Factor | Plug-in server adapter card |
