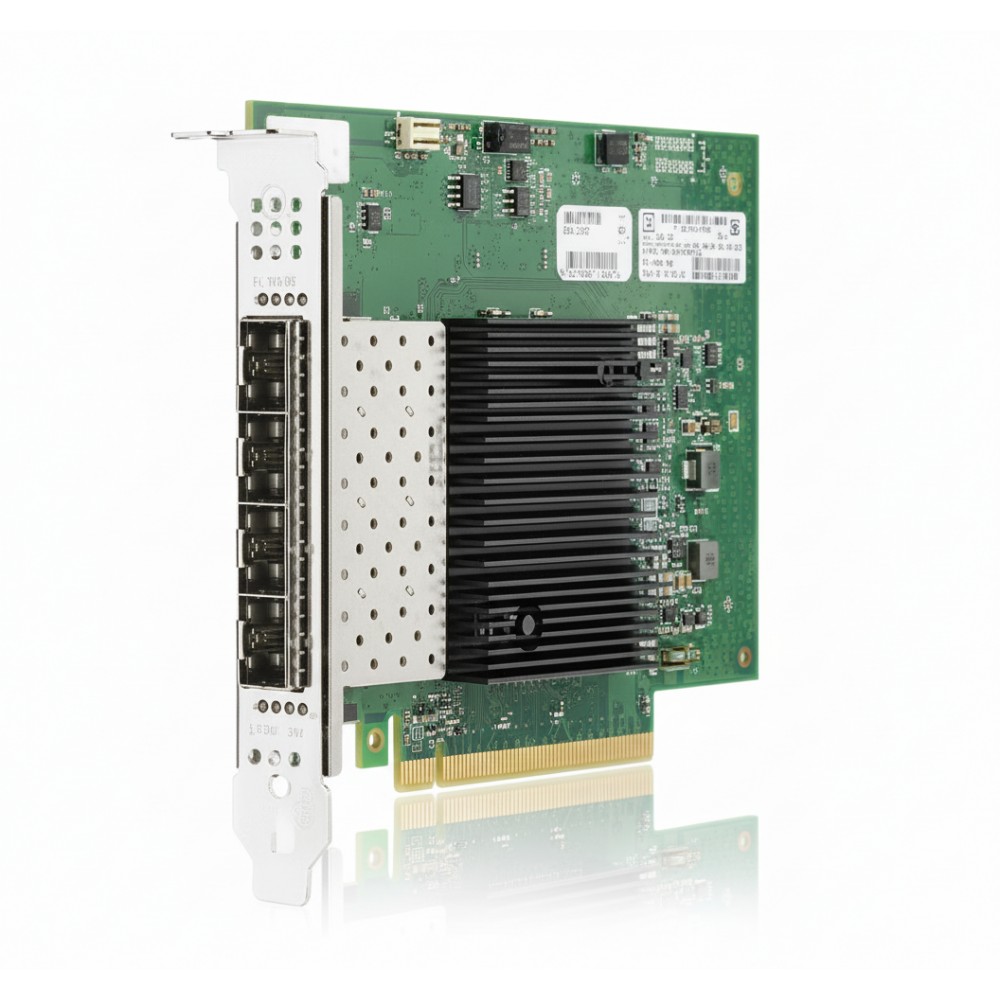

HPEP08458-B21

Intel E810-XXVDA4 4-Port 10/25 Gb/s Gigabit Ethernet Adapter(SFP28, PCIe Gen4 ×16

The HPEP08458-B21 is a high-performance server Network Adapter featuring four 10/25 GbE SFP28 ports on aPCI Express 4.0 ×16 plug-in card. Based on the Intel E810-XXVDA4 chipset, it delivers up to 3.13 GB/s per port and aggregate bandwidth of ~100 Gb/s full duplex. Compatible with HPEGen10 Plus servers (e.g. ProLiant DL360/380/385, DL325, DL345, DL365), this card supports advanced networking offloads including SR-IOV, RoCE v2 (RDMA), DDP, DDIO, and tunneling protocols (VXLAN/NVGRE). It accelerates workloads in virtualized, cloud, or storage-rich environments by reducing CPU usage while boosting throughput via hardware-level assistance

Features

The adapter is built on the Intel Ethernet 800 Series platform, offering robust compatibility with HPEinfrastructure and validated across multiple server models. It supports both IPv4 and IPv6 networking, Wake-on-LAN (WOL), and PXE boot functionality. With PCIe 4.0×16 interface, it ensures peak connectivity and low latency for demanding workloads. Features such as RoCE v2 and iWARP, along with tunneling offloads, empower efficient storage networking and NVMe-over-Fabrics deployments. Delivery includes SR-IOV for VM scalability, RSS for multi-core CPU balancing, and DDIO/DDP support for high-performance I/O. Firmware validation ensures secure platform updates and integrity.

Advanced Options

When sourced as OEM-new, the adapter qualifies for HPElimited lifetime support policies. Refurbished models may include 90-day warranty from select vendors. The spare-part equivalent P10582-001 is also recognized in HPEparts catalogues. It provides future-ready flexibility for growing data center applications, virtualization, machine learning, and storage workloads.Constructed for high-density, latency-sensitive server environments, this adapter offers near line-rate throughput for demanding workloads while offloading protocol processing to the NIC. Supported offloads×SR-IOV, tunneling, RDMA×accelerate virtualization and storage traffic, significantly reducing CPU overhead. RSS support distributes load across CPU cores, ensuring consistent performance under multi-thread workloads. The PCIe Gen4 interface provides future-proofed bandwidth and low host latency.

Product Key Features

• 4 × 10/25 GbE SFP28 ports (supporting both 10G and 25G speeds)

• Intel E810-XXVDA4 chipset with PCIe Gen4 ×16 host interface

• SR-IOV, RoCE v2, DDP/DDIO, VXLAN/NVGRE tunneling offloads

• Supports IPv4/IPv6, PXE boot, Wake-on-LAN

• High bandwidth: ~3.13 GB/s per port; low CPU utilization

• Compatible with HPEGen10 Plus servers; secure firmware trusted boot

---

Reliability & Performance

Firmware integrity is managed via cryptographic validation to maintain platform security and prevent rogue updates. The card inherits HPEsupport coverage on new OEM units. Refurbished versions are backed by reseller warranties and suitable for less critical environments. Weighing about 11.6 oz (≈ 330 g), the adapter is easily installed in servers with standard or cabled NIC slots. Cooling profiles are optimized for Gen10 Plus chassis airflow.

Key Features :

• • Four SFP28 ports supporting both 10 GbE and 25 GbE

  • PCIe 4.0 ×16 host interface for high throughput

  • I/O offloads: SR-IOV, RoCE v2, DDP, DDIO, VXLAN/NVGRE

  • Supports Wake-on-LAN, PXE boot, TCP/IP offload, IPv6

  • OEM-certified for HPEGen10 Plus servers; trusted firmware

  • Compact, low-latency design with minimal CPU impact

Specification	Details
Model Number	P08458-B21 (E810-XXVDA4 Gigabit Ethernet Adapter for HPE)
Product Type	Quad-port 10/25 GbE SFP28 Network Adapter
Interface	PCI Express 4.0 ×16
Ports	4 × SFP28 (10/25 GbE each)
Chipset	Intel Ethernet E810-XXVDA4
Max Data Rate	Up to ~3.13 GB/s per port (25 GbE)
Offload Features	SR-IOV, RSS, DDP/DDIO, VXLAN/NVGRE, RoCE v2
Protocol Support	TCP/IP, iSCSI, iWARP; IPv4 & IPv6
Boot Support	PXE, Wake-on-LAN
Compatibility	HPEGen10 Plus servers (e.g. DL360/380/385/325/345/365 series)
Power / Cooling	Low-power design; optimized for Gen10 Plus chassis airflow
Dimensions / Weight	~9.7 × 8.5 × 2.4 in; ~11.6 oz (~330 g)
Warranty	New: 1-Year OEM; Refurb: ~90-Day reseller coverage
