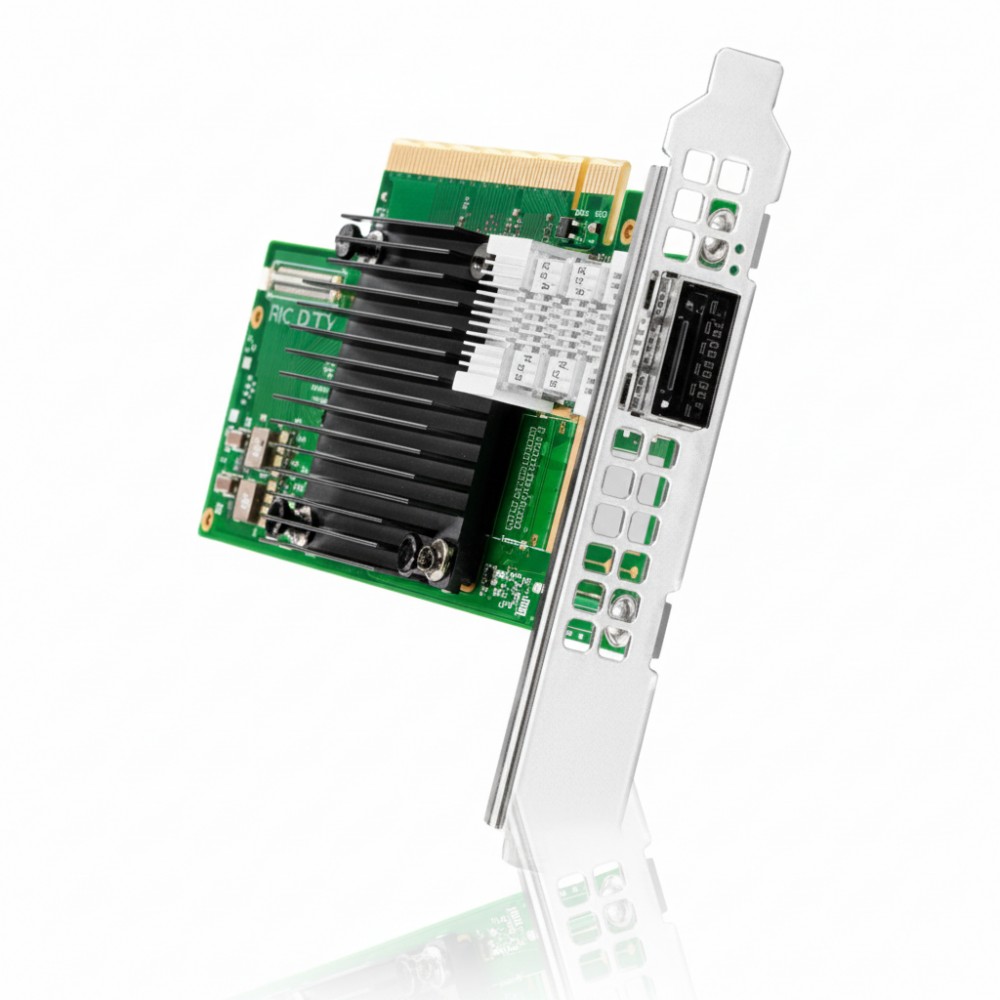

HPEP24754-001

InfiniBand HDR100 /100 Gb 1-Port QSFP56 Gigabit Ethernet Adapter

The HPEP24754-001 is a high-speed network adapter offering a single QSFP56 port capable of supporting both InfiniBand HDR100 (100 Gb/s) and Ethernet 100 Gb/s over one physical interface. It utilizes PCIe 4.0 x16 bus and the Mellanox ConnectX-6 chipset, delivering ultra-low latency and high throughput suitable for HPC clusters, storage fabric interconnects, and database servers. Ideal for IT professionals and data center engineers, this versatile adapter consolidates network and storage traffic, simplifies cabling, and enables RDMA over Converged Ethernet (RoCE), while preserving flexibility in mixed environments.

Features

Built for HPEProLiant Gen10/Gen10+ and Gen11 servers (e.g., DL360, DL380, DL365, DL385), the P24754-001 is a low-profile PCIe 4.0 x16 plug-in card incorporating the high-performance Mellanox ConnectX-6 controller. The single QSFP56 port delivers either 100 Gb/s Ethernet (100GBASE-SR4) or InfiniBand HDR100 depending on the protocol negotiated. With support for RoCE, FDR/QDR Link speeds, and advanced RDMA capabilities, it enables high-efficiency data transfer with minimal CPU overhead×ideal for distributed compute clusters, virtualized storage systems, and latency-sensitive workloads Compatible with PCIe 1-4 host interfaces, the card consumes approximately 15.6 W under typical loads and features a low-profile bracket ideal for rack-dense servers and blade enclosures.

Advanced Options

Firmware and driver support via HPEand Mellanox ensure seamless integration with industry-standard networking stacks including RDMA, TCP/IP, UDP/IP, iSCSI, and InfiniBand XRC/DCT transport protocols . Comprehensive offload features such as LSO, LRO, RSS, MSI-X, jumbo frames, QoS, and PXE boot are supported, ensuring high throughput and low latency across diverse workloads OEM validation for HPEProLiant Gen10/Gen11 platforms ensures firmware integrity and driver compatibility, and HPE-backed support guarantees reliable updates and long-term lifecycle management. The card includes comprehensive offload support×such as Jumbo Frames, VLAN tagging, PXE boot, and advanced interrupts×for consistent high performance in virtualization and clustered deployments

Product Key Features

• • 1 × QSFP56 port supporting 100 Gb InfiniBand HDR100 or Ethernet

  • PCIe 4.0 x16 (backward-compatible with PCIe 1/2/3)

  • Mellanox ConnectX-6 chipset with RDMA, RoCE support

  • Protocol versatility: InfiniBand, Ethernet, iSCSI, TCP/UDP

  • Advanced host offloads: RSS, MSI-X, LSO, LRO, jumbo frames

  • Low-profile form factor with ~15.6 W power consumption

---

Reliability & Performance

This adapter is engineered for data center and HPC environments, supplying line-rate 100 Gbps throughput with very low latency, which optimizes database transactions, compute clusters, and storage fabrics. The Mellanox ConnectX-6 architecture provides robust RDMA acceleration (RoCE), infiniBand QoS, and payload optimizations through features like Dynamic Transport Offload and hardware congestion control Power consumption is modest (~15.6 W), enabling deployment in thermally constrained rack servers while maintaining performance. Industrial-grade reliability coupled with enterprise feature sets makes it well-suited for HPC, analytics clusters, and unified converged networking infrastructures.

Key Features :

• • 100 Gbps InfiniBand HDR100 or Ethernet via single QSFP56

  • PCIe 4.0 ×16 plug-in card (low-profile)

  • Mellanox ConnectX-6 with hardware-based RDMA and QoS

  • Protocols: Ethernet, InfiniBand, iSCSI, TCP, UDP, RoCE

  • Offloads: RSS, MSI-X, LSO, LRO, VLAN, jumbo frames, PXE boot

  • OEM-certified for HPEProLiant Gen10 & Gen11 servers

Specification	Details
Model Number	P24754-001 (MCX653105A-ECAT, option PN P23665-B21)
Product Type	InfiniBand HDR100 / 100 Gb Gigabit Ethernet Adapter
Ports	1 × QSFP56 (InfiniBand HDR100 or 100 Gb Ethernet)
Interface	PCI Express 4.0 ×16 (compatible with PCIe 1.1/2.0/3.0)
Data Rate	100 Gbps
Form Factor	Low-profile plug-in card
Chipset	Mellanox ConnectX-6
Power Consumption	~15.6 W
Protocol Support	InfiniBand, Ethernet, RoCE, iSCSI, TCP/IP, UDP/IP
Offload Features	RSS, MSI-X, LSO, LRO, Jumbo Frames, PXE boot, VLAN, QoS
Operating Temperature	~0 °C to 50 °C (typical data center conditions)
Compatibility	HPEProLiant Gen10 / Gen11 servers (DL360, DL380, DL365, DL385, etc.)
