Detailed Specifications

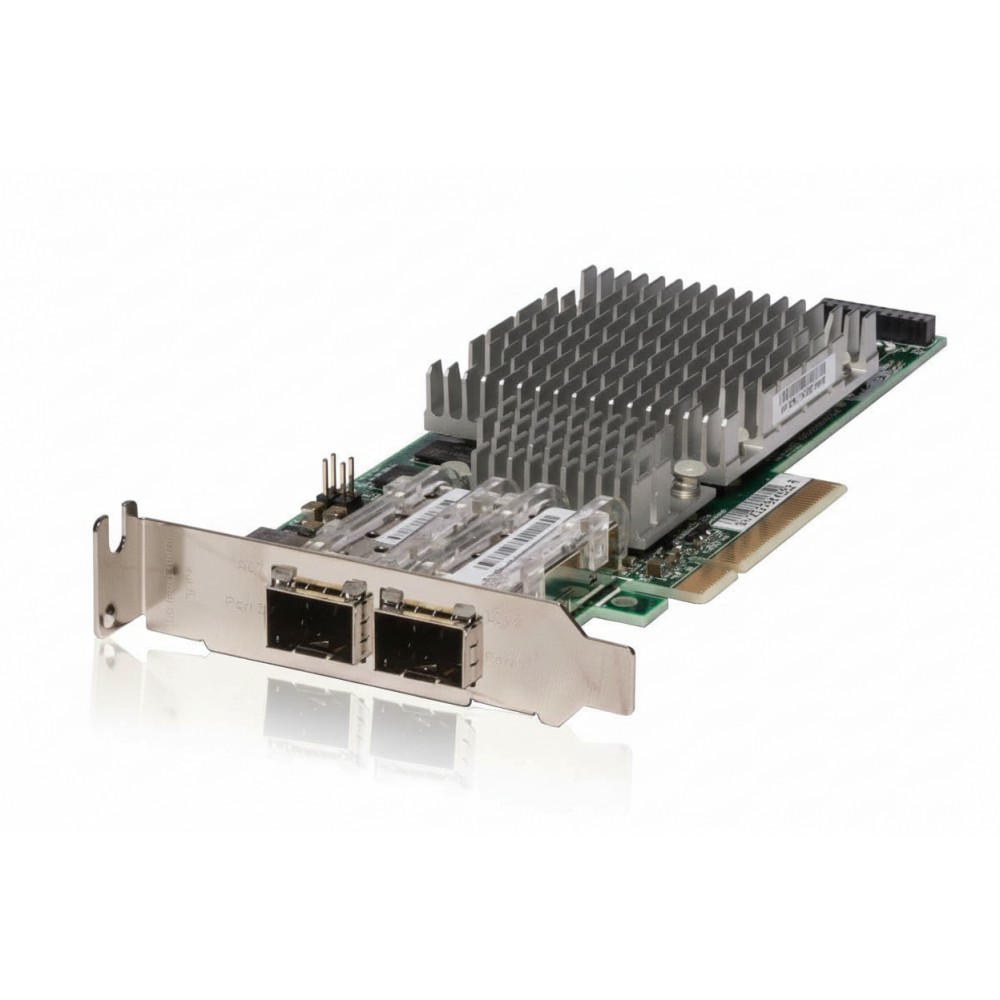

HPE 468349-001 - Dual Port 10GbE SFP+ Server Adapter
Overview :
This HPE 468349-001 adapter is a dual-port 10 Gigabit Ethernet PCI-Express card designed for enterprise servers. It allows engineers to expose two independent 10 Gb/s SFP+ ports for networking or storage access in a HPE ProLiant server, enabling high-bandwidth connectivity and offloaded TCP/IP processing. The card utilises a PCI Express 2.0 x8 interface and supports direct attach copper or SR/LR/LRM fibre optics, making it suitable for demanding I/O, virtualization, or storage-network integration. It is typically deployed in data-centre rack or blade servers (e.g., ProLiant G5-G7 families) and connects to Top-of-Rack switches or storage fabrics. With built-in support for IPv6, jumbo frames, VLAN tagging and TCP/UDP offload, the adapter integrates with existing server management frameworks and network-agile environments.
Key Features :
Two SFP+ cages for 10 Gb/s each port
PCI Express 2.0 x8 interface, backward-compatible
Supports jumbo frames up to 9,000 bytes MTU
IPv6, TCP/UDP checksum and segmentation offload
Compatible with full-height or low-profile brackets
Specification :
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | 468349-001 |
| Product Type | Dual Port 10GbE SFP+ Server Adapter |
| Interface (Bus) | PCI Express 2.0 x8 (compatible x4) |
| Ports | 2 × SFP+ |
| Data Rate | 10 Gb/s per port (20 Gb/s aggregate per direction) |
| On-board Memory | 256 MB |
| Controller Chip | NetXen NX3031 |
| Dimensions (L×W) | 6.6 in × 2.7 in (16.7 cm × 6.8 cm) |
| Weight | ~0.661 lbs (0.30 kg) |
| Supported MTU | Up to 9,000 bytes (jumbo frames) |
| Minimum Server Memory | 2 GB per adapter |
| Power Requirement | 2.03 A @ 12 V DC |
| Operating Temp | 0 °C to 55 °C |
| Compliance Standards | IEEE 802.3ae, 802.1Q, 802.1p, 802.3ad |
