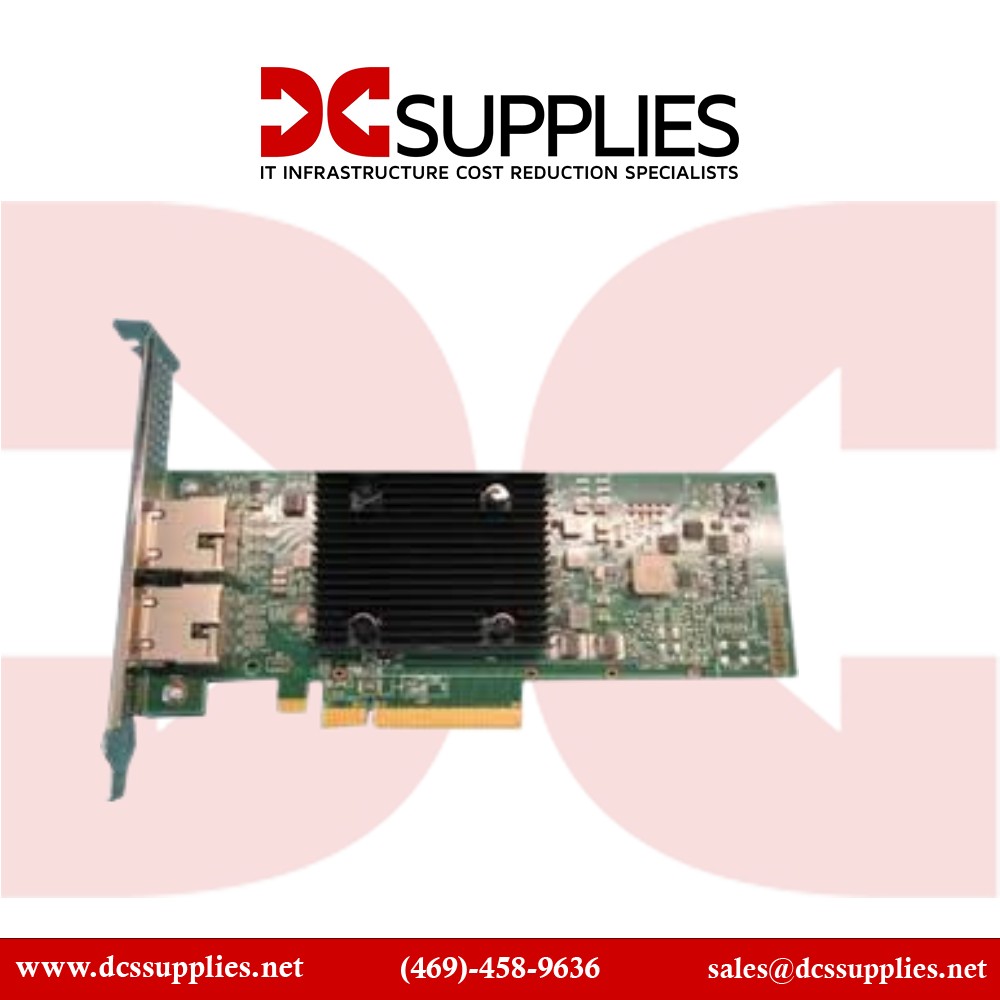

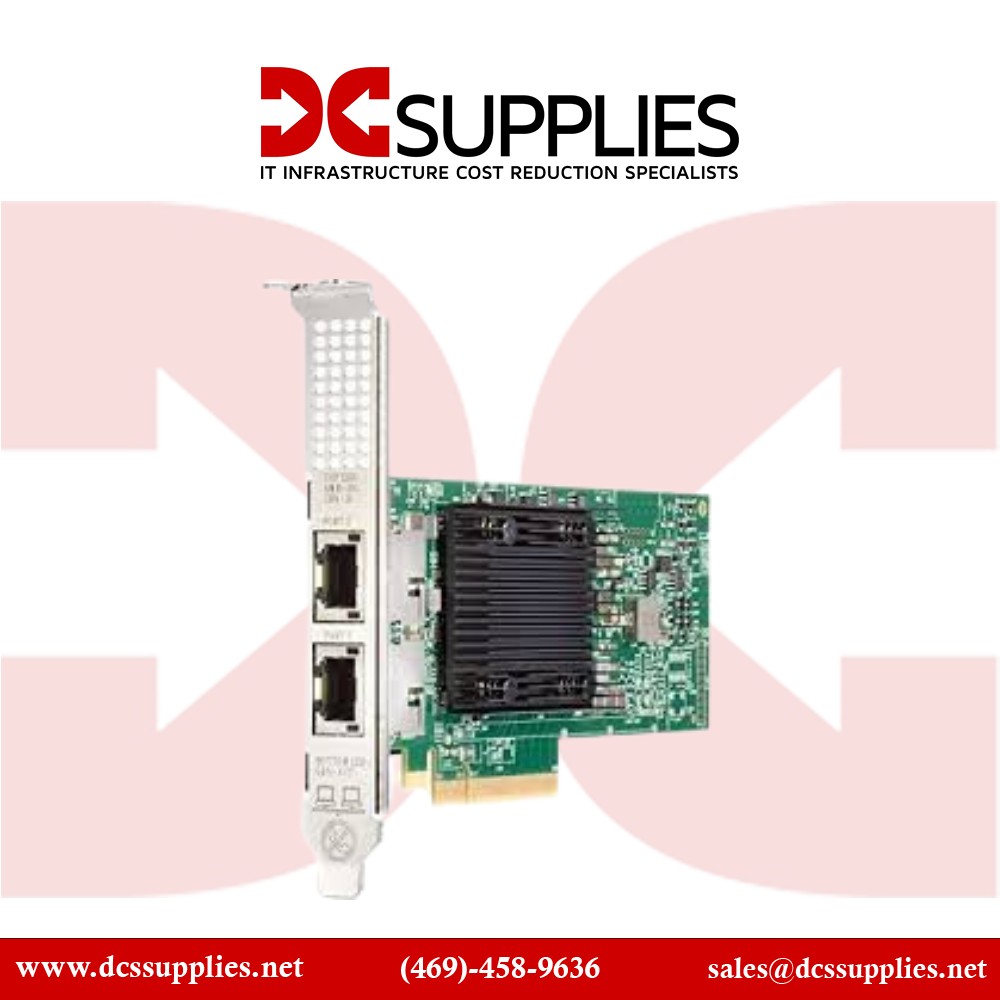

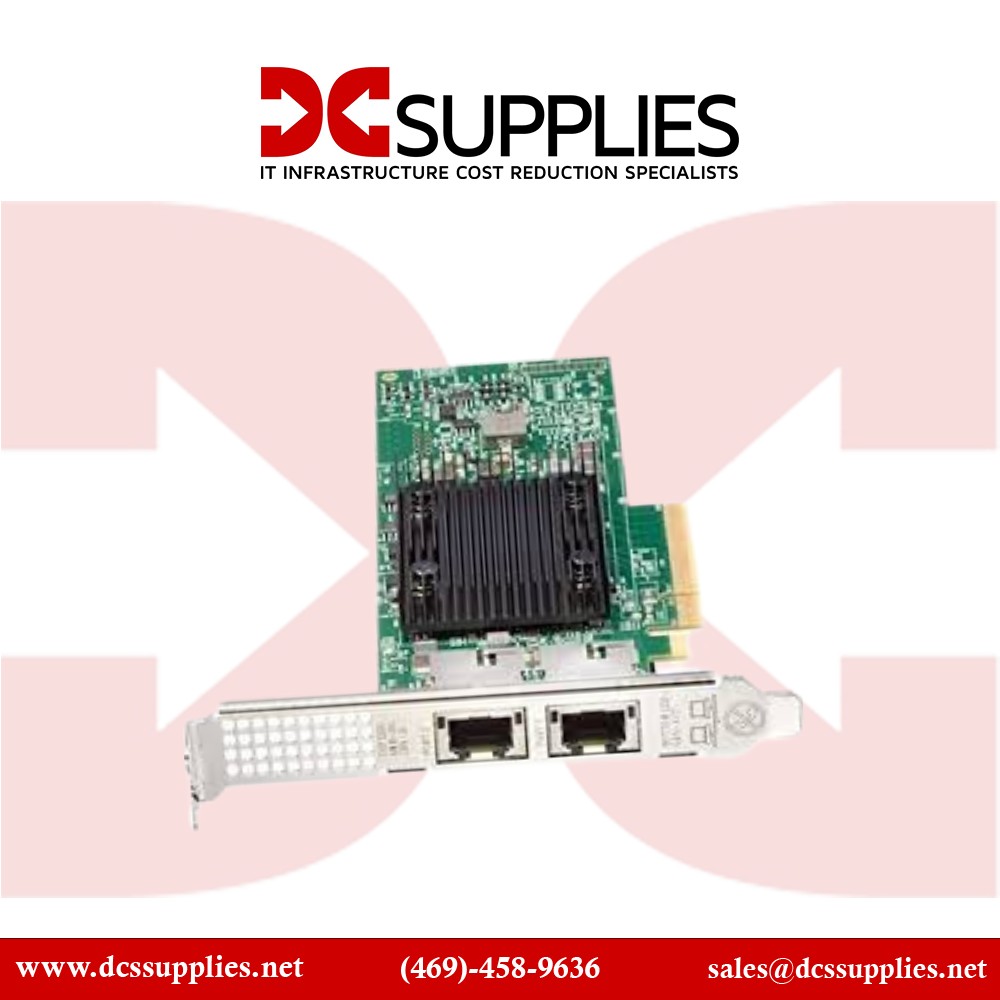

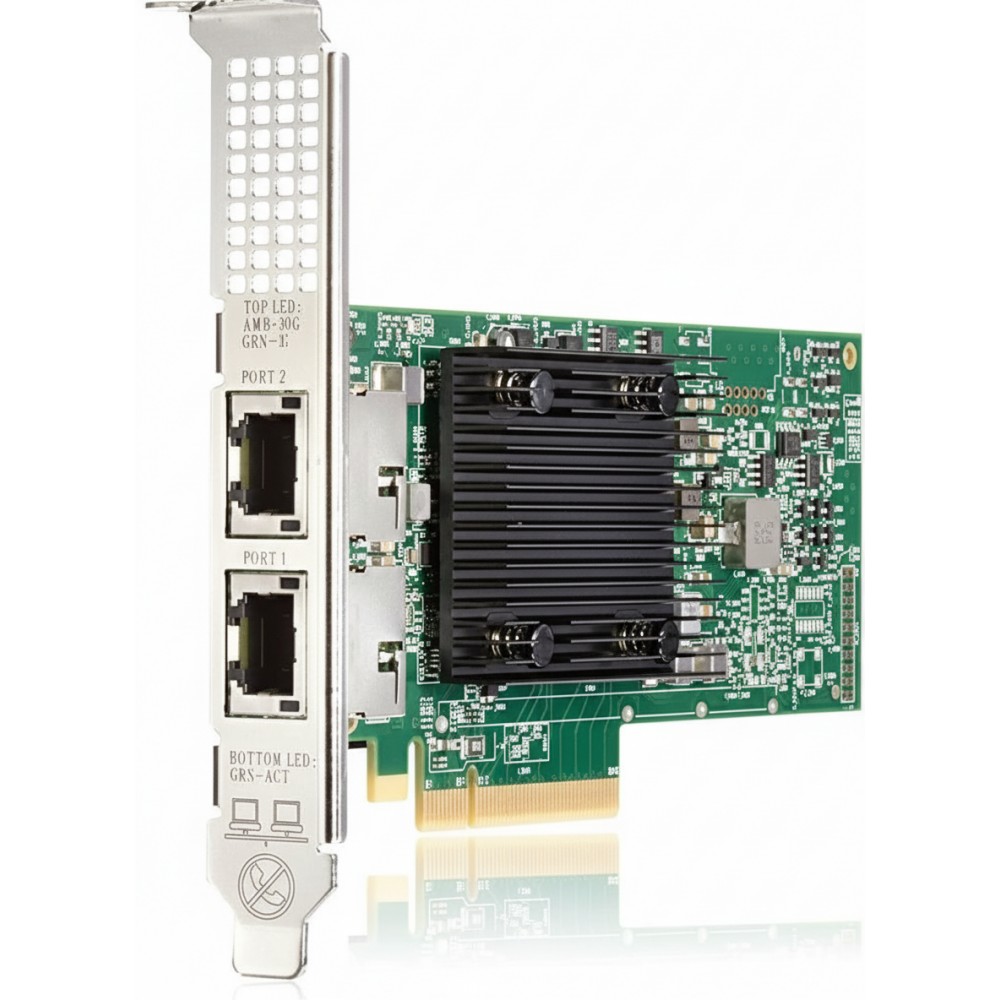

HPE813659-001

10 Gb 2-Port 535T Gigabit Ethernet Adapter

The HPE813659-001 (SPS 815669-001, also known as the 535T Adapter) is a dual-port Gigabit Ethernet Adapter offering full line-rate 10 GbE performance over copper RJ-45 connections. Built around the Broadcom BCM57416 controller, it supports aggregate bandwidth of 40 Gb/s and backward compatibility with 5 GbE, 2.5 GbE, and 1 GbE speeds. Engineered for modern ProLiant Gen10 and Apollo servers, it's ideally suited for virtualization, high-speed storage connectivity, and network-intensive workloads that demand high throughput and advanced offload features.

Features

This adapter installs in a PCIe 3.0 ×8 slot and offers dual RJ-45 10 Gigabit ports with support for jumbo frames up to 9.6 KB. It includes a rich offload feature set×such as TCP/IP checksum, segmentation offload, tunnel offloading (VXLAN, GRE, NVGRE), RSS, VMQ, and receive-side scaling×to reduce CPU load and improve performance in virtualized and multi-tenant environments. Built-in HPEsecurity features like secure boot, authenticated firmware updates, and hardware-level sanitization (Secure Data Erase) enhance security posture. Compatible with HPESea of Sensors for temperature monitoring and thermal management.

Advanced Options

Designed for enterprise virtualization and storage connectivity, this adapter delivers wire-speed traffic with minimal latency across both ports. Advanced offload engines and traffic scaling features ensure high performance in server consolidation and cloud environments.

Product Key Features

• 2 × 10 GbE RJ-45 copper ports, auto-negotiates down to 1/2.5/5 Gb/s


• Broadcom BCM57416 networking processor with PCIe 3.0 ×8


• Supports jumbo frames up to 9.6 KB MTU


• Advanced offloads: TSO/LSO, checksum, RSS, VMQ, tunnel offloads


• Security: secure boot, signed firmware, secure erase capabilities


• Virtualization support: VMware NetQueue, Microsoft VMQ, Sea of Sensors thermal monitoring

---

Reliability & Performance

The Broadcom controller's hardware root-of-trust and secure firmware enable authenticated updates and safe deployment. With energy-efficient operation (~14.6 W typical, ~19.6 W max) and thermal awareness integrated via HPESea of Sensors, it offers stable, long-term reliability in dense server configurations.

Key Features :

• • Dual 10 GbE RJ-45 ports (auto-negotiating: 1/2.5/5/10G)

  • PCI Express 3.0 ×8 host interface

  • Broadcom BCM57416 controller

  • Jumbo frame support (up to 9600 KB MTU)

  • Offloads: TSO, LSO, checksum, RSS, VMQ, tunnel offloads (VXLAN/GRE)

  • Secure features: firmware signing, secure erase, secure boot

  • Virtualization optimizations: VMware NetQueue, Microsoft VMQ

  • HPESea of Sensors thermal monitoring

  • Power consumption: ~14.6 W typical, up to ~19.6 W

  • Compatible brackets: low-profile and full-height included

Specification	Details
Model Number	813659-001 (SPS: 815669-001)
Product Type	Dual-Port 10 GbE Copper Gigabit Ethernet Adapter Network
Ports	2 × RJ-45 (10 GbE, auto-negotiates to 1/2.5/5 GbE)
Bus Interface	PCI Express 3.0 ×8
Network Processor	Broadcom BCM57416
Jumbo Frame Support	Up to 9.6 KB MTU
Security Features	Secure boot, signed firmware, secure erase
Virtualization Support	RSS, VMQ, VMware NetQueue, tunnel offloads
Power Consumption	~14.6 W typical; up to ~19.6 W max
Form Factor	Stand-up PCIe card; includes low- and full-height brackets
Operating Temperature	0 °C to 55 °C
Cable Type	Cat 6A or better for full 10 GbE distance support
Compatibility	HPEProLiant Gen10 / Apollo servers; Gen10 Plus servers
Standards Compliance	IEEE 802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad, 802.1AB, 802.1Qbg/bb, IPv6 support
