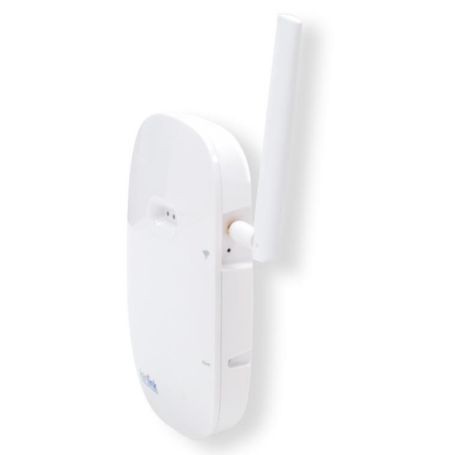

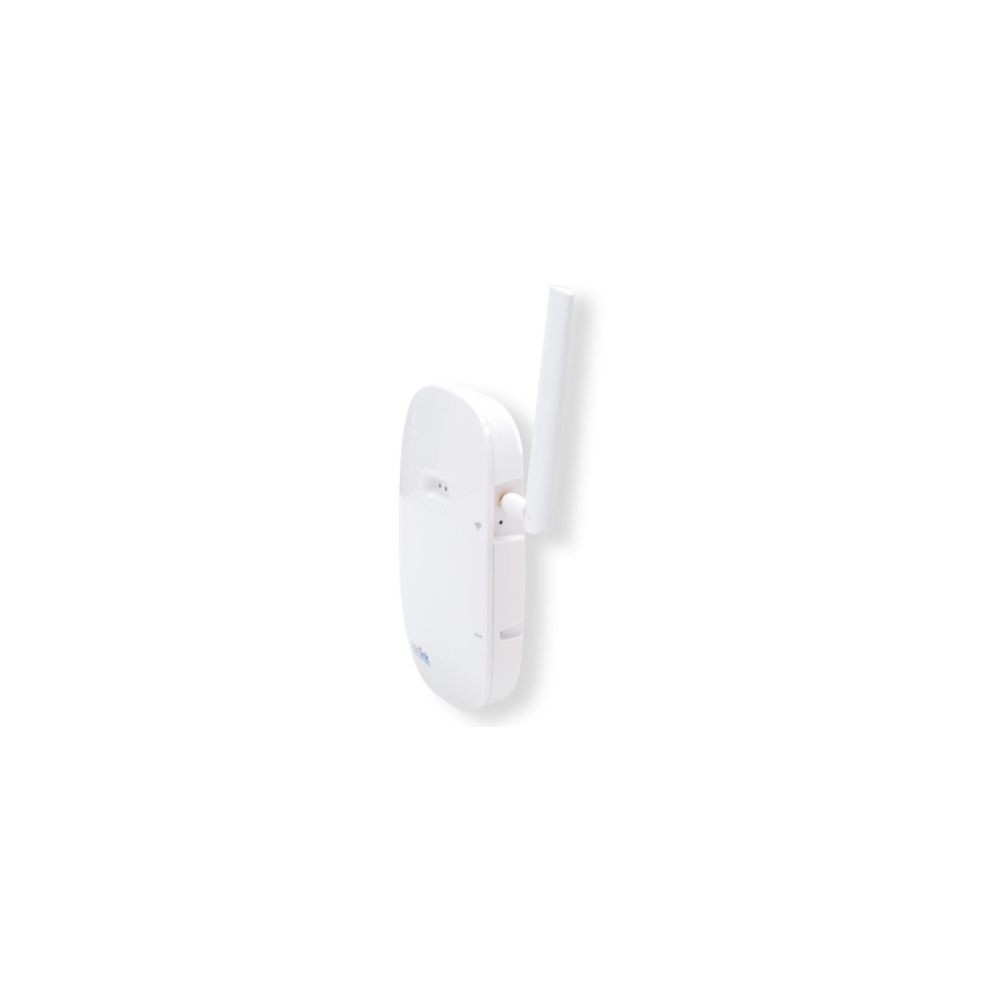

The Logitech LoRaWAN Gateway for Spot (950-000122) is an indoor gateway designed to connect Logitech Spot sensors across office environments. Manufactured by Kerlink and configured for Logitech Spot, this gateway uses LoRaWAN technology to communicate with compatible sensors and forward data for monitoring and management through the Logitech Sync platform.
Key Features
- Logitech Spot Compatibility: Designed specifically for use with Logitech Spot sensors in supported countries.
- LoRaWAN Connectivity: Connects multiple compatible sensors using long-range, low-power wireless communication.
- Flexible Network Backhaul: Supports 2.4 GHz Wi-Fi and 10/100 Mbps Ethernet connectivity.
- Flexible Installation: Can be mounted on a wall or placed on a tabletop.
- Centralized Management: Supports gateway and sensor monitoring through the Logitech Sync platform.
Reliable Workplace Sensor Connectivity
The gateway helps extend Logitech Spot sensor connectivity into office areas where compatible Logitech CollabOS devices, such as Tap Scheduler or Rally Bar, may not be available. Its LoRaWAN connection operates separately from the Wi-Fi network used for backhaul, supporting flexible deployment across suitable workplace environments.
Network and Security
The gateway provides an RJ45 Ethernet interface and 2.4 GHz Wi-Fi backhaul connectivity. Security features include Secure Boot, Secure Storage, mutual TLS protection, and recovery mechanisms designed to support secure operation and configuration management.
Compact Installation Options
Measuring 160 × 90 × 35 mm and weighing approximately 162 g, the gateway has a compact form factor. It can be secured to a wall using its mounting holes or positioned on a tabletop. An adjustable LoRa antenna supports wireless communication with compatible Spot sensors.
DC Supplies Product Note
Before deployment, verify that Logitech Spot sensor compatibility and regional LoRaWAN operation are supported at the installation location. Firmware is required for gateway configuration and management.
Technical Specifications
| Brand | Logitech |
|---|
| Part Number / MPN | 950-000122 |
|---|
| Product Type | Indoor LoRaWAN Gateway |
|---|
| Manufacturer | Kerlink S.A. |
|---|
| Compatible Device | Logitech Spot Sensor |
|---|
| Wireless Protocol | LoRaWAN |
|---|
| Backhaul Connectivity | 2.4 GHz Wi-Fi and Ethernet |
|---|
| Ethernet Speed | 10/100 Mbps |
|---|
| Ethernet Interface | RJ45 |
|---|
| USB Interface | USB Type-A for configuration |
|---|
| Antenna Interface | SMA or RP-SMA |
|---|
| Antenna Gain | 3 dBi peak |
|---|
| Receiver Sensitivity | -141 dBm (SF12) |
|---|
| Configurable Transmit Power | 5–27 dBm |
|---|
| Processor | ARM Cortex-A9 |
|---|
| Memory | 256 MB DDRAM |
|---|
| Flash Storage | 8 GB eMMC, with 6 GB available for user data |
|---|
| Enclosure Rating | IP30 |
|---|
| Dimensions | 160 × 90 × 35 mm |
|---|
| Weight | 162 g |
|---|
| Power Supply | 100–240 V AC input, 12 V DC output, 0.5 A |
|---|
| Operating Temperature | -20°C to +55°C for the gateway, excluding the power supply |
|---|
| Operating Humidity | 5%–95% |
|---|
| Mounting Options | Wall-mounted or tabletop |
|---|
| Management Platform | Logitech Sync |
|---|
| Warranty | Limited 2-year hardware warranty, subject to terms |
|---|
950-000122
Frequently Asked Questions
1. What is the Logitech LoRaWAN Gateway for Spot used for?
It connects compatible Logitech Spot sensors across workplace environments using LoRaWAN wireless communication.
2. Is this gateway compatible with other Logitech devices?
The gateway is designed specifically for Logitech Spot sensors. Confirm compatibility before planning a deployment with other devices.
3. Does the gateway support Ethernet and Wi-Fi?
Yes. It supports 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi for backhaul connectivity.
4. Can the gateway be wall-mounted?
Yes. It supports wall mounting using two mounting holes or placement on a tabletop.
5. Is software required to configure the gateway?
Yes. Firmware is required for configuration and management, and the gateway and compatible Spot sensors can be monitored through Logitech Sync.
6. What is included in the package?
The documented package contents include the indoor LoRaWAN gateway, power supply, and user documentation. Regional power-plug adapters may be supplied according to the product package and region.
