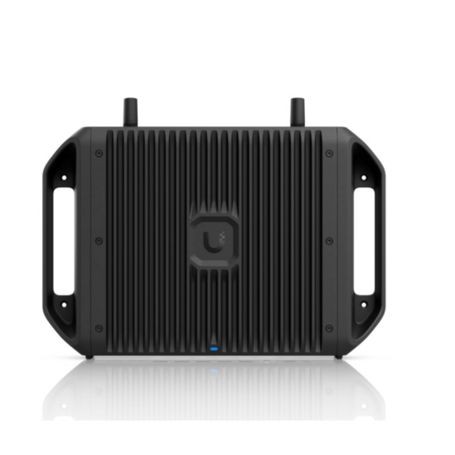

Ubiquiti UCG-INDUSTRIAL-US – UniFi Cloud Gateway Industrial WiFi 7 10GbE 350W
Overview
The Ubiquiti UCG-INDUSTRIAL-US is a ruggedized, fanless UniFi Cloud Gateway designed for high-density PoE deployments and edge network installations. It combines gateway routing, UniFi application hosting, WiFi 7, multi-gigabit Ethernet, 10GbE connectivity, and high-power PoE output in a compact enclosure.
The gateway supports the full UniFi application suite, including UniFi Network, Protect, Access, Talk, and Connect. It can manage 50+ UniFi devices and support 500+ simultaneously connected users.
Technical Information
UCG-INDUSTRIAL-US provides one 10GbE RJ45 port, one 10G SFP+ port, and four 2.5GbE RJ45 ports. Two of the 2.5GbE ports provide PoE+++ with up to 90W per port, while two provide PoE+ with up to 30W per port. The 10GbE RJ45 port also provides PoE+++ with up to 90W.
The gateway provides 5Gbps IDS/IPS throughput and supports multi-WAN load balancing, dynamic OSPF routing, advanced QoS, VLAN and subnet-based segmentation, advanced NAT, stateful and Layer 7 firewall functions, and multiple VPN technologies.
Integrated dual-band WiFi 7 supports up to 4.3Gbps on 5GHz and 688Mbps on 2.4GHz. The system includes a pre-installed 128GB microSD card for NVR storage and provides a microSD expansion slot.
Compatibility
The UCG-INDUSTRIAL-US is part of the UniFi Cloud Gateway platform and is managed through UniFi software and the UniFi mobile applications. The current manufacturer specification lists support for UniFi iOS version 10.32.0 or later and UniFi Android version 10.35.0 or later.
The device supports wall mounting and desktop operation using the included table stand. Rack installation is supported with the separately sold UACC-UCG-Industrial-RM rack mount accessory.
Key Features
- WiFi 7 dual-band wireless gateway with up to 4.3Gbps 5GHz throughput
- 1 × 10GbE RJ45, 1 × 10G SFP+, and 4 × 2.5GbE RJ45 ports
- 350W power system with high-power PoE output
- 5Gbps IDS/IPS throughput with advanced routing, firewall, and VPN functions
- 128GB pre-installed microSD storage for NVR applications
Applications
- Industrial and edge network gateway deployments
- High-density UniFi PoE infrastructure
- Multi-WAN enterprise and branch networking
- UniFi surveillance deployments requiring local NVR storage
- Integrated wired, wireless, routing, and security gateway installations
DC Supplies Product Note
UCG-INDUSTRIAL-US is designed for installations where gateway routing, wireless access, UniFi application hosting, and high-power PoE are required in one fanless platform. For rack deployment, allow for the separately sold rack-mount accessory rather than assuming rack hardware is included with the gateway.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UCG-INDUSTRIAL-US |
|---|
| Product Type | UniFi Cloud Gateway Industrial |
|---|
| WiFi Standard | WiFi 7 (802.11be), WiFi 6/5/4 and legacy 802.11 standards |
|---|
| 5GHz Throughput | 4.3 Gbps |
|---|
| 2.4GHz Throughput | 688 Mbps |
|---|
| 10GbE RJ45 Ports | 1 × 10G/5G/2.5G/1G/100M, PoE+++ |
|---|
| 10G SFP+ Port | 1 × 10G/1G |
|---|
| 2.5GbE RJ45 Ports | 4 × 2.5G/1G/100M |
|---|
| PoE++ Ports | 2 × PoE+ |
|---|
| PoE+++ Ports | 3 × PoE+++ |
|---|
| Maximum PoE Power per Port | 30W PoE+; 90W PoE+++ |
|---|
| PoE Budget | 270W DC input; 75W ATX power |
|---|
| IDS/IPS Throughput | 5 Gbps |
|---|
| Managed UniFi Devices | 50+ |
|---|
| Simultaneous Connected Users | 500+ |
|---|
| Pre-installed NVR Storage | 128GB microSD |
|---|
| Processor | Quad-core ARM Cortex-A73, 2.2GHz |
|---|
| System Memory | 3GB |
|---|
| Power Method | 54V DC, 350W adapter; 48V ATX power |
|---|
| Supported AC Voltage | 100–240V AC |
|---|
| Maximum Power Consumption | 28W excluding PoE output |
|---|
| Dimensions | 307.9 × 203.5 × 43.7 mm |
|---|
| Weight | 2.4 kg |
|---|
| Enclosure Material | Polycarbonate and aluminum alloy |
|---|
| Mounting | Wall-mounted or desktop; rack mount accessory available separately |
|---|
| Operating Temperature | -30 to 50°C |
|---|
| Operating Humidity | 5–95% noncondensing |
|---|
| ESD/EMP Protection | Air: ±8kV; contact: ±4kV |
|---|
| Certifications | CE, FCC, IC |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What type of device is UCG-INDUSTRIAL-US?
It is a ruggedized UniFi Cloud Gateway that combines routing, firewall, VPN, WiFi 7, high-speed Ethernet, PoE, and UniFi application hosting.
How much PoE power can the gateway provide?
The system provides a 270W PoE budget when using the DC input and supports up to 90W on each PoE+++ port.
Does UCG-INDUSTRIAL-US support 10GbE?
Yes. It provides one 10GbE RJ45 port and one 10G SFP+ port.
Does it include storage for UniFi Protect?
Yes. Ubiquiti specifies a pre-installed 128GB microSD card for NVR storage, with a microSD expansion slot also provided.
Can it be installed in a rack?
Yes, but rack installation requires the separately sold UACC-UCG-Industrial-RM rack-mount accessory. The gateway itself supports wall-mounted and desktop installation.
What is the IDS/IPS throughput?
Ubiquiti specifies 5Gbps IDS/IPS throughput for the Cloud Gateway Industrial.
