Overview

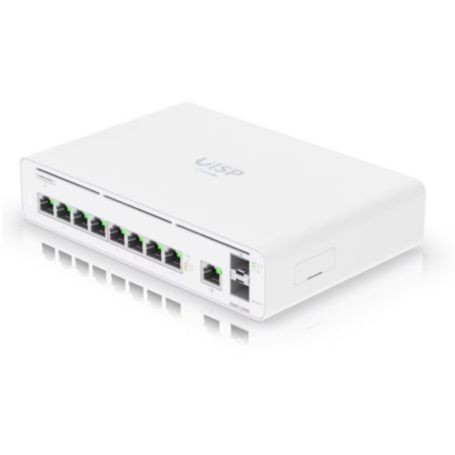

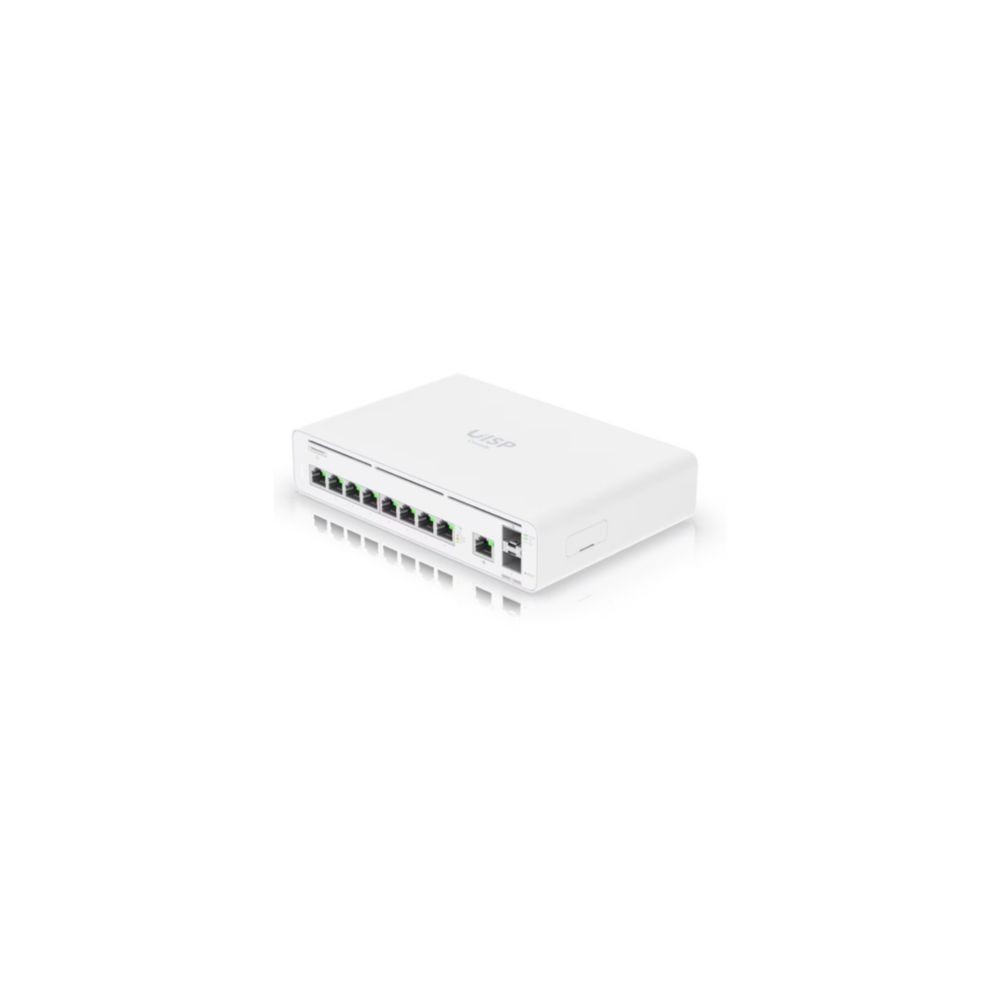

The Ubiquiti UISP-CONSOLE is a dedicated UISP host console that combines network management hosting with an integrated Ethernet switch and multi-gigabit gateway. It provides eight Gigabit LAN ports, dedicated Gigabit WAN connectivity, and 1/10G SFP+ LAN and WAN interfaces for higher-speed network connections.
Hardware and Storage
The console uses a quad-core ARM Cortex-A57 processor running at 1.7 GHz with 4 GB of DDR4 memory. Storage consists of 16 GB eMMC onboard flash and a 128 GB SSD, with a microSD card slot supporting cards up to 2 TB. :contentReference[oaicite:1]{index=1}
Network Connectivity
The UISP-CONSOLE provides eight GbE RJ45 LAN ports, one 1/10G SFP+ LAN port, one GbE RJ45 WAN port, and one 1/10G SFP+ WAN port. Ethernet in-band management and Bluetooth are also supported. :contentReference[oaicite:2]{index=2}
Power
The console is powered by the included 24V DC, 2.5A AC/DC adapter or through its Power TransPort DC input. The supported voltage range is 24–28V DC, with maximum power consumption specified at 30W. :contentReference[oaicite:3]{index=3}
Key Features
- Dedicated UISP host console with integrated gateway
- Eight Gigabit Ethernet LAN ports
- 1/10G SFP+ LAN and WAN interfaces
- Quad-core 1.7 GHz ARM Cortex-A57 processor with 4 GB DDR4
- 128 GB SSD plus microSD expansion up to 2 TB
Applications
The UISP-CONSOLE is designed for centralized UISP network management in deployments using compatible Ubiquiti routing, switching, wireless, and other UISP-managed infrastructure. Its integrated gateway and multiple LAN interfaces also allow it to serve as a compact network-management and connectivity platform.
DC Supplies Product Note
The UISP-CONSOLE combines management hosting, gateway functionality, and multiple Ethernet interfaces in a single appliance. The dedicated 1/10G SFP+ WAN and LAN ports provide a higher-speed interface option than the eight integrated Gigabit RJ45 LAN ports.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | UISP-CONSOLE |
| Product Type | UISP Host Console / Network Gateway |
| Processor | Quad-core ARM Cortex-A57, 1.7 GHz |
| Memory | 4 GB DDR4 |
| Onboard Flash | 16 GB eMMC |
| Onboard Storage | 128 GB SSD |
| Expansion Storage | 1× microSD, up to 2 TB |
| LAN RJ45 | 8× GbE |
| LAN SFP+ | 1× 1/10G |
| WAN RJ45 | 1× GbE |
| WAN SFP+ | 1× 1/10G |
| Management | Ethernet In-band, Bluetooth |
| Power Input | 24–28V DC |
| Power Supply | 24V DC, 2.5A adapter included |
| Maximum Power Consumption | 30W |
| Enclosure Materials | SGCC steel, polycarbonate |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
Specifications are based on Ubiquiti's current product information and technical specifications. :contentReference[oaicite:4]{index=4}
FAQs
What is the UISP-CONSOLE?
The UISP-CONSOLE is a Ubiquiti UISP host console with an integrated switch and multi-gigabit Ethernet gateway.
How many LAN ports does it have?
It has eight Gigabit RJ45 LAN ports plus one 1/10G SFP+ LAN port.
Does the console have a 10G WAN interface?
Yes. It provides one 1/10G SFP+ WAN port in addition to a Gigabit RJ45 WAN port.
How much storage does it have?
The console includes a 128 GB SSD and 16 GB eMMC flash storage, with a microSD slot supporting up to 2 TB. :contentReference[oaicite:5]{index=5}
What power supply does it use?
It uses a 24V DC, 2.5A external power adapter, with an additional 27V DC, 1.5A Power TransPort input. :contentReference[oaicite:6]{index=6}
