Detailed Specifications

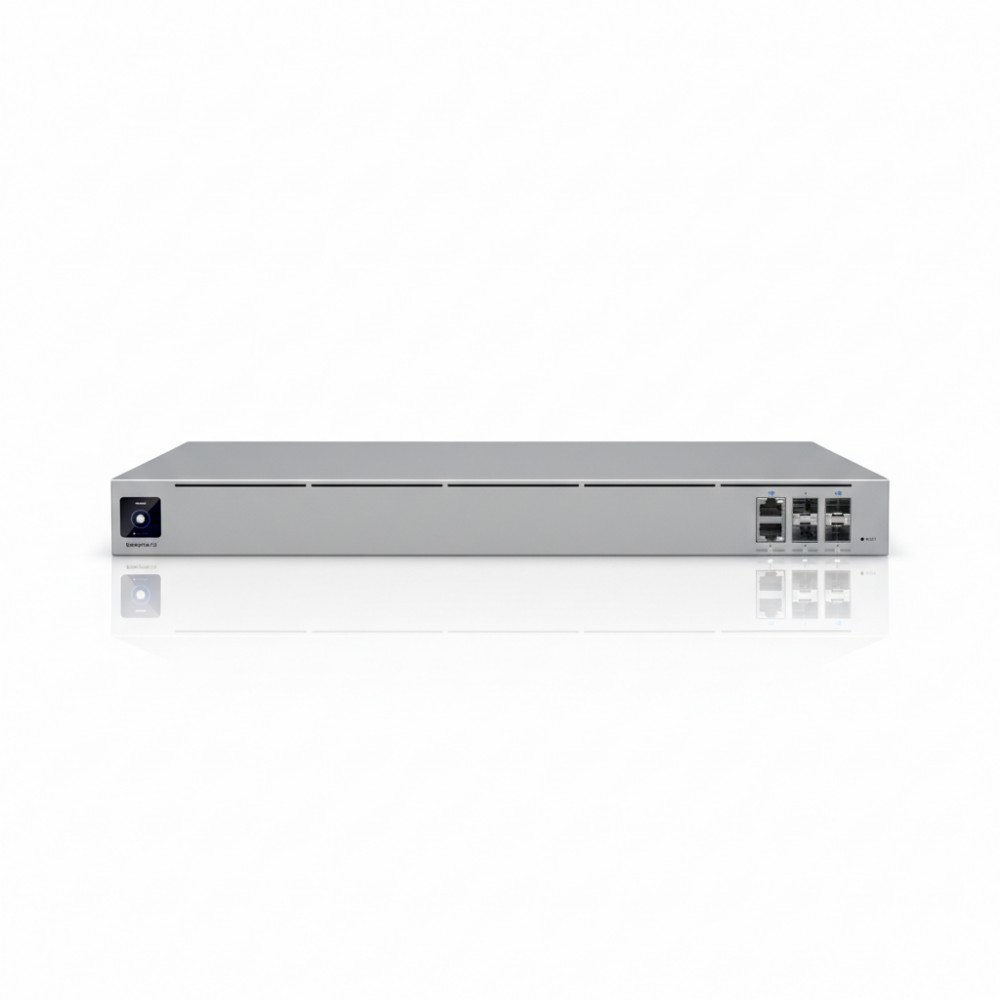

Ubiquiti EFG Enterprise Fortress Gateway
Overview :
The Ubiquiti EFG is an enterprise-grade cloud gateway and routing appliance designed for large-scale network deployments running the UniFi Network platform. It combines high-capacity routing, firewall, and IPS/IDS processing with multi-WAN support and scalable performance. The unit fits 1U rack environments in campuses, data centers, or corporate cores and supports hundreds of connected network devices and thousands of clients. EFG integrates with UniFi management for centralized configuration, monitoring, and security policies across large infrastructures.
Key Features :
Dual 25 G SFP28 + 10 G + 2.5 G ports
12.5 Gbps IDS/IPS throughput
Dual hot-swap 150 W power supplies
1.3″ status touchscreen
Technical Specifications :
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | EFG |
| Product Type | Enterprise Cloud Gateway |
| Processor | 18-core ARM v8.2 @ 2 GHz |
| System Memory | 16 GB DDR4 |
| Network Ports | 2×25 G SFP28, 2×10 G SFP+, 2×2.5 G RJ45 |
| IDS/IPS Throughput | 12.5 Gbps |
| Firewall Throughput | 23.5 Gbps |
| Power Supply | Dual hot-swappable 150 W |
| Max Power Consumption | 82 W |
| Rack Mount | 1U standard |
| Dimensions (W×H×D) | 442.4×43.7×325 mm |
| Weight | 6.5 kg |
| Operating Temp | 0-40 °C |
| Certifications | CE, FCC, IC |
