Detailed Specifications

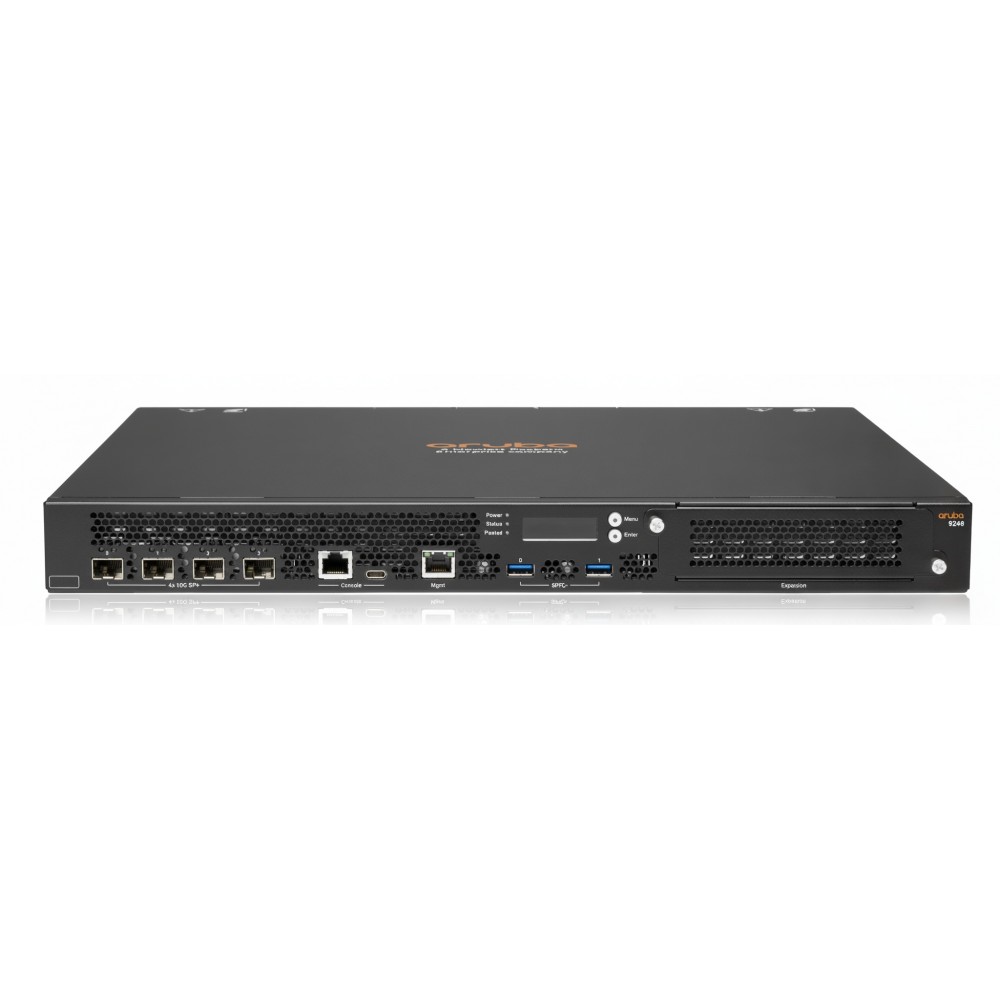

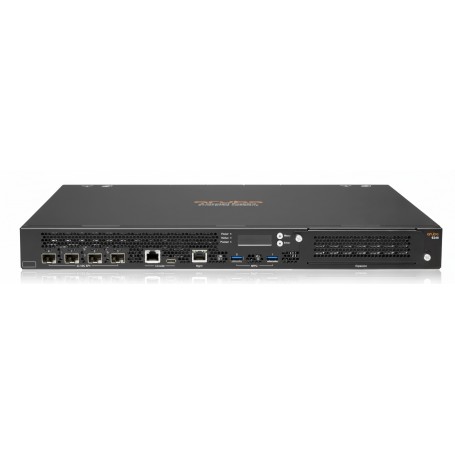

HPE R7J02A Aruba 9240 Campus Gateway (US, FIPS / TAA)
Overview
The HPE R7J02A is a 1-RU campus gateway appliance from the Aruba 9200 series, designed to deliver high-performance, secure access and policy enforcement at the network edge. It supports up to 25 Gb Ethernet connectivity through its 4 SFP28 ports while also allowing for future expansion via an internal slot. The gateway is targeted at large enterprise or mission-critical campus environments, enforcing consistent security policies, segmentation, and advanced Layer-4-7 traffic management. It supports clustering for high availability and integrates with Aruba Central for unified cloud-based control.
Key Features
4 × 25 Gb SFP28 ports for high-speed uplink
5-slot expansion bay for modular interface cards
FIPS 140-2 / TAA-compliant hardware for secure deployments
Stateful L4-7 firewall and policy enforcement engine
Clusterable for redundancy and 24/7 uptime
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | R7J02A |
| Product Type | Campus Gateway / Router |
| Platform | Aruba 9240 (9200 Series) |
| Uplink Ports | 4 × SFP28 (25 Gb) |
| Expansion Slots | 5 (for interface cards) |
| Max AP Support | Up to 2,048 access points |
| Max Devices Supported | Up to 32,000 devices |
| Power Supply | 550 W AC (redundant supported) |
| Power Consumption | ~190 W (typical)×with full load |
| Operating Temperature | 0 °C to 45 °C |
| Dimensions (H × W × D) | ~1.7 in × 17.4 in × 15.6 in |
| Weight | ~18.1 lb |
| Security Features | Built-in stateful firewall, policy enforcement, segmentation |
| Management | Aruba Central, Web UI, CLI |
