Overview

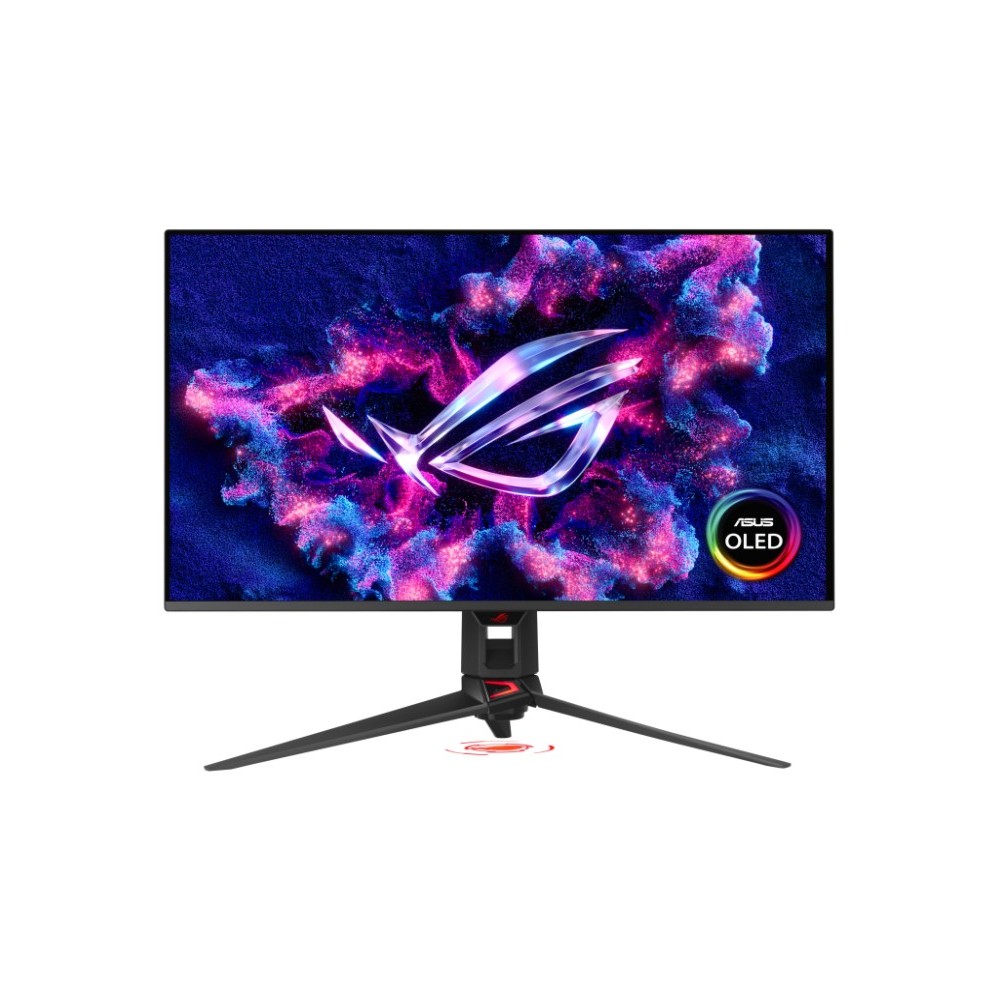

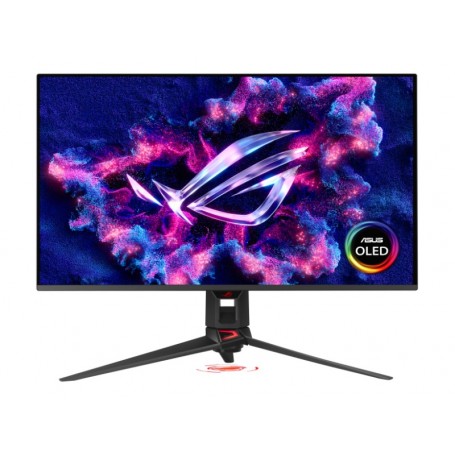

The ASUS ROG Swift OLED PG32UCDM3 is a 31.5-inch Tandem QD-OLED gaming monitor with 3840 × 2160 4K resolution and a 240Hz maximum refresh rate. It combines a 0.03ms GTG response time with high-contrast OLED imaging, HDR support, and advanced connectivity for gaming and content-creation workflows.
Display and Color
The QD-OLED panel provides 99% DCI-P3 coverage, true 10-bit color, and Delta E under 2 color accuracy. It features a 1,500,000:1 typical contrast ratio, 1,000 cd/m² HDR peak brightness, HDR10 and Dolby Vision support, and a BlackShield Film anti-reflection surface.
Gaming Features
PG32UCDM3 supports Adaptive-Sync, AMD FreeSync Premium Pro, and NVIDIA G-SYNC Compatible technologies. Gaming features include Extreme Low Motion Blur, GamePlus, GameVisual, GameFast Input Technology, Shadow Boost, Aspect Control, and AI-assisted Dynamic Crosshair and Dynamic Shadow Boost functions.
OLED Care
ASUS OLED Care Pro includes the Neo Proximity Sensor, which detects when the user moves away from the display and can switch the screen to black to help reduce the risk of image retention. The monitor also incorporates a custom heatsink and BlackShield Film for panel protection.
Connectivity
The monitor provides one DisplayPort 2.1 input, two HDMI 2.1 FRL inputs, and one USB-C port with DisplayPort Alt Mode. USB-C supports up to 90W Power Delivery. Three USB 3.2 Gen 1 Type-A ports provide additional peripheral connectivity.
Ergonomics and Mounting
The stand supports tilt, swivel, and 80mm of height adjustment. A 100 × 100mm VESA mounting interface is provided, along with a 1/4-inch tripod socket and Kensington lock.
Key Features
- 31.5-inch Tandem QD-OLED panel with 3840 × 2160 4K resolution
- 240Hz refresh rate and 0.03ms GTG response time
- 99% DCI-P3, true 10-bit color, and Delta E under 2 accuracy
- DisplayPort 2.1, dual HDMI 2.1, and USB-C with 90W Power Delivery
- BlackShield Film, ASUS OLED Care Pro, Neo Proximity Sensor, and G-SYNC Compatible support
Applications
PG32UCDM3 is designed for competitive gaming, high-resolution PC gaming, esports, photo and video editing, and workstation environments requiring high refresh performance and accurate color reproduction.
DC Supplies Product Note
The PG32UCDM3 combines 4K resolution with a 240Hz refresh rate and a full-bandwidth DisplayPort 2.1 UHBR20 interface. Systems intended to use 4K at 240Hz can take advantage of the 80Gbps DisplayPort connection without requiring display stream compression.
Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | PG32UCDM3 |
| Product Type | Gaming Monitor |
| Series | ROG Swift OLED |
| Model | ROG Swift OLED PG32UCDM Gen3 |
| Panel Size | 31.5 inches |
| Panel Type | QD-OLED |
| Panel Technology | Tandem QD-OLED |
| Display Surface | Anti-Reflection with BlackShield Film |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.182mm |
| Color Coverage | 99% DCI-P3 |
| Color Depth | True 10-bit, 1073.7M colors |
| Color Accuracy | Delta E under 2 |
| Brightness | 1,000 cd/m² HDR peak |
| Contrast Ratio | 1,500,000:1 typical |
| Response Time | 0.03ms GTG |
| Refresh Rate | 240Hz |
| HDR Support | HDR10, Dolby Vision |
| VRR Technology | Adaptive-Sync, AMD FreeSync Premium Pro, NVIDIA G-SYNC Compatible |
| DisplayPort | 1 × DisplayPort 2.1 UHBR20 |
| HDMI | 2 × HDMI 2.1 FRL |
| USB-C | 1 × USB-C with DisplayPort Alt Mode |
| USB-C Power Delivery | 90W |
| USB Hub | 3 × USB 3.2 Gen 1 Type-A |
| KVM Switch | Yes |
| VESA Mount | 100 × 100mm |
| Height Adjustment | 0–80mm |
| Power Consumption | Less than 42W |
| Input Voltage | 100–240V, 50/60Hz |
| Speakers | None |
| Net Weight | 19.18 lbs |
| Warranty | 3 years, including panel burn-in |
FAQs
What resolution does the ASUS PG32UCDM3 support?
The PG32UCDM3 supports 3840 × 2160 4K UHD resolution.
What is the maximum refresh rate?
The monitor supports a maximum refresh rate of 240Hz.
What type of panel does the PG32UCDM3 use?
The PG32UCDM3 uses a 31.5-inch Tandem QD-OLED panel with an anti-reflection BlackShield Film surface.
Does the PG32UCDM3 support DisplayPort 2.1?
Yes. It provides one DisplayPort 2.1 UHBR20 input with full 80Gbps bandwidth.
Does the PG32UCDM3 support USB-C Power Delivery?
Yes. The USB-C port supports DisplayPort Alt Mode and up to 90W Power Delivery.
