Overview

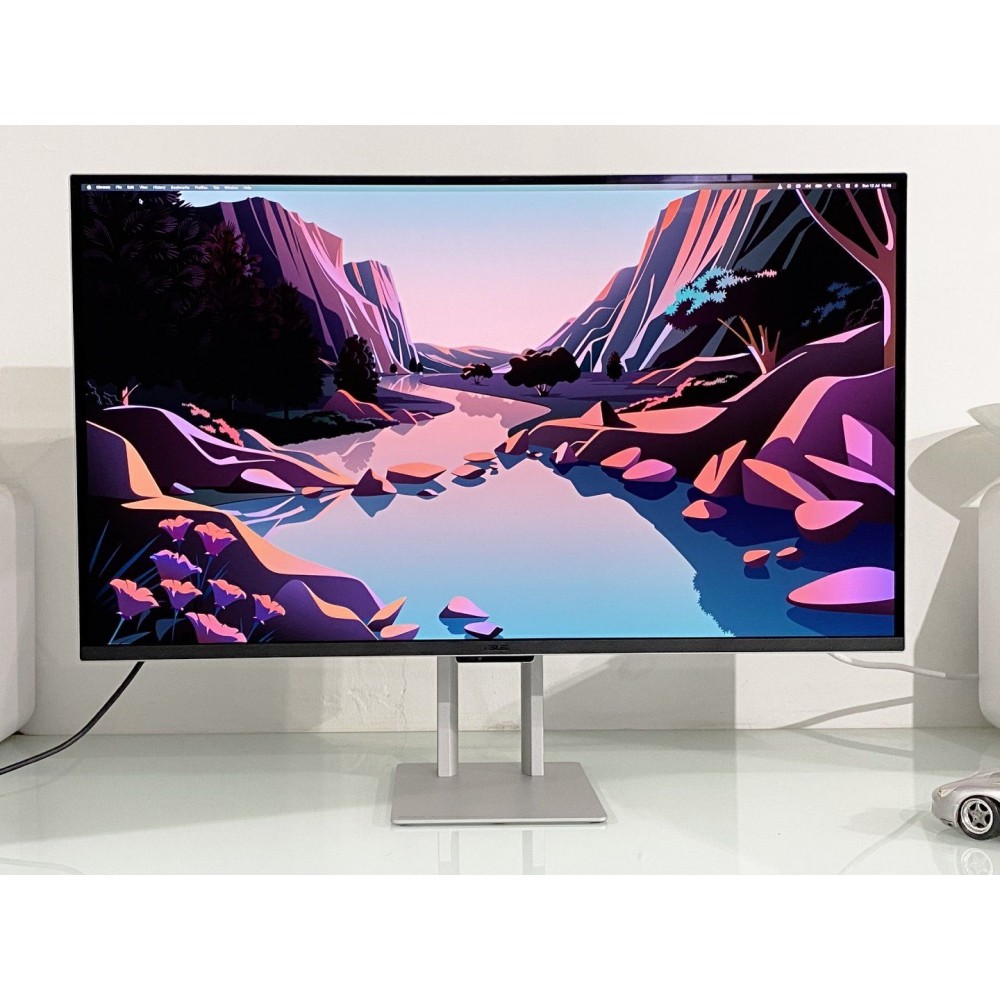

The ASUS ProArt Display OLED PA32UCDM is a 31.5-inch professional monitor featuring a QD-OLED panel, 3840 × 2160 4K resolution, 240Hz refresh rate, and 0.1ms GTG response time. It is designed for professional content creation, color-critical workflows, and high-refresh-rate applications.
Display and Color
The QD-OLED panel provides 100% sRGB and 99% DCI-P3 color coverage, 10-bit color depth, and Delta E under 1 color accuracy. It supports Dolby Vision, HDR10, and HLG, with HDR peak brightness up to 1,000 cd/m² and a 1,500,000:1 contrast ratio.
Professional Features
PA32UCDM supports ASUS ProArt Hardware Calibration, ProArt Palette, QuickFit Plus, HDR Preview, PIP/PBP, Adaptive-Sync, and DisplayWidget Center. ASUS OLED Care provides screen-saver functionality for OLED display management.
Connectivity
The monitor provides two Thunderbolt 4 ports with daisy-chain support and up to 96W USB-C Power Delivery. Connectivity also includes HDMI 2.1 FRL and a USB 3.2 Gen 2 hub with Type-C and Type-A ports.
Ergonomics and Mounting
The adjustable stand supports tilt, pivot, and up to 130 mm of height adjustment. The monitor supports 100 × 100 mm VESA mounting and includes ambient light and proximity sensors.
Key Features
- 31.5-inch QD-OLED panel with 3840 × 2160 4K resolution
- 240Hz refresh rate and 0.1ms GTG response time
- 100% sRGB and 99% DCI-P3 color coverage with Delta E under 1
- Dual Thunderbolt 4 ports with daisy-chain support and 96W Power Delivery
- Dolby Vision, HDR10, HLG, and ASUS ProArt Hardware Calibration
Applications
PA32UCDM is suited to professional photography, video production, graphic design, color grading, HDR content creation, and workstation environments requiring high-resolution imaging and Thunderbolt connectivity.
DC Supplies Product Note
The combination of 4K QD-OLED imaging, dual Thunderbolt 4, daisy-chain support, and 96W Power Delivery makes PA32UCDM suitable for professional workstation configurations where display connectivity and host-device charging are required through the monitor.
Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | PA32UCDM |
| Product Type | Professional Monitor |
| Panel Size | 31.5 inches |
| Panel Type | QD-OLED |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Pixel Density | 140 PPI |
| Color Coverage | 100% sRGB, 99% DCI-P3 |
| Color Depth | 10-bit, 1073.7M colors |
| Color Accuracy | Delta E under 1 |
| Brightness | 250 cd/m² typical; 1,000 cd/m² HDR peak |
| Contrast Ratio | 1,500,000:1 |
| Response Time | 0.1ms GTG |
| Refresh Rate | Up to 240Hz |
| HDR Support | Dolby Vision, HLG, HDR10 |
| Thunderbolt | 2 × Thunderbolt 4, daisy-chain support |
| HDMI | 1 × HDMI 2.1 FRL |
| USB Hub | 1 × USB 3.2 Gen 2 Type-C, 1 × USB 3.2 Gen 2 Type-A |
| USB-C Power Delivery | 96W |
| Speakers | 2 × 3W |
| VESA Mount | 100 × 100 mm |
| Height Adjustment | 0–130 mm |
| Power Consumption | Less than 32W |
| Input Voltage | 100–240V, 50/60Hz |
| Net Weight | 19.84 lbs |
FAQs
What resolution does the ASUS PA32UCDM support?
The PA32UCDM supports 3840 × 2160 4K UHD resolution.
What is the maximum refresh rate?
The PA32UCDM supports a maximum refresh rate of 240Hz.
Does the PA32UCDM support Thunderbolt 4?
Yes. It provides two Thunderbolt 4 ports with daisy-chain support and up to 96W USB-C Power Delivery.
What color gamut does the PA32UCDM support?
The monitor provides 100% sRGB and 99% DCI-P3 color coverage with Delta E under 1 accuracy.
Does the PA32UCDM support HDR?
Yes. It supports Dolby Vision, HDR10, and HLG, with HDR peak brightness up to 1,000 cd/m².
