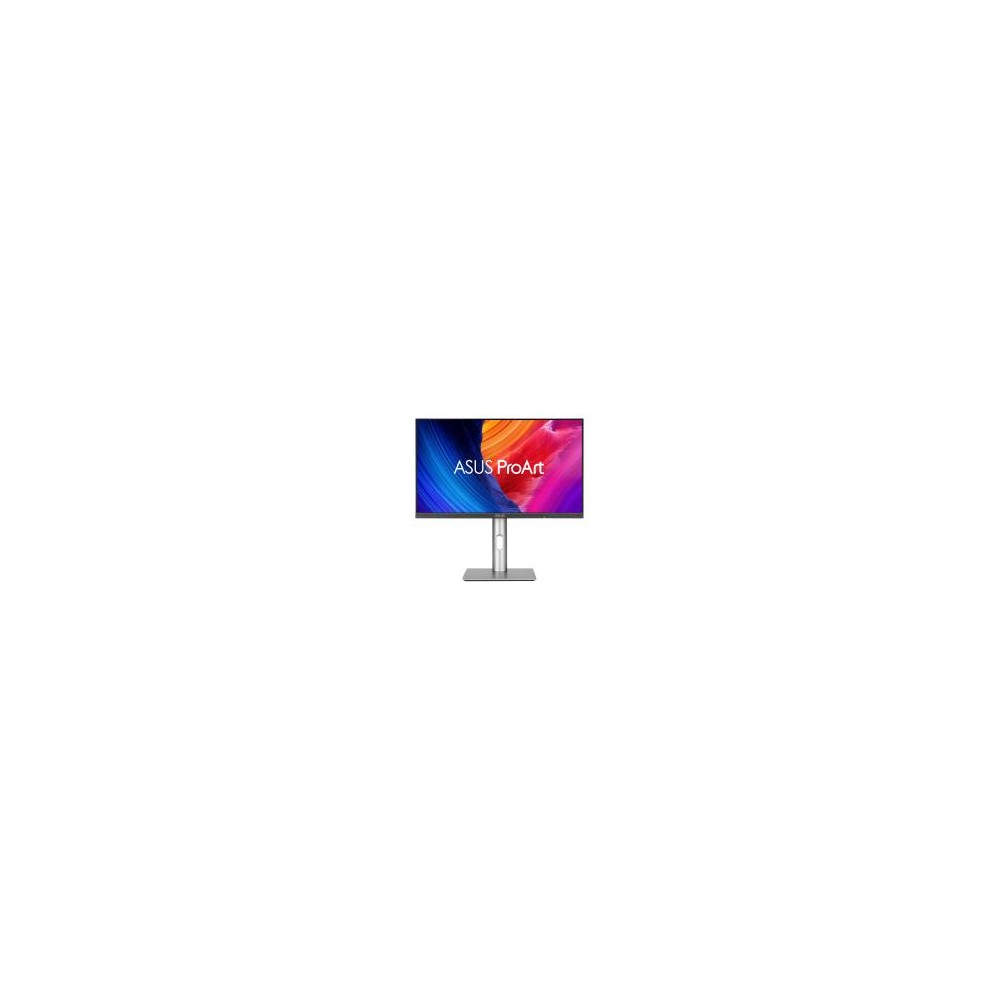

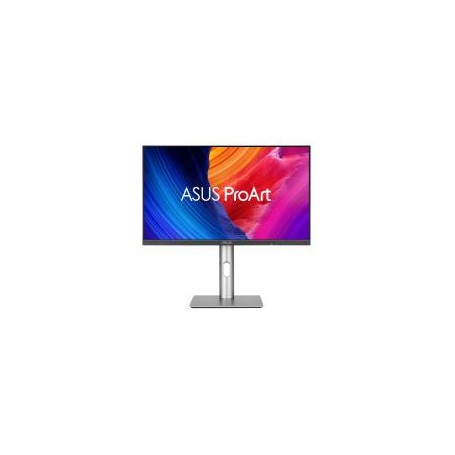

Overview
The ASUS PA27JCV is a 27-inch 5K professional monitor with an IPS panel and native 5120 × 2880 resolution. It is designed for professional content creation and detailed desktop workflows, providing 218 PPI, 100% sRGB, 95% Adobe RGB, and 99% DCI-P3 color coverage. The display is Calman Verified and factory calibrated for Delta E less than 2 color accuracy.
Display and Color
The monitor provides 400 cd/m² typical brightness, up to 500 cd/m² HDR peak brightness, a 1500:1 typical contrast ratio, 5ms GTG response time, and a 60Hz maximum refresh rate. HDR10 and VESA DisplayHDR 500 are supported. The LuxPixel Anti-Glare Low-Reflection display surface helps reduce reflections while maintaining image visibility.
Professional Features
PA27JCV includes ProArt Preset color modes, ProArt Palette color adjustment, ProArt Chroma Tune, QuickFit Plus, Picture-in-Picture, Picture-by-Picture, Adaptive-Sync, and an integrated Auto KVM function. Ambient light and backlight sensors support automatic adjustment of display conditions for professional workflows.
Connectivity
The PA27JCV provides one DisplayPort 1.4 input, one HDMI 2.1 input, and USB-C connectivity with DisplayPort Alt Mode. USB-C supports up to 96W Power Delivery and can provide display, data, and power functions through a single connection. The integrated USB hub provides one USB 3.2 Gen 1 Type-C port and three USB 3.2 Gen 1 Type-A ports.
Ergonomics and Mounting
The supplied stand supports tilt, swivel, pivot, and up to 130 mm of height adjustment. A 100 × 100 mm VESA mounting interface is provided for compatible monitor arms and mounting hardware.
Key Features
- 27-inch IPS panel with native 5120 × 2880 5K resolution
- 100% sRGB, 95% Adobe RGB, and 99% DCI-P3 color coverage
- Delta E less than 2 color accuracy with Calman Verified certification
- USB-C connectivity with up to 96W Power Delivery
- Built-in Auto KVM for switching between two connected computers
Applications
The PA27JCV is suited to professional photo editing, video production, graphic design, content creation, and other workflows where high pixel density, 5K resolution, and wide color-space coverage are important.
DC Supplies Product Note
The PA27JCV is a strong option for USB-C workstation deployments where a single connection is preferred for display, data, and laptop power. Its 96W USB-C Power Delivery capability is subject to the power requirements and USB-C capabilities of the connected host device.
Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | PA27JCV |
|---|
| Product Type | Professional Monitor |
|---|
| Series | ProArt Display |
|---|
| Panel Size | 27 inches |
|---|
| Panel Type | IPS |
|---|
| Display Surface | Anti-Glare, Low-Reflection |
|---|
| Resolution | 5120 × 2880 |
|---|
| Aspect Ratio | 16:9 |
|---|
| Pixel Density | 218 PPI |
|---|
| Pixel Pitch | 0.116 mm |
|---|
| Brightness | 400 cd/m² typical |
|---|
| HDR Peak Brightness | 500 cd/m² |
|---|
| Contrast Ratio | 1500:1 typical; 3000:1 maximum |
|---|
| Color Coverage | 100% sRGB; 95% Adobe RGB; 99% DCI-P3 |
|---|
| Display Colors | 1.0737 billion, 10-bit |
|---|
| Color Accuracy | Delta E < 2 |
|---|
| Refresh Rate | 60Hz maximum |
|---|
| Response Time | 5ms GTG |
|---|
| HDR | HDR10; VESA DisplayHDR 500 |
|---|
| Viewing Angle | 178° horizontal / 178° vertical |
|---|
| DisplayPort | 1 × DisplayPort 1.4 |
|---|
| HDMI | 1 × HDMI 2.1 |
|---|
| USB-C | 1 × USB-C with DisplayPort Alt Mode |
|---|
| USB-C Power Delivery | 96W |
|---|
| USB Hub | 1 × USB 3.2 Gen 1 Type-C; 3 × USB 3.2 Gen 1 Type-A |
|---|
| Speakers | 2 × 2W |
|---|
| Auto KVM | Yes |
|---|
| Ambient Light Sensor | Yes |
|---|
| VESA Mount | 100 × 100 mm |
|---|
| Height Adjustment | 130 mm |
|---|
| Power Input | 100–240V, 50/60Hz |
|---|
| Power Consumption | 31.04W |
|---|
| Operating Temperature | 0°C to 40°C |
|---|
| Dimensions with Stand | 24.10 × 21.19 × 8.46 inches (W × H × D) |
|---|
| Dimensions without Stand | 24.10 × 14.29 × 1.74 inches (W × H × D) |
|---|
| Net Weight with Stand | 13.03 lbs |
|---|
| Net Weight without Stand | 9.13 lbs |
|---|
FAQs
What resolution does the ASUS PA27JCV support?
The PA27JCV has a native 5120 × 2880 5K resolution and supports a maximum refresh rate of 60Hz.
What color coverage does the PA27JCV provide?
The monitor provides 100% sRGB, 95% Adobe RGB, and 99% DCI-P3 color coverage with Delta E less than 2 color accuracy.
Does the PA27JCV support USB-C Power Delivery?
Yes. The USB-C connection supports DisplayPort Alt Mode and up to 96W Power Delivery for compatible host devices.
Does the PA27JCV have a KVM switch?
Yes. The monitor includes an Auto KVM function designed to allow switching and control between two connected computers using a single keyboard and mouse.
Can the PA27JCV be mounted on a monitor arm?
Yes. The monitor provides a 100 × 100 mm VESA mounting interface.
