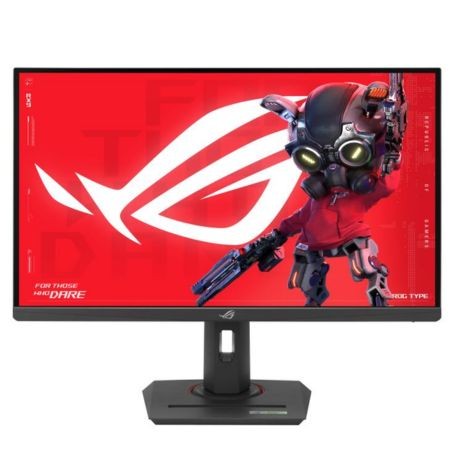

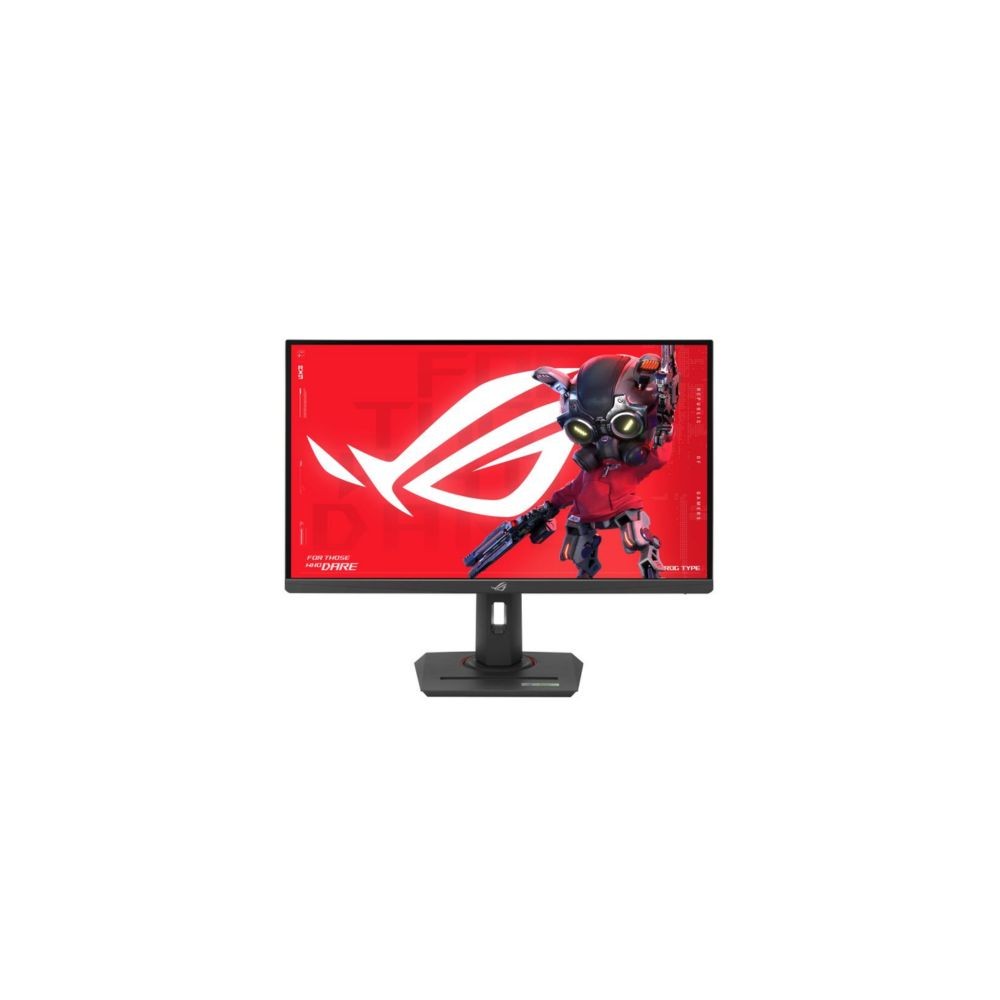

ASUS ROG Strix XG32UCG 31.5-inch 4K 160Hz Fast IPS Dual-Mode Gaming Monitor
The ASUS ROG Strix XG32UCG is a 31.5-inch Fast IPS gaming monitor with 3840 × 2160 4K resolution and Dual Mode operation. It supports up to 160Hz at 4K UHD or 320Hz at FHD, with a 1ms GTG response time and 0.3ms minimum response specification. The monitor also provides HDR10, 95% DCI-P3 coverage, Adaptive-Sync, HDMI 2.1, DisplayPort 1.4, and USB-C connectivity.
Key Features
- 31.5-inch Fast IPS panel with 3840 × 2160 4K UHD resolution and up to 160Hz refresh rate.
- Dual Mode supports 4K at up to 160Hz or FHD at up to 320Hz.
- 1ms GTG response time with a 0.3ms minimum response specification.
- 95% DCI-P3 coverage, 10-bit color, HDR10, and VESA DisplayHDR 400 certification.
- DisplayPort 1.4, HDMI 2.1, and USB-C with DisplayPort Alt Mode and 15W Power Delivery.
Display Performance
The XG32UCG uses a 31.5-inch Fast IPS panel with a 16:9 aspect ratio, 3840 × 2160 resolution, 0.182mm pixel pitch, and anti-glare surface. ASUS specifies 350 cd/m² typical brightness and 400 cd/m² peak HDR brightness, with a 1000:1 typical contrast ratio.
The display supports 95% DCI-P3 and 130% sRGB coverage, 10-bit color with 1,073.7 million colors, and 178° horizontal and vertical viewing angles. HDR10 and VESA DisplayHDR 400 support are specified.
Dual Mode Gaming
Dual Mode allows the XG32UCG to switch between 4K UHD at up to 160Hz and FHD at up to 320Hz. This provides a choice between the monitor's native high-resolution mode and a higher-refresh FHD mode.
Gaming features include Extreme Low Motion Blur, ELMB Sync, Adaptive-Sync, GamePlus, GameVisual, GameFast Input technology, Shadow Boost, and Aspect Control. DisplayWidget Center provides software-based monitor controls.
Connectivity
The XG32UCG provides one DisplayPort 1.4 HBR3 input, one HDMI 2.1 FRL input, and one USB-C port with DisplayPort Alt Mode. The USB-C port supports 15W Power Delivery. A headphone jack is also included, while the monitor does not have built-in speakers.
ASUS specifies AMD FreeSync Premium and G-SYNC Compatible support, along with VESA AdaptiveSync Display certifications for 160Hz and 320Hz operation.
Ergonomic Design
The stand provides tilt adjustment from +20° to -5°, swivel adjustment of ±25°, and 110mm of height adjustment. A 100 × 100mm VESA mounting interface, Kensington lock, Aura Sync lighting, and 1/4-inch tripod socket are also provided.
DC Supplies Product Note
The XG32UCG is specified for less than 30W power consumption during operation, less than 0.5W in standby, and less than 0.3W when powered off. It accepts 100–240V, 50/60Hz input power. USB-C provides DisplayPort Alt Mode and 15W Power Delivery.
Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | XG32UCG |
| Product Type | Gaming Monitor |
| Panel Size | 31.5 inches |
| Panel Type | Fast IPS |
| Aspect Ratio | 16:9 |
| Resolution | 3840 × 2160 |
| UHD Refresh Rate | Up to 160Hz |
| FHD Refresh Rate | Up to 320Hz |
| Dual Mode | 4K 160Hz / FHD 320Hz |
| Response Time | 1ms GTG; 0.3ms minimum |
| Pixel Pitch | 0.182mm |
| Color Space | 95% DCI-P3; 130% sRGB |
| Color Depth | 10-bit |
| Typical Brightness | 350 cd/m² |
| HDR Peak Brightness | 400 cd/m² |
| Contrast Ratio | 1000:1 typical |
| HDR Support | HDR10 |
| Viewing Angle | 178° horizontal / 178° vertical |
| DisplayPort | 1 × DisplayPort 1.4 HBR3 |
| HDMI | 1 × HDMI 2.1 FRL |
| USB-C | 1 × USB-C with DisplayPort Alt Mode |
| USB-C Power Delivery | 15W |
| Audio | Headphone jack; no built-in speakers |
| VESA Mount | 100 × 100mm |
| Power Consumption | <30W |
| Power Input | 100–240V, 50/60Hz |
| Dimensions with Stand | 71.7 × 57.4 × 24.6cm |
| Weight with Stand | 9.9kg |
Frequently Asked Questions
What resolution does the ASUS XG32UCG support?
The XG32UCG has a native 3840 × 2160 4K UHD resolution.
What are the Dual Mode refresh rates?
Dual Mode supports up to 160Hz at 4K UHD and up to 320Hz at FHD resolution.
What type of panel does the XG32UCG use?
It uses a 31.5-inch Fast IPS panel with an anti-glare surface.
Does the XG32UCG support HDMI 2.1?
Yes. The monitor includes one HDMI 2.1 FRL input.
Does the monitor support USB-C?
Yes. The USB-C port supports DisplayPort Alt Mode and up to 15W Power Delivery.
Can the XG32UCG be VESA mounted?
Yes. It supports a 100 × 100mm VESA mounting interface.
