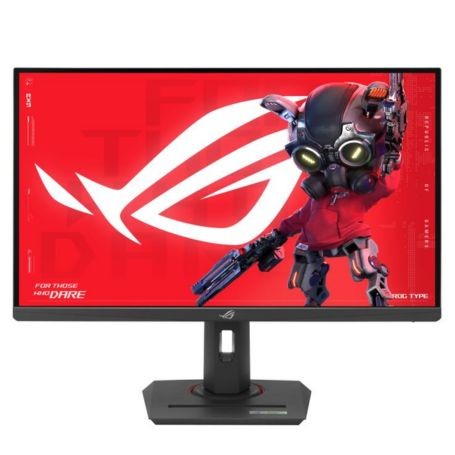

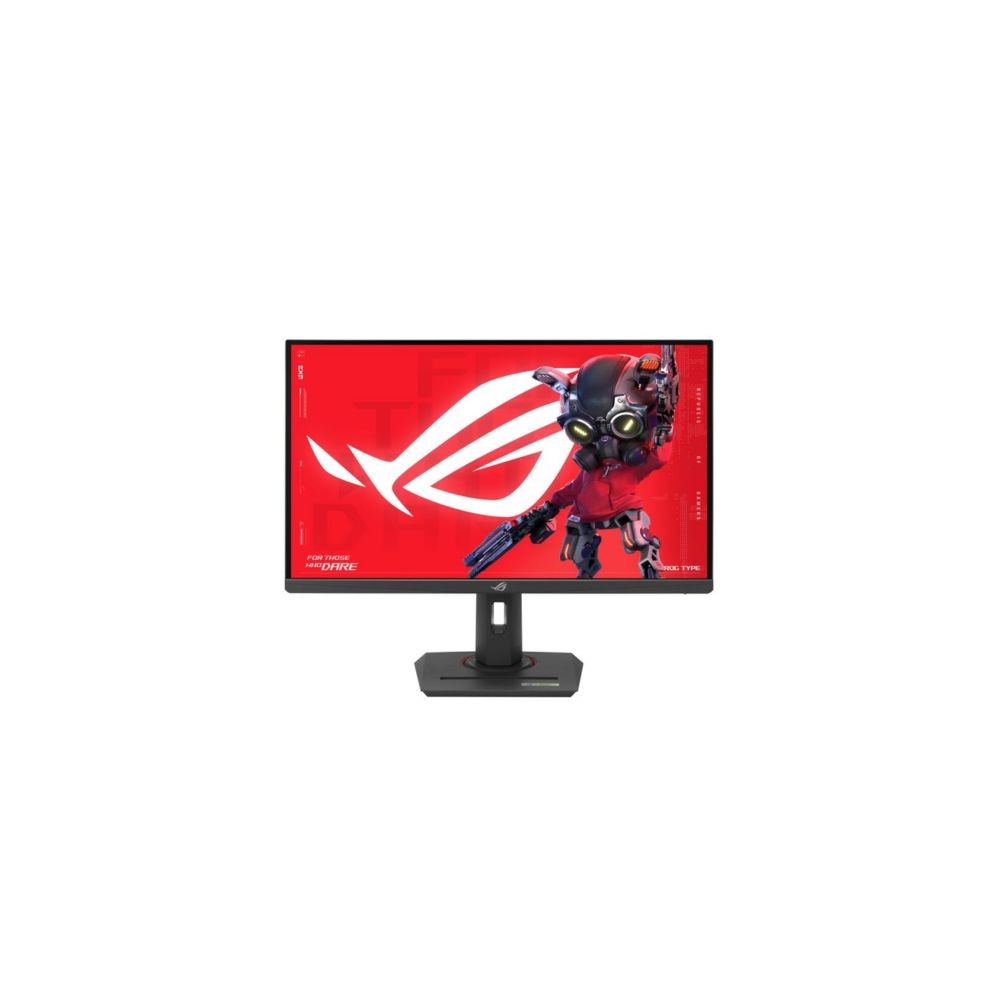

ASUS ROG Strix XG27UCGR 27-inch 4K 162Hz Fast IPS Dual-Mode Gaming Monitor
The ASUS ROG Strix XG27UCGR is a 27-inch Fast IPS gaming monitor with 3840 × 2160 4K resolution and a dual-mode design that supports up to 162Hz at 4K or 485Hz at FHD resolution. It combines a 0.3ms minimum response time, 95% DCI-P3 coverage, HDR10 support, adaptive synchronization, and USB-C connectivity.
Key Features
- 27-inch Fast IPS panel with 3840 × 2160 4K UHD resolution and 162Hz maximum UHD refresh rate.
- Dual Mode switches between 4K at 162Hz and FHD at 485Hz for different gaming requirements.
- 0.3ms minimum response time with 1ms GTG specification for fast-moving content.
- 95% DCI-P3 and 130% sRGB color coverage with 10-bit color support and HDR10.
- DisplayPort 1.4, HDMI 2.1, and USB-C with DisplayPort Alt Mode and 15W Power Delivery.
Display Performance
The XG27UCGR uses a 27-inch Fast IPS panel with a 16:9 aspect ratio, 3840 × 2160 native resolution, 0.155mm pixel pitch, and anti-glare surface. ASUS specifies 400 cd/m² typical brightness, 400 cd/m² peak HDR brightness, and a 1300:1 typical contrast ratio.
The display supports 95% DCI-P3 and 130% sRGB color coverage, 10-bit color with 1,073.7 million colors, and 178° horizontal and vertical viewing angles. HDR10 support and VESA DisplayHDR 400 certification are also specified.
Dual-Mode Gaming
The monitor's Dual Mode functionality allows users to switch between 4K at up to 162Hz and FHD at up to 485Hz. This provides a choice between higher-resolution gaming and a substantially higher refresh rate for applications that prioritize frame rate.
ASUS also specifies Extreme Low Motion Blur, ELMB Sync, Adaptive-Sync, GamePlus, GameVisual, GameFast Input technology, Shadow Boost, Aspect Control, AI Visual, Dynamic Crosshair, and Dynamic Shadow Boost.
Connectivity
The XG27UCGR provides one DisplayPort 1.4 HBR3 input, one HDMI 2.1 FRL input, and one USB-C port supporting DisplayPort Alt Mode. The USB-C port provides up to 15W Power Delivery. A headphone connection is also included.
The monitor supports G-SYNC Compatible operation and AMD FreeSync Premium, providing variable-refresh-rate functionality with compatible systems.
Ergonomic Design
The included stand supports tilt from +20° to -5°, swivel adjustment of ±40°, pivot adjustment of ±90°, and 110mm of height adjustment. A 100 × 100mm VESA mounting interface and 1/4-inch tripod socket are provided.
DC Supplies Product Note
The XG27UCGR is specified for 100–240V, 50/60Hz input power with power consumption below 30W. Its USB-C port supports DisplayPort Alt Mode and 15W Power Delivery. The dual-mode refresh specifications should be considered when selecting the appropriate display mode for the connected system and workload.
Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | XG27UCGR |
| Product Type | Gaming Monitor |
| Model Series | ROG Strix XG27UCG Gen2 |
| Panel Size | 27 inches |
| Panel Type | Fast IPS |
| Aspect Ratio | 16:9 |
| Resolution | 3840 × 2160 |
| UHD Refresh Rate | Up to 162Hz |
| FHD Refresh Rate | Up to 485Hz |
| Dual Mode | 4K 162Hz / FHD 485Hz |
| Response Time | 1ms GTG; 0.3ms minimum |
| Pixel Pitch | 0.155mm |
| Color Space | 95% DCI-P3; 130% sRGB |
| Color Depth | 10-bit |
| Typical Brightness | 400 cd/m² |
| HDR Peak Brightness | 400 cd/m² |
| Contrast Ratio | 1300:1 typical |
| HDR Support | HDR10 |
| Viewing Angle | 178° horizontal / 178° vertical |
| DisplayPort | 1 × DisplayPort 1.4 HBR3 |
| HDMI | 1 × HDMI 2.1 FRL |
| USB-C | 1 × USB-C with DisplayPort Alt Mode |
| USB-C Power Delivery | 15W |
| VESA Mount | 100 × 100mm |
| Power Consumption | <30W |
| Power Input | 100–240V, 50/60Hz |
| Dimensions with Stand | 61.4 × 50.3 × 18.8cm |
| Weight with Stand | 6.8kg |
Frequently Asked Questions
What resolution does the ASUS XG27UCGR support?
The XG27UCGR has a native 3840 × 2160 4K UHD resolution.
What are the two Dual Mode settings?
The monitor supports 4K at up to 162Hz and FHD at up to 485Hz.
What type of panel does the XG27UCGR use?
It uses a 27-inch Fast IPS panel with an anti-glare surface.
Does the XG27UCGR support HDMI 2.1?
Yes. The monitor includes one HDMI 2.1 FRL input.
Does it have USB-C connectivity?
Yes. The USB-C port supports DisplayPort Alt Mode and up to 15W Power Delivery.
Can the monitor be VESA mounted?
Yes. It supports a 100 × 100mm VESA mounting interface.
